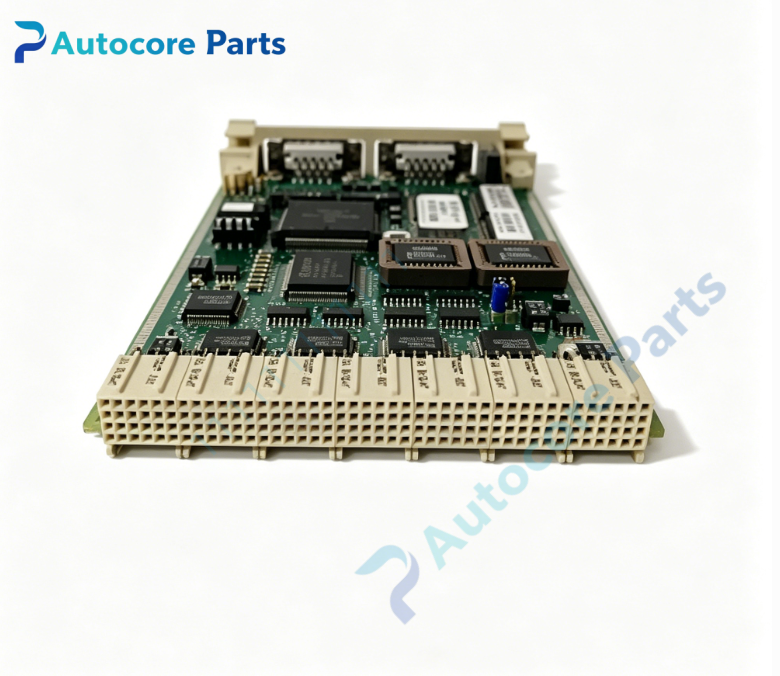

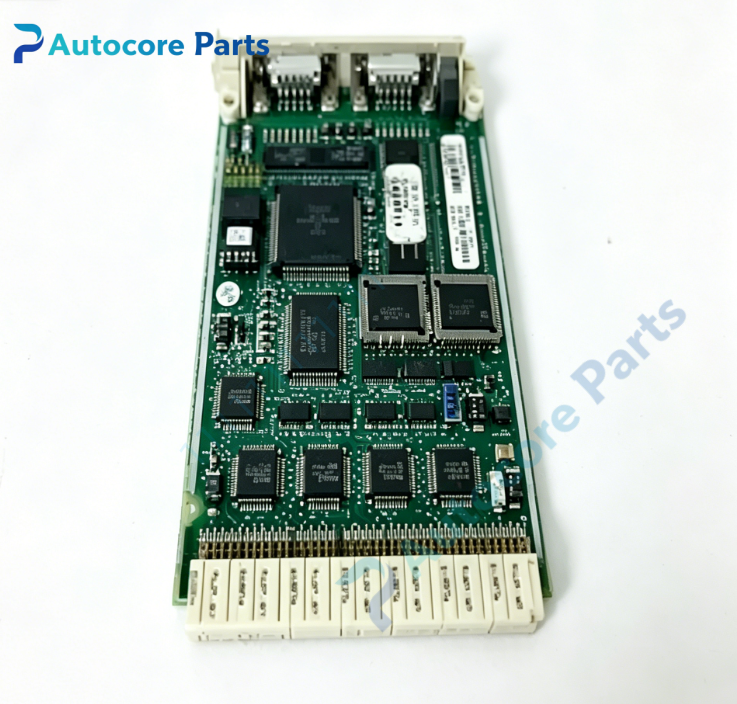

ABB CI535V30 3BSE022162R1 SPA Bus Server Communication Sub‑Module

Technical Specifications

Model: CI535V30

Part Number: 3BSE022162R1

Brand: ABB

Product Type: SPA bus server communication sub‑module

Supported Bus: SPA bus

Maximum Nodes: Up to 50 nodes on SPA bus network

Physical Interface: Dual D‑Sub connector

Backplane Interface: Advant Master internal sub‑bus

Installation: Plug‑in sub‑slot on controller main board

Compatible System: ABB Advant Master DCS

Operating Temperature: ‑20℃ ~ +70℃

Protection Class: IP20

Net Weight: 0.15 kg

Core Function: Serve as SPA bus server, realize data exchange and node management for SPA field devices

Product Details

The CI535V30 3BSE022162R1 is a SPA Bus Server Unit for ABB Advant Master DCS platform, it belongs to compact Node‑Management Communication Sub‑Card, which is inserted into the sub‑slot of main controller board without occupying extra rack slot resources.

This module acts as server node on SPA bus network, supporting maximum 50 connected field nodes. It undertakes bus scheduling, data forwarding and node status monitoring tasks between Advant main controller and SPA‑compatible field modules. It converts controller internal bus data into SPA bus telegram, and transmits field device feedback signals back to main control unit, ensuring real‑time interaction of process data across the whole SPA network.

Front‑panel dual D‑Sub interfaces are used for SPA bus cable connection. LED status indicators display bus running condition, node online status and communication fault information. Built‑in hardware diagnosis function can detect node offline, bus short‑circuit and transmission abnormality, fault alarms will be uploaded to DCS host through backplane bus, facilitating rapid fault location during site maintenance work.

Adopting sub‑module plug‑in structure, it features compact layout and convenient replacement operation. Widely deployed in thermal power, pulp‑paper and petrochemical legacy Advant Master automation projects. It is essential communication hardware for SPA bus network construction, field node expansion and defective communication sub‑card replacement for old‑generation Advant DCS systems.
