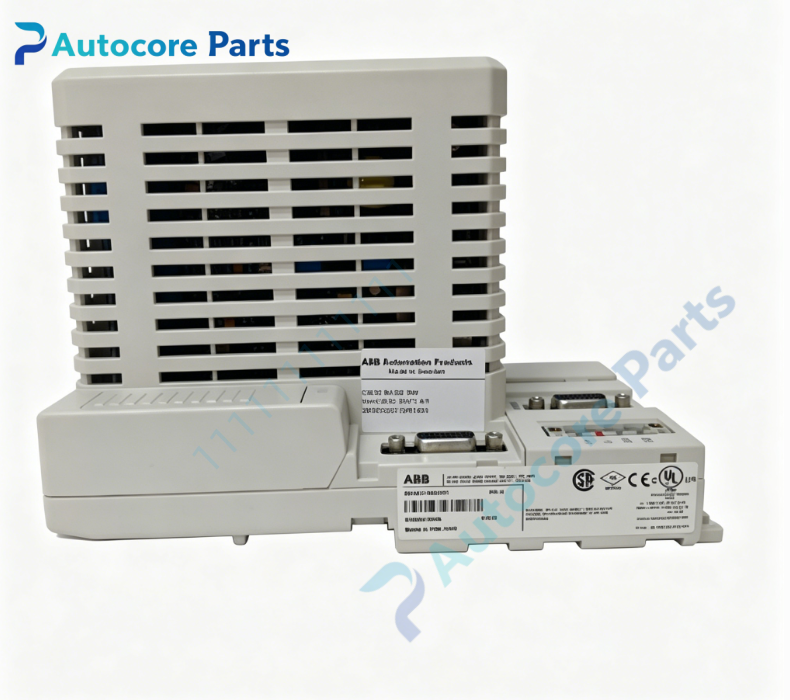

ABB CI830 3BSE013252R1 Communication Interface Module

Technical Specifications

• Model: CI830

• Part Number: 3BSE013252R1

• Brand: ABB

• Product Type: Remote I/O fieldbus communication module

• Bus Interface: 9‑pin D‑Sub connector

• Backplane Bus: CEX‑Bus for AC800M controller

• Supported I/O Station: S100 remote I/O series

• Max Connection Quantity: Up to 8 S100 I/O stations

• Transmission Distance: Max 600m under corresponding baud rate

• Feature: Support hot‑swap operation

• Power Supply: Powered by CEX‑Bus backplane bus

• Operating Temperature: 0℃ ~ +60℃

• Protection Class: IP20

• Weight: 0.41kg

• Mounting: Rack‑slot installation

• Compatible System: ABB AC800M DCS, System 800xA

• Core Function: Realize data transmission between AC800M controller and S100 remote I/O stations, complete collection and output of field process signals

Product Details

The CI830 3BSE013252R1 is compact Remote I/O Communication Module for ABB AC800M DCS platform, it serves as stable AC800M Fieldbus Adapter Unit for connecting S100 distributed remote I/O stations.

This module is specially designed for S100 remote I/O system, it can connect up to 8 S100 I/O stations. It transmits digital and analog field signals between distributed I/O devices and AC800M main CPU through fieldbus and CEX‑Bus backplane bus. Hot‑swap function allows module replacement without powering off the control rack, effectively shortens equipment maintenance downtime.

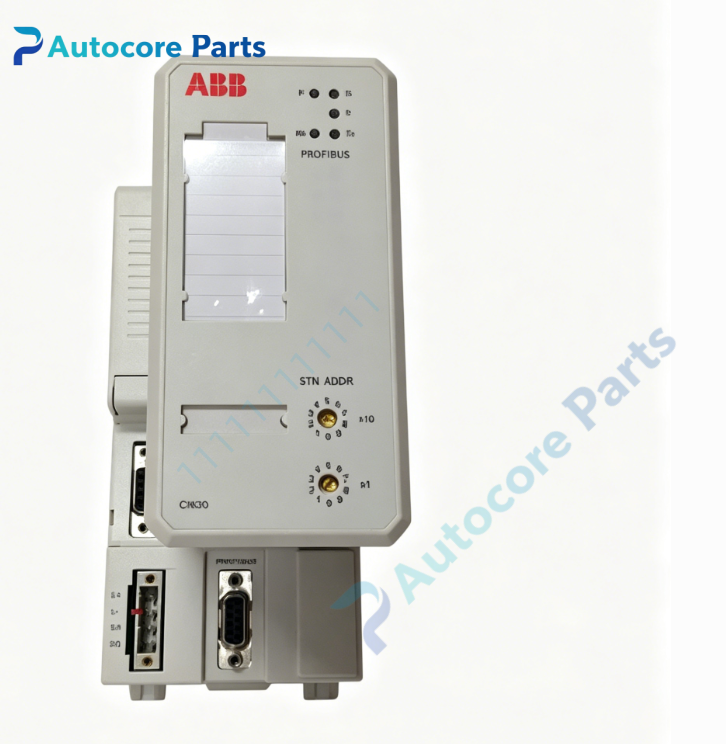

Front‑panel LED indicators display module power supply status, CEX‑Bus bus and fieldbus link condition. Built‑in hardware self‑diagnosis can detect bus short‑circuit, open‑circuit and module internal faults, fault alarm information will be uploaded to DCS operator workstation. Industrial‑grade circuit design meets strict EMC anti‑interference requirements of industrial control cabinet environment.

Adopting standard rack‑slot mechanical structure, it can be installed together with CPU, other communication modules and I/O modules in one control rack. Widely applied in thermal power, petrochemical, pulp‑paper and metallurgy industries. It is essential communication hardware for S100 remote I/O expansion, fieldbus network reconstruction and defective CI830 communication module replacement for legacy AC800M automation projects.
