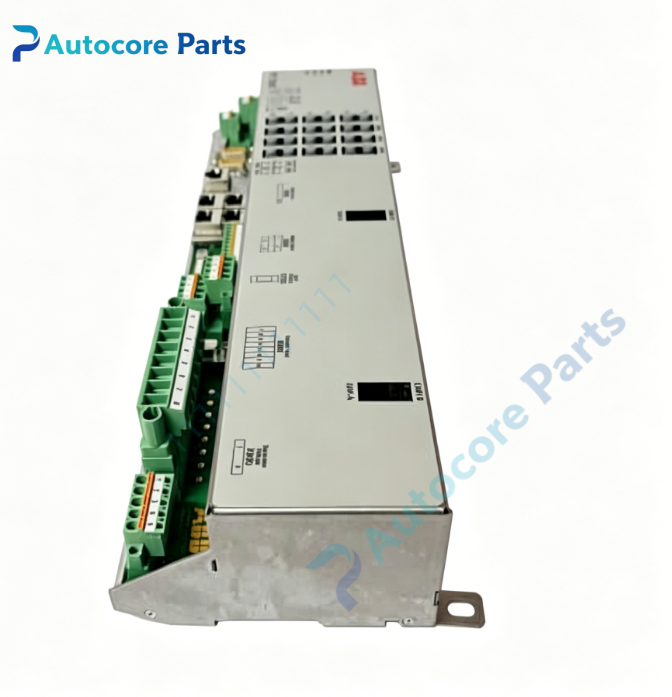

ABB PCD230A 3BHE022291R0101 Communication Control Measurement Module

Technical Specifications

Model: PCD230A

Part Number: 3BHE022291R0101

Brand: ABB

Product Type: Communication control measurement module

Matching System: ABB AC800PEC, UNITROL6000 / UNITROL6800 generator excitation system

Power Supply: 24VDC, 9‑36VDC wide range, dual redundant power input

Power Consumption: ≤5W

Communication Interface: 4‑port Ethernet switch, RS232, Profibus‑DP, Modbus RTU

I/O Resource: 6 digital inputs, 3 digital outputs, 4 analog measurement inputs, 2 analog outputs

Installation Method: Standard rack mounting

Operating Temperature: 0℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 1.53kg

Dimension: 373mm × 142mm × 73.5mm

Compatible System: ABB AC800PEC, UNITROL series excitation system

Core Function: Complete signal measurement, protocol conversion and data interaction, realize data transmission between excitation controller and plant DCS/SCADA system, support generator excitation closed‑loop regulation and status monitoring.

Product Details

The PCD230A 3BHE022291R0101 is core PEC80‑CCM communication control measurement module for ABB AC800PEC and UNITROL excitation system.

This PCD230A module integrates rich I/O resources and multi‑protocol communication interfaces, it undertakes signal collection and data forwarding tasks inside excitation cabinet.

It can realize seamless data exchange between excitation regulator and upper‑level monitoring system, upload real‑time operating data, working parameters and fault alarm information of generator excitation system.

Multiple communication ports meet diverse on‑site access requirements, dual redundant power supply improves the stability of long‑term operation of power plant equipment.

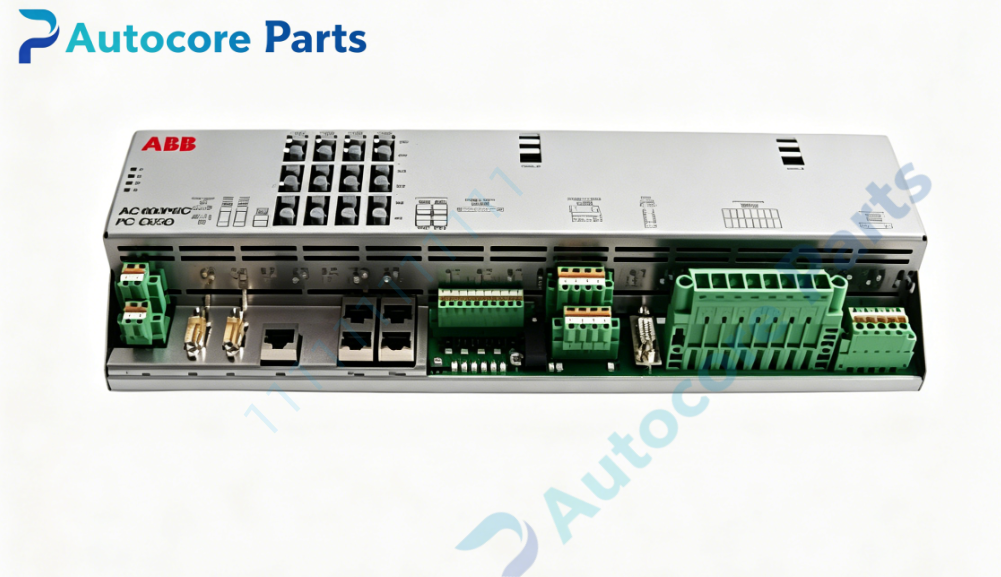

Front‑panel LED indicators display power status, I/O channel and communication link running condition.

Built‑in complete hardware self‑diagnosis function can detect channel fault, communication abnormality and internal hardware failure, fault information can be uploaded to plant monitoring system.

Industrial‑grade circuit design adapts to complex electromagnetic interference environment of power plant cabinet.

Adopt standard rack installation structure. Widely applied in thermal power, hydropower generator excitation projects.

It is important spare hardware for UNITROL excitation system renovation, communication channel debugging and defective PCD230A module replacement.
