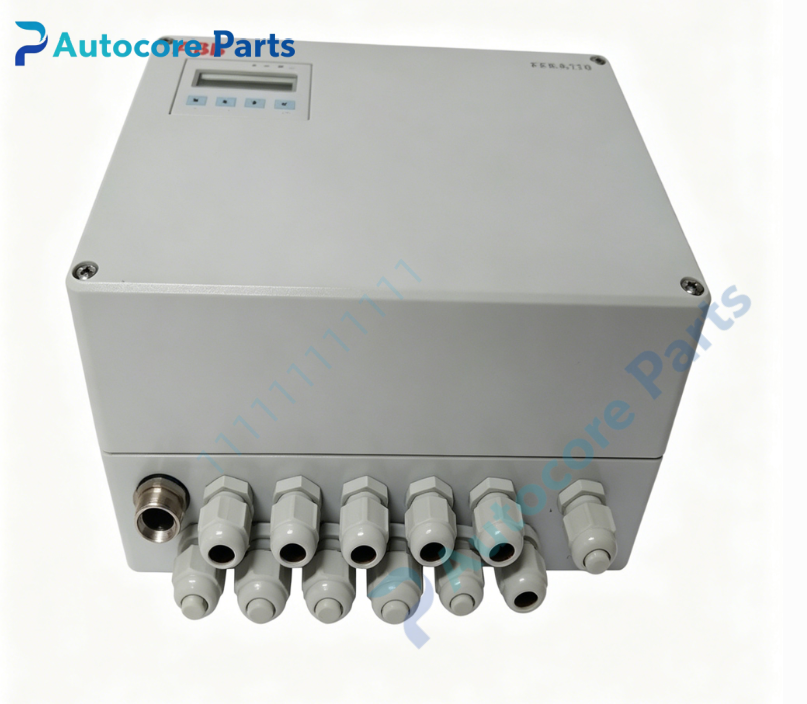

ABB PFEA113‑65 3BSE028144R0065 Tension Electronics Unit

Technical Specifications

Model: PFEA113‑65

Part Number: 3BSE028144R0065

Brand: ABB

Product Type: Tension electronics amplifier unit

Matching System: ABB Pressductor tension sensor series(PFTL / PFCL series load cells)

Power Supply: 24V DC (18‑36V DC), optional AC 100‑240V

Power Consumption: 12W

Load Cell Input: 4 channels for strain‑gauge tension load cells

Analog Input: 2 channels

Analog Output: 6 channels

Digital Input: 1 channel

Digital Output: 5 channels

Communication Interface: Profibus‑DP, RS232

Protection Class: IP65

Operating Temperature: ‑20℃ ~ +50℃, non‑condensing

Weight: 2.1kg

Dimension: 260mm × 185mm × 95mm

Compatible System: Paper, film, textile, metal strip web processing production line

Core Function: Receive signals from multiple tension load cells, complete signal amplification and processing, output tension measuring signals for drive and control system, realize real‑time web tension monitoring and closed‑loop adjustment for winding and unwinding process.

Product Details

The PFEA113‑65 3BSE028144R0065 is high‑performance IP65 tension electronics unit for ABB Pressductor tension measurement system.

This PFEA113‑65 unit supports four‑channel strain‑gauge tension sensor input, suitable for multi‑sensor tension measuring occasions.

It amplifies and filters the weak load cell signals, converts them into standard analog signals which can be sent to PLC, drive or upper‑level control system.

Profibus‑DP and RS232 communication interfaces support data interaction with automation system, realize remote parameter configuration and tension data reading.

Equipped with digital display and local operation keys, operators can check tension value, adjust parameters and view fault information on site.

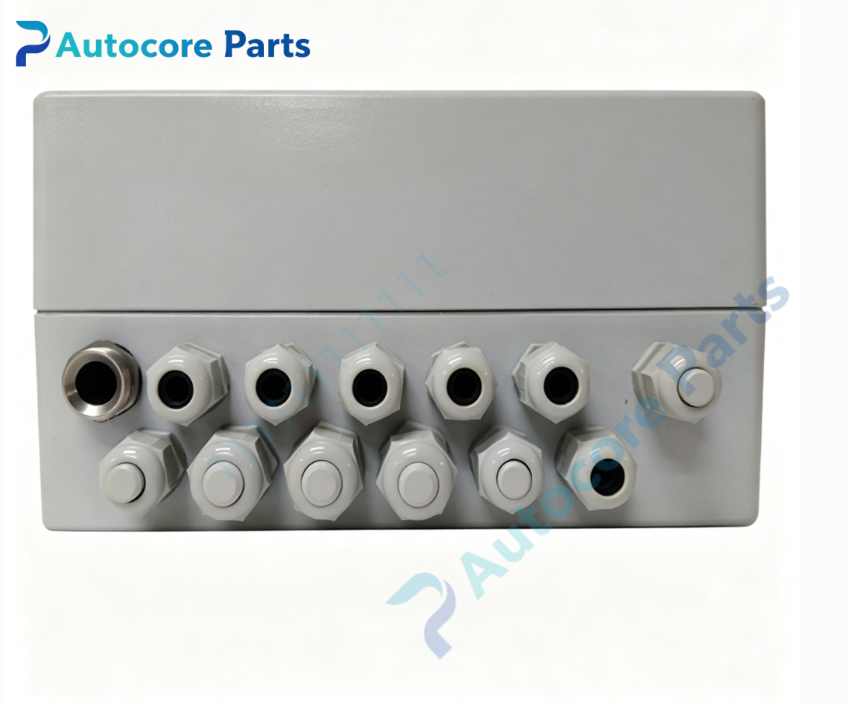

IP65 compact housing can be directly installed on production machinery, no extra protective cabinet required, adapt to dusty and humid workshop environment.

Built‑in hardware self‑diagnosis function can detect sensor fault, signal abnormality and module internal failure, trigger corresponding alarm output.

Galvanic isolation design effectively reduces electromagnetic interference on industrial production site.

Widely applied in papermaking, plastic film, textile, printing and metal strip rolling industries.

It is important spare hardware for web tension system renovation, sensor signal debugging and defective PFEA113‑65 unit replacement.
