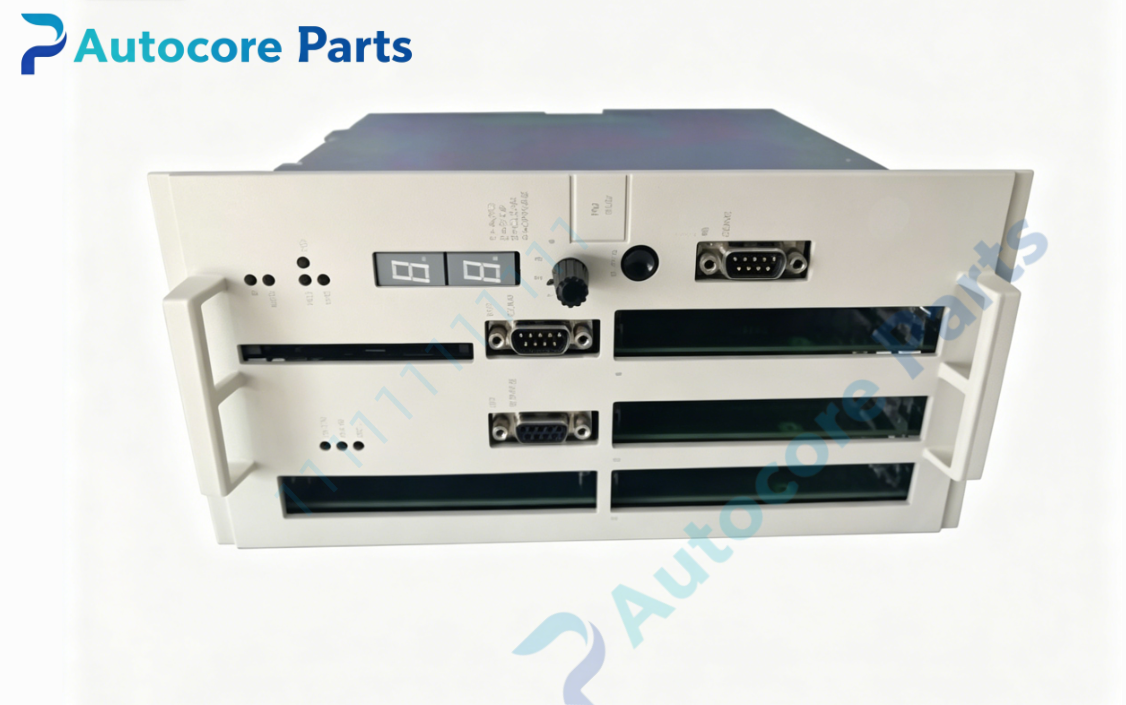

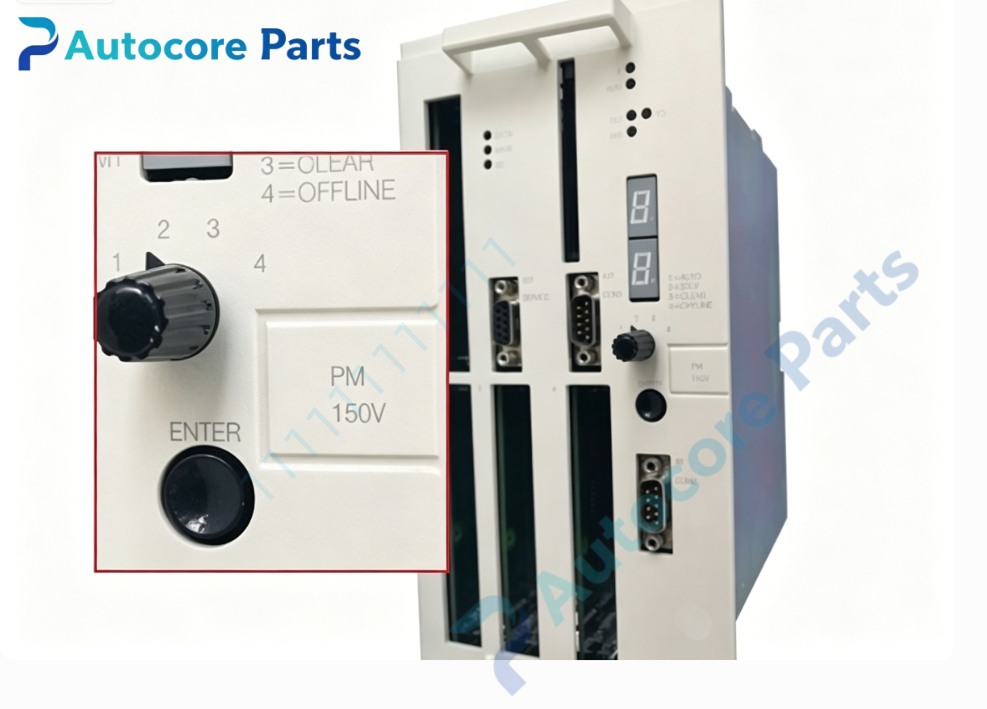

ABB PM150V08 3BSE009598R1 8MB Central Processor Module

Technical Specifications

Model: PM150V08

Part Number: 3BSE009598R1

Brand: ABB

Product Type: Central processor main‑CPU module

CPU Core: Motorola MC68020

Working Memory: 8 MB ECC DRAM

Expansion Slot: PCMCIA Type II flash memory slot

System Bus: Advant Master internal rack bus, MB300 sub‑bus interface

Power Supply: Rack backplane power supply

Operating Temperature: ‑20℃ ~ +70℃

Protection Class: IP20

Mounting: Rack‑slot installation

Compatible System: ABB Advant Master DCS

Core Function: Execute process control logic, manage system resources and handle bus data scheduling

Product Details

The PM150V08 3BSE009598R1 is the Main‑CPU Processing Unit of ABB Advant Master DCS platform, it acts as core ECC‑Memory Controller Module for the whole control cabinet and undertakes core computing tasks for process automation systems.

It adopts Motorola MC68020 industrial processor, equipped with 8‑megabyte ECC error‑correcting DRAM, which can automatically correct memory bit errors and enhance long‑term stable operation for critical industrial units. The PCMCIA expansion slot supports external flash memory card for storing system firmware, user application programs and operation log data. It connects with SC‑series sub‑module carrier boards through built‑in MB300 bus interface, realizes resource scheduling and high‑speed data interaction of each sub‑module in the rack.

Multi‑group LED indicators on front panel display CPU running status, system fault and memory abnormality information. Complete hardware self‑diagnosis function monitors CPU operation, memory status and bus communication quality in real‑time. Once hardware anomaly occurs, fault information will be uploaded to DCS human‑machine interface through rack backplane, helping maintenance staff capture hidden risks in advance.

Adopting standard rack‑mount structure, it can cooperate with CI547 communication board to optimize MB300 bus load. Widely used in thermal power, pulp‑paper and petrochemical legacy Advant Master DCS projects. It is essential main control hardware for system performance upgrade, program function expansion and defective main‑CPU replacement for old‑generation Advant automation systems.
