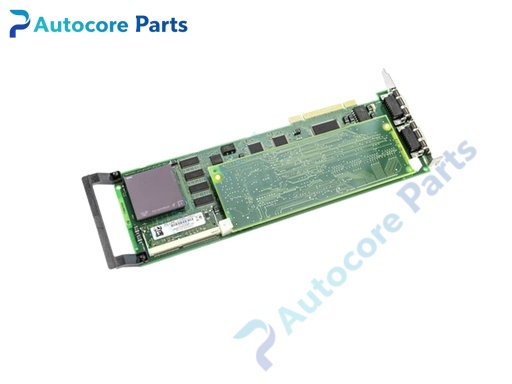

ABB PU516 3BSE013064R1 PCI Engineering Interface Board

Technical Specifications

Model: PU516

Part Number: 3BSE013064R1

Brand: ABB

Product Type: PCI engineering interface board

Bus Standard: 32‑bit 33MHz PCI bus, 5V

On‑board Memory: 16 MB

External Interface: MB300 bus port, RS‑232 serial port

Compatible System: Advant Master DCS

Installation: PCI slot installation for industrial computer

Operating Temperature: ‑25℃ ~ +60℃

Protection Class: IP20

Weight: 0.2 kg

Core Function: Realize data connection between industrial PC and Advant Master controller, for program download, online debugging and status monitoring

Product Details

The PU516 3BSE013064R1 is a high‑performance PCI Engineering Interface Board for ABB Advant Master DCS system, it acts as dedicated MB300 Debug Communication Card, inserted into PCI slot of industrial engineering computer to build data link between PC and Advant Master controller.

It adopts 32‑bit 33MHz PCI bus architecture, equipped with 16 MB on‑board memory for high‑speed data buffering. MB300 bus port connects to Advant Master controller, and RS‑232 serial port supports auxiliary debugging operation. Engineers can complete program downloading, parameter configuration, online monitoring and fault diagnosis for Advant Master system through matched engineering software.

Hardware self‑diagnosis function monitors PCI bus status and MB300 link quality. It can identify communication timeout and signal abnormal, and feed back running information to engineering workstation. The industrial‑grade component design adapts to electromagnetic interference environment of industrial control cabinet.

Adopting standard PCI board structure, it is widely used in thermal power, pulp‑paper and petrochemical legacy Advant Master automation projects. It is essential debugging hardware for system commissioning, program modification and defective engineering interface board replacement.
