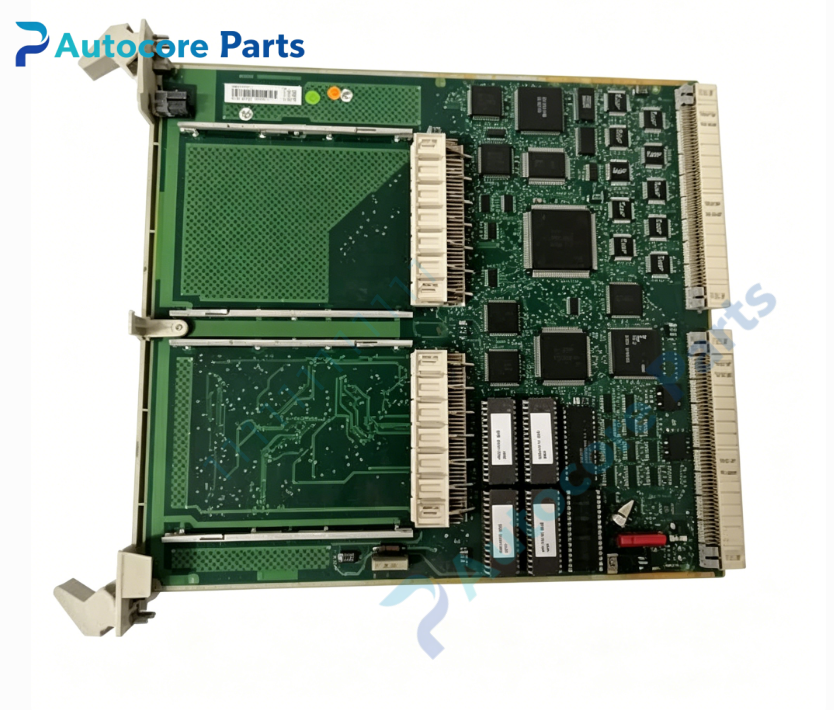

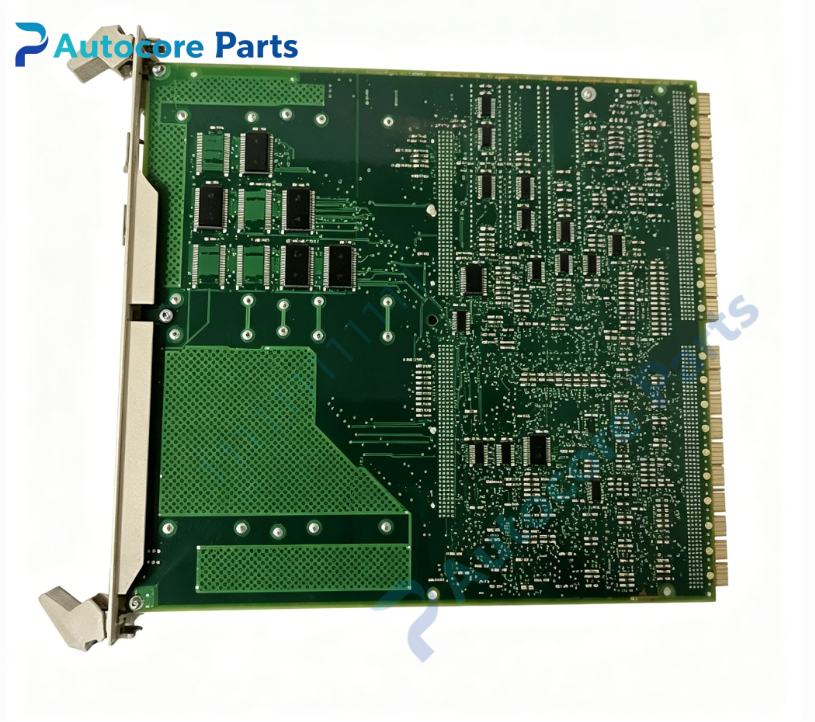

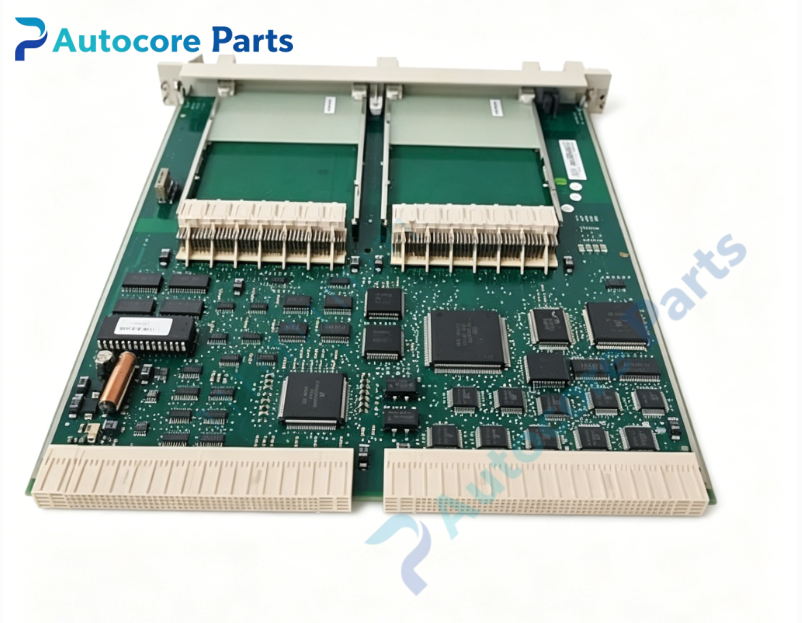

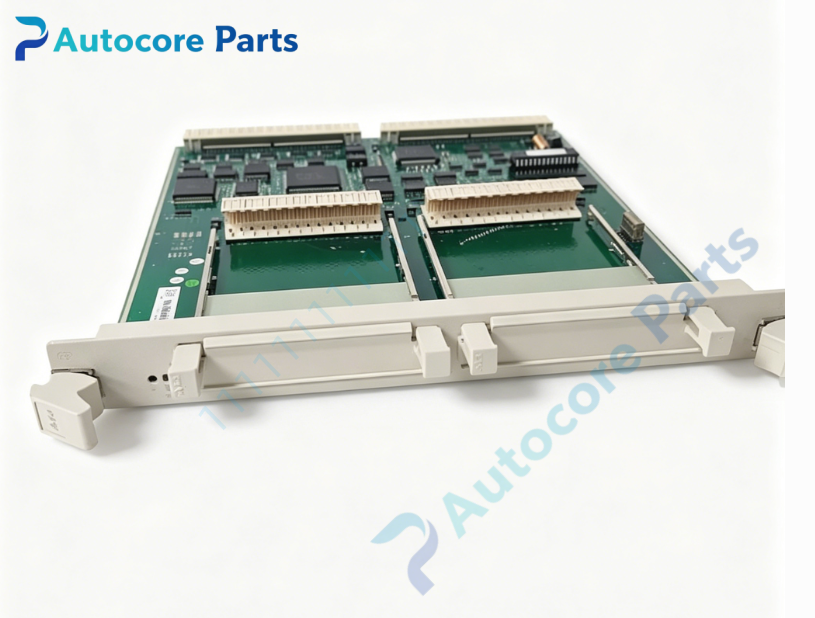

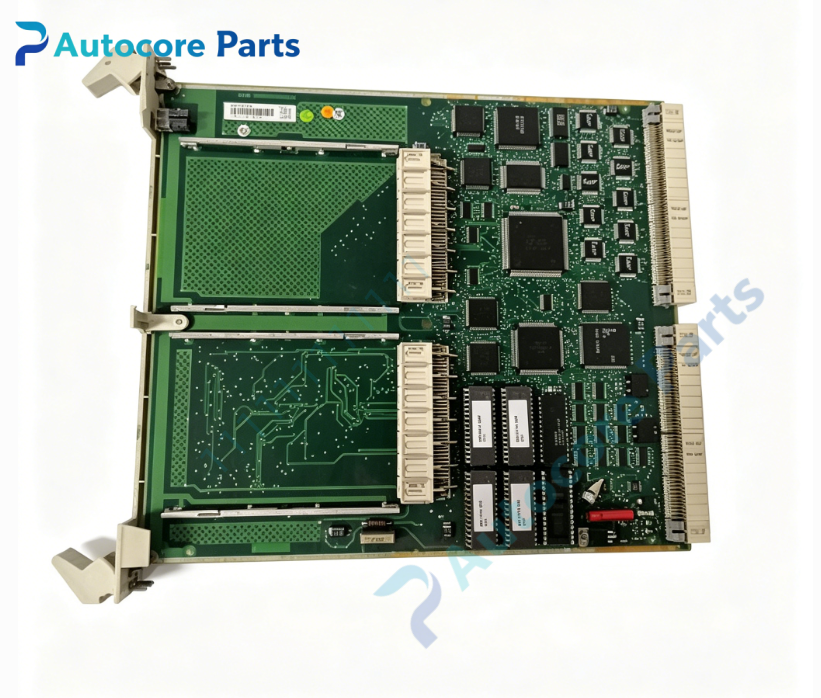

ABB SC510 3BSE003832R1 CPU‑Free Submodule Carrier Unit

Technical Specifications

Model: SC510

Part Number: 3BSE003832R1

Brand: ABB

Product Type: CPU‑free submodule carrier unit

Sub‑Bus: MB300

On‑board Processor: None

Backplane Interface: Advant Master rack backplane bus

Supply Voltage: 5V / 24V from rack backplane

Operating Temperature: ‑20℃ ~ +70℃

Protection Class: IP20

Mounting: Rack‑slot installation

Core Function: Provide expansion sub‑slots, extend I/O and communication resources for main controller

Product Details

The SC510 3BSE003832R1 is an expansion sub‑slot carrier under ABB Advant Master DCS platform, it belongs to MB300 Bus Extension Hardware and differs from SC520 for the absence of built‑in local CPU. It does not undertake independent logic calculation, purely provides physical slots and MB300 bus channels for various daughter sub‑modules.

Multiple sub‑module slots are reserved on the board, users can install signal acquisition sub‑boards, serial communication sub‑boards and other functional daughter‑cards according to project demands. All data processing and logic computation are completed by upper‑level main controller, this carrier is only responsible for bus routing and signal transmission between main frame and sub‑modules. It effectively expands the hardware resource capacity of Advant Master controller without adding extra independent control nodes.

Front‑mounted LED indicators give real‑time feedback on MB300 bus operating status and sub‑slot fault information. When sub‑module loose insertion, communication timeout or power supply anomaly occurs, fault signals will be uploaded to DCS host through rack backplane. Maintenance personnel can quickly locate faulty slot positions during on‑site inspection and troubleshooting work.

It adopts standard rack‑mount mechanical design and can be inserted into the same controller cabinet together with SC520 and other main‑board units. Widely used in thermal power, pulp‑paper and chemical legacy Advant DCS projects. It is practical hardware for system resource expansion, communication interface increase and defective carrier replacement for old Advant Master control systems.
