Control Techniques 095U3B300CAECA Rotary Servo Motor Unit

Module Feature

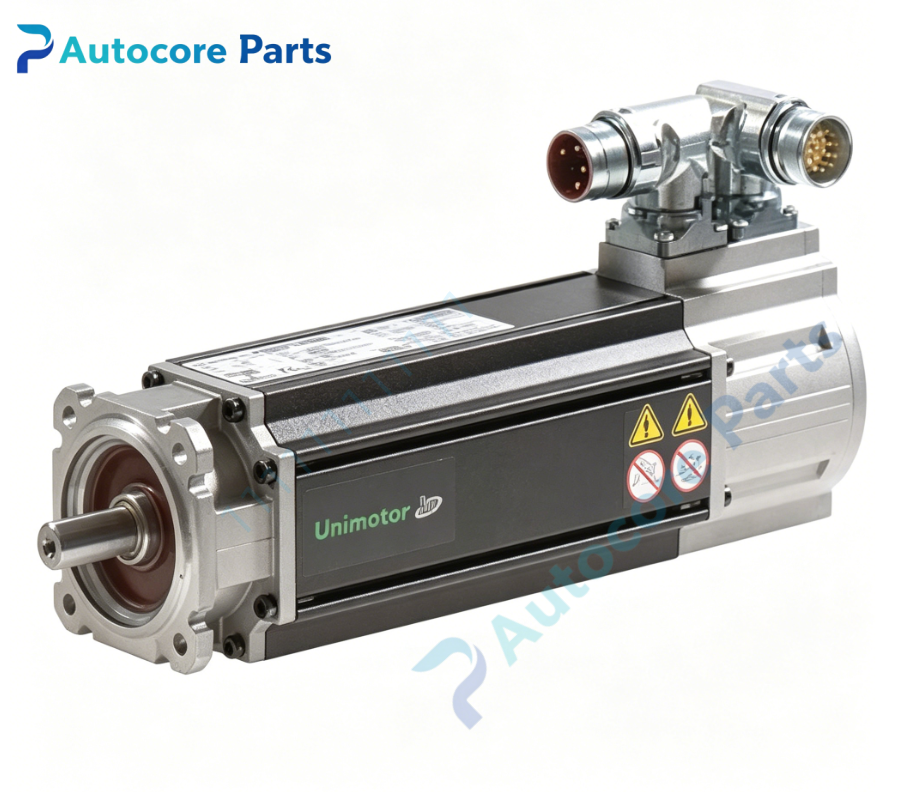

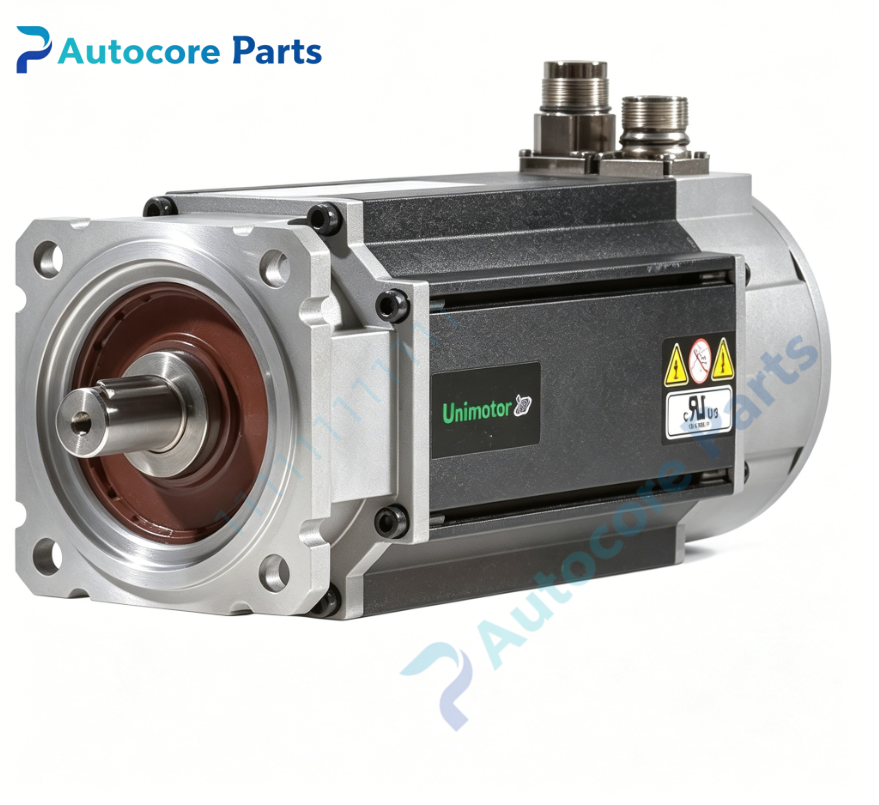

095U3B300CAECA (part number 100190) belongs to Unimotor FM series brushless AC servo motor manufactured by Control Techniques,designed for high-precision closed-loop motion control. It integrates 300PPR incremental optical encoder to provide reliable real-time speed and position feedback. This version has no built-in holding brake. Robust 95mm flange frame delivers excellent shock and vibration resistance,widely applied in automation equipment,cutting machinery,robotics and high dynamic servo motion systems.

Working principle

The stator winding generates rotating magnetic field to drive permanent magnet rotor rotation. The built-in incremental encoder continuously feeds speed and position signals back to servo drive to form closed-loop control. Without power-off holding brake, external mechanical locking device shall be adopted for vertical axis applications.

Onboard components

Permanent magnet rotor,stator winding,300PPR incremental optical encoder,terminal connectors,keyed solid shaft,aluminum alloy metal housing.

LED indicators

Power and fault status indicators on encoder connector.

Hardware self-diagnosis

Encoder signal integrity detection,motor winding insulation resistance check,over-temperature monitoring,over-current and short-circuit protection.

Programming software

Control Techniques Unidrive Tools software,supports motor parameter auto-tune,real-time position/speed monitoring and fault log reading.

Electrical & Process Parameters

Model:095U3B300CAECA 100190 Brand: Control Techniques Device type: Unimotor FM Brushless AC Servo Motor Frame size:95mm Rated voltage:460VAC Feedback:300 PPR incremental optical encoder Brake:None Shaft type:Keyed solid shaft Control mode:Closed loop position / speed / torque control Cooling:Natural convection cooling Protection:Over temperature,over current,short circuit protection

Mechanical & Structure

Mounting:Flange mounting Protection class:IP65 Housing:Metal sealed housing

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unimotor FM servo motor for high precision motion control

Installation

Follow ESD safety procedure before handling.Align motor shaft with mechanical load and install flexible coupling.Tighten mounting screws properly,avoid excessive radial or axial load.Connect motor power cable and encoder feedback cable to Control Techniques servo drive.Power on system,open Unidrive Tools and run motor auto-tune before commissioning.

Interface

Power connector,encoder feedback connector.

Diagnostic

No encoder signal: loose wiring or encoder damage. Motor overheat: overload or poor heat dissipation. Jittery movement: mechanical resonance or improper servo gain parameter. Axis sliding risk for vertical load: no built-in brake,add external locking mechanism.

Product Brief

Control Techniques 095U3B300CAECA (100190) Unimotor FM brushless AC servo motor,95mm frame,460VAC,built-in 300PPR incremental encoder,without holding brake,provides stable high-dynamic motion performance for industrial automation servo systems.
