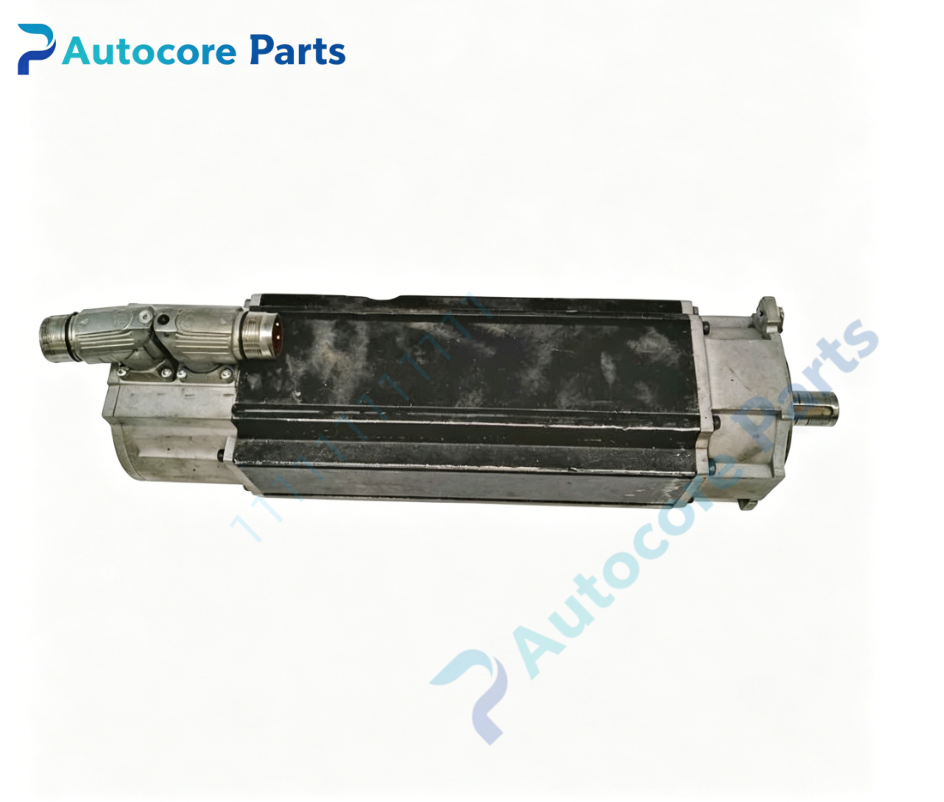

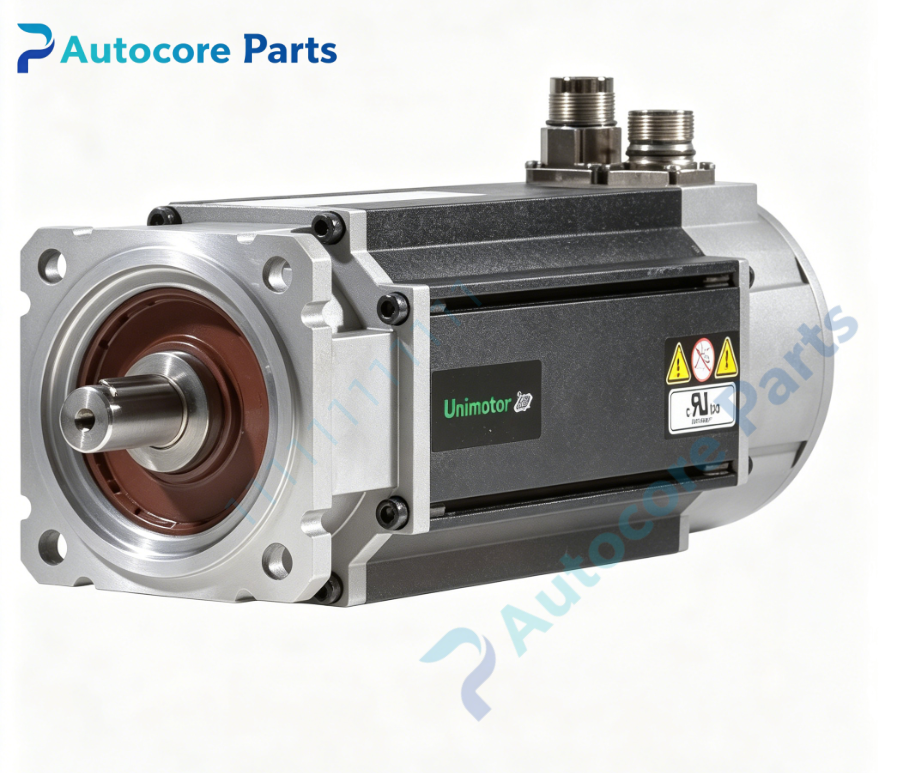

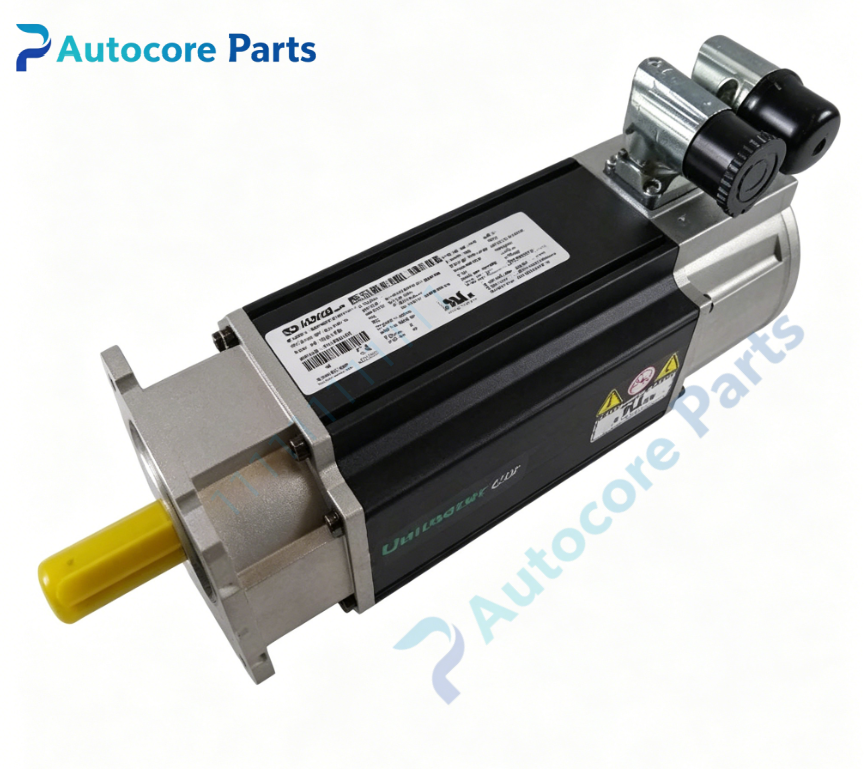

Control Techniques 095U3E400BAECA Rotary Servo Motor Unit

Module Feature

095U3E400BAECA (part number 100190) belongs to Unimotor FM series brushless AC servo motor manufactured by Control Techniques,designed for high-precision closed-loop motion control. It integrates multi-turn absolute encoder to provide reliable position feedback. Built-in 24VDC holding brake locks shaft securely when power off for safety protection. Robust 95mm frame structure provides excellent shock and vibration resistance,widely used in automation equipment,cutting machines,robotics and high dynamic industrial motion systems.

Working principle

The stator generates rotating magnetic field to drive permanent magnet rotor rotation. The built-in absolute encoder continuously feeds real-time speed and position data back to servo drive to form closed-loop control. The holding brake engages automatically when power is cut to maintain shaft position and prevent accidental movement.

Onboard components

Permanent magnet rotor,stator winding,multi-turn absolute encoder,24VDC electromagnetic holding brake,terminal connector,shaft with keyway,metal housing.

LED indicators

Status indicators on encoder connector for power and fault alarm.

Hardware self-diagnosis

Encoder signal detection,brake coil continuity check,winding insulation resistance test,over temperature monitoring,short circuit protection.

Programming software

Control Techniques Unidrive M software,supports motor parameter auto-tune,position signal monitoring and fault log reading.

Electrical & Process Parameters

Model:095U3E400BAECA 100190 Brand: Control Techniques Device type: Unimotor FM Brushless AC Servo Motor Frame size:95mm Rated voltage:460VAC Feedback:400 PPR absolute encoder Brake:24VDC holding brake Shaft type:Keyed solid shaft Control mode:Closed loop position / speed / torque control Cooling:Natural convection cooling Protection:Over temperature,over current,short circuit protection

Mechanical & Structure

Mounting:Flange mounting Protection class:IP65 Protection class: Metal sealed housing

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unimotor FM servo motor for high precision motion control

Installation

Follow ESD safety procedure before handling.Align motor shaft with load and install flexible coupling.Tighten mounting screws properly,avoid excessive radial or axial load.Connect motor power cable and encoder feedback cable to Control Techniques servo drive.Power on system,open Unidrive software,run auto-tune before commissioning.

Interface

Power connector,encoder feedback connector,brake control connector.

Diagnostic

No encoder signal: wiring loose or encoder damage. Motor overheat: overload or poor heat dissipation. Brake failure: brake coil open circuit or power supply fault. Jittery movement: mechanical resonance or incorrect servo gain setting.

Product Brief

Control Techniques 095U3E400BAECA (100190) Unimotor FM brushless AC servo motor,95mm frame,460VAC,built-in 400PPR absolute encoder and 24V holding brake,provides reliable high-precision motion performance for industrial automation servo systems.
