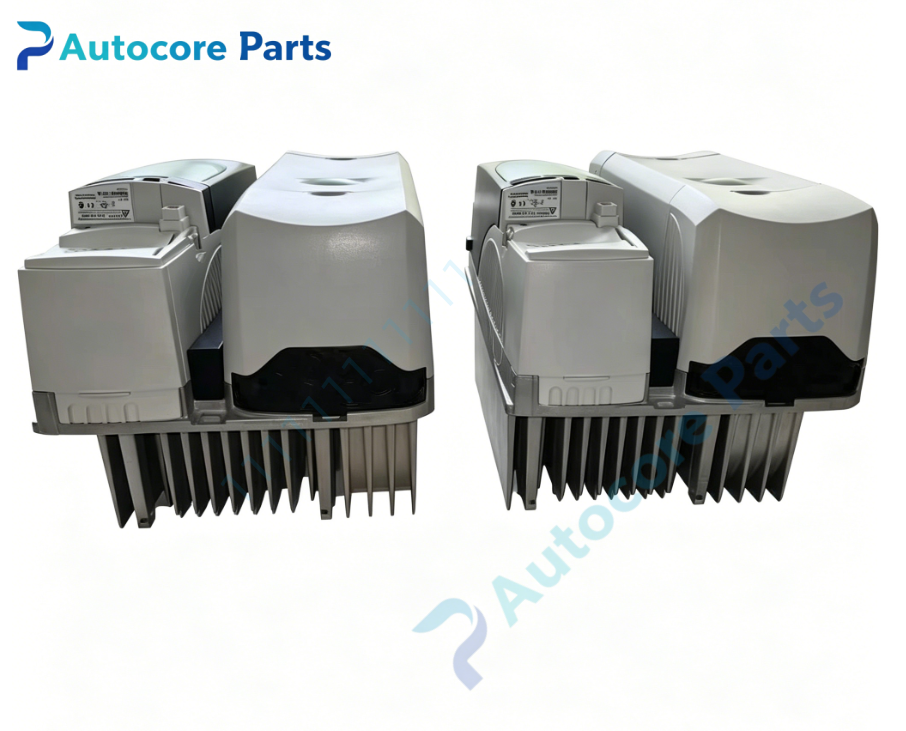

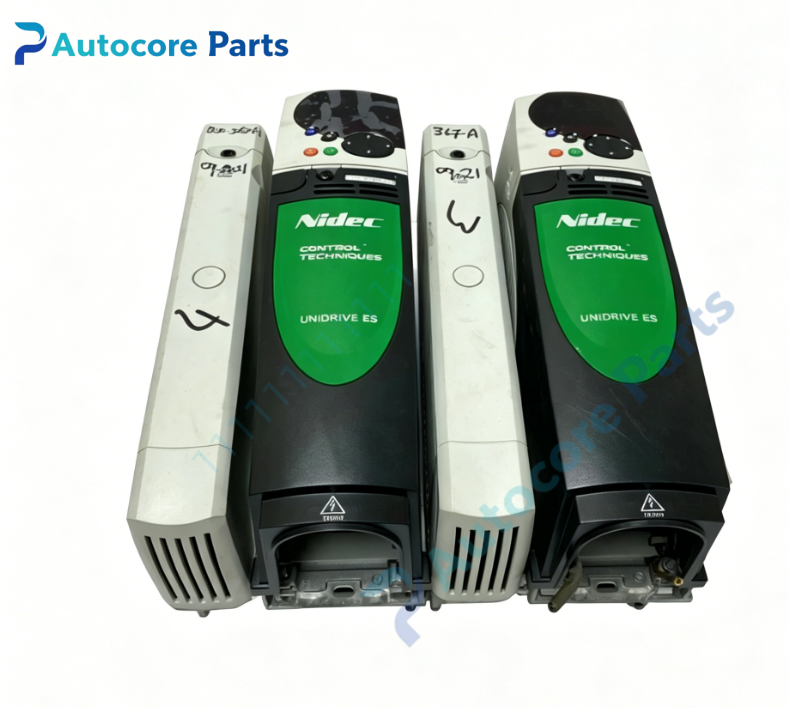

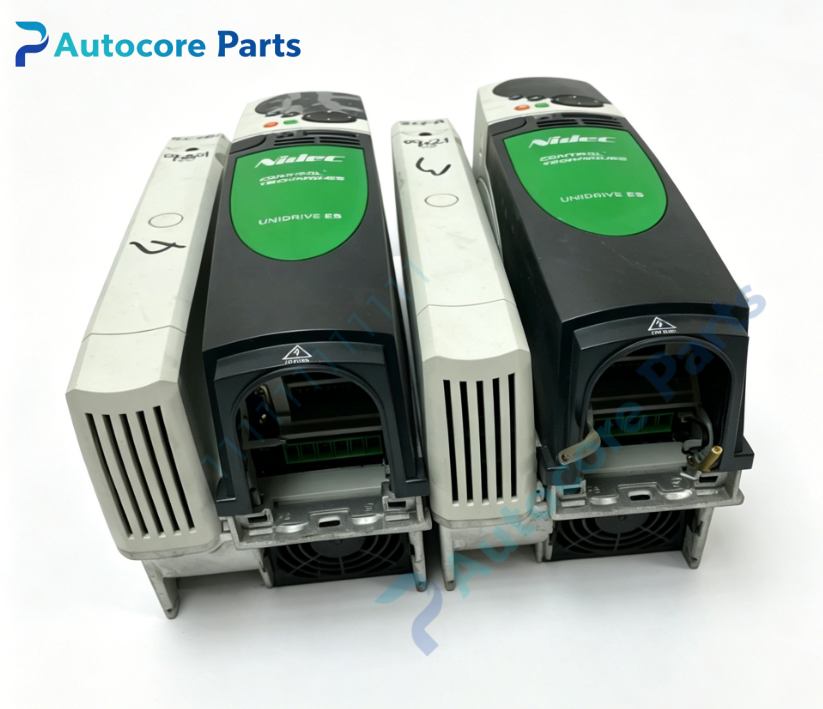

Control Techniques ES3403 Unidrive ES Elevator Drive Unit

Module Feature

ES3403 belongs to Unidrive ES series dedicated elevator AC variable frequency drive manufactured by Control Techniques. Optimized for elevator traction machine control, it delivers ultra-smooth speed curve and high low-speed torque to ensure comfortable riding experience. It supports open-loop and closed-loop vector control, compatible with asynchronous and permanent magnet traction motors. Built-in elevator-specific logic functions and rich I/O terminals, encoder interface for position feedback. Widely applied in passenger elevators, freight lifts and modernization retrofit projects.

Working principle

Three-phase AC power is rectified to DC bus voltage. IGBT power module outputs adjustable voltage and frequency AC to drive traction motor. The drive executes elevator S-curve speed profile automatically, receives encoder feedback signal to achieve closed-loop speed regulation. Dynamic brake circuit handles regenerative energy during car deceleration, to guarantee stable floor leveling.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,operation keypad & display,encoder interface,dynamic braking transistor,heat sink,control terminal block.

LED indicators

Power indicator,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,encoder signal loss,phase loss,motor overload detection.

Programming software

CTSoft software,supports elevator parameter configuration,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:ES3403 Brand: Control Techniques Device type: Unidrive ES Elevator Special AC Drive Input voltage:380 ~ 480VAC three phase Control mode:Open-loop vector,closed-loop vector Feedback:Incremental encoder input Cooling:Forced air cooling Protection:Over current,over voltage,under voltage,overheat,short circuit,earth fault,phase loss protection

Mechanical & Structure

Mounting:Panel mounting inside elevator control cabinet Protection class:IP20 Housing:Metal sealed frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive ES dedicated elevator drive for lift traction motor control

Installation

Follow ESD safety procedure before handling.Mount vertically with enough ventilation clearance.Connect three-phase main power to L1/L2/L3 terminals,traction motor cable to U/V/W terminals.Connect encoder cable with shielded wiring,separate power cable and signal cable to reduce EMI interference.Complete motor auto-tune and elevator leveling parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,keypad port.

Diagnostic

Encoder fault:loose wiring or encoder hardware damage. Over current:motor winding short circuit or mechanical jam. Overheat:blocked heat sink or continuous overload. Under voltage:input mains fluctuation or phase missing.

Product Brief

Control Techniques Unidrive ES3403 elevator dedicated AC variable frequency drive,380-480V three phase input,vector control,optimized S-curve speed profile for elevator traction motor,used for new elevator installation and lift renovation projects.
