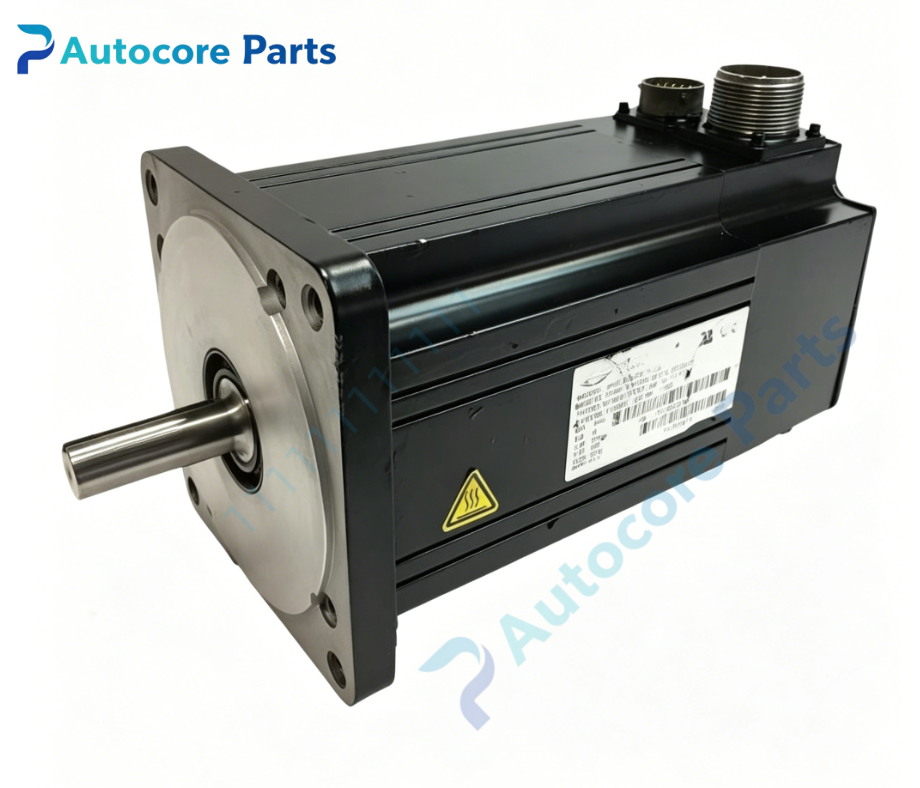

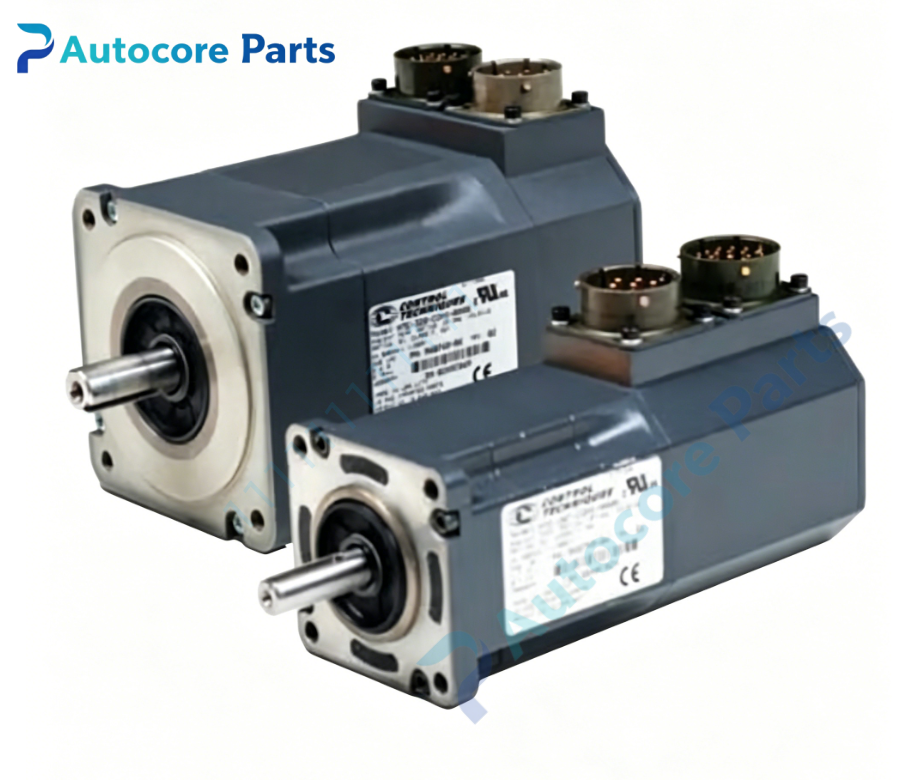

Control Techniques NTM207CBNS0000 NT Servo Motor Unit

Module Feature

NTM207CBNS0000 belongs to NT series brushless AC servo motor manufactured by Control Techniques. It adopts low inertia rotor structure with neodymium permanent magnet,metric mounting flange,MS type connectors. Built-in 24VDC electromagnetic holding brake for vertical load safety locking. High acceleration performance,suited for short cycle positioning applications. Widely applied in packaging equipment,small cutting machinery,material handling and precision automation systems.

Working principle

The stator winding generates rotating magnetic field to drive permanent magnet rotor rotation. Built-in high resolution encoder feeds speed and position signal back to servo drive to realize closed-loop torque,speed and position control. The 24V holding brake engages automatically upon power loss to lock motor shaft and prevent load sliding.

Onboard components

Permanent magnet rotor,stator segmented lamination winding,incremental optical encoder,24VDC electromagnetic holding brake,MS circular connectors,keyed solid shaft,aluminum alloy housing.

LED indicators

Power and fault status indicators on encoder connector.

Hardware self-diagnosis

Encoder signal integrity test,brake coil continuity test,motor winding insulation resistance check,over-temperature monitoring,over-current and short-circuit protection.

Programming software

Control Techniques Unidrive M Connect software,supports motor parameter auto-tune,real-time position/speed monitoring and fault log reading.

Electrical & Process Parameters

Model:NTM207CBNS0000 Brand: Control Techniques Device type: NT Series Brushless AC Servo Motor Rated voltage:240VAC Max speed:5000RPM Continuous torque:7.3 lb-in Brake:24VDC electromagnetic holding brake Shaft type:Keyed solid shaft Mounting:Metric flange Control mode:Closed loop position / speed / torque control Cooling:Natural convection cooling Protection:Over temperature,over current,short circuit protection

Mechanical & Structure

Mounting:Flange mounting Protection class:IP65 Housing:Metal sealed housing

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques NT low inertia servo motor for high acceleration precision motion control

Installation

Follow ESD safety procedure before handling.Align motor shaft with mechanical load and install flexible coupling.Tighten mounting screws properly,avoid excessive radial or axial load.Connect motor power cable,encoder feedback cable and brake control cable to Control Techniques servo drive.Power on system,run motor auto-tune before commissioning.

Interface

Power connector,encoder feedback connector,brake control connector.

Diagnostic

No encoder signal: loose wiring or encoder damage. Motor overheat: overload or poor heat dissipation. Brake failure: brake coil open circuit or brake power supply fault. Jittery movement: mechanical resonance or improper servo gain parameter.

Product Brief

Control Techniques NTM207CBNS0000 NT series brushless AC servo motor,metric flange,240VAC,5000RPM max speed,with built-in 24VDC holding brake,low inertia design for high dynamic short-cycle industrial automation.
