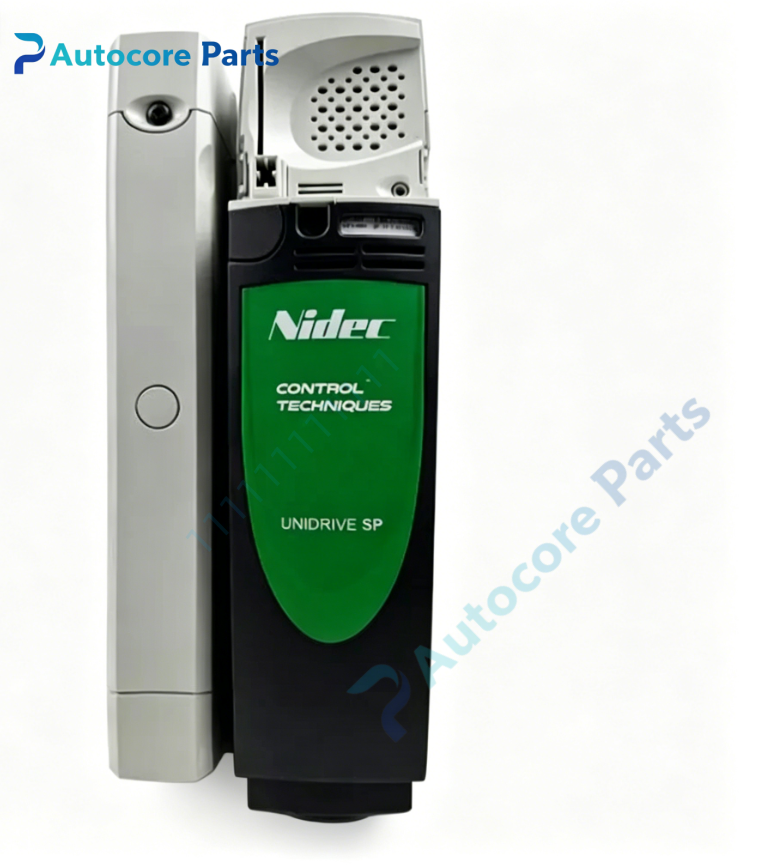

Control Techniques SP2401 Unidrive SP Universal Motion Drive Unit

Module Feature

SP2401 belongs to Unidrive SP series universal AC variable frequency drive manufactured by Control Techniques. Rated 5.5kW heavy duty,7.5kW normal duty. It supports V/F, open-loop vector, closed-loop vector and high-performance servo control, compatible with asynchronous induction motors and Unimotor FM permanent magnet servo motors. Equipped with SM small option slots for encoder feedback, fieldbus communication and motion control modules. Widely applied in conveyors, winding machines, packaging equipment and general factory automation.

Working principle

Three-phase 50/60Hz AC mains power is rectified to DC bus voltage. IGBT power module outputs adjustable voltage and frequency AC to drive motor. The drive receives motion command from upper controller, compares command value with encoder feedback signal to realize closed-loop torque, speed and position regulation. Built-in brake transistor absorbs regenerative energy during motor deceleration.

Onboard components

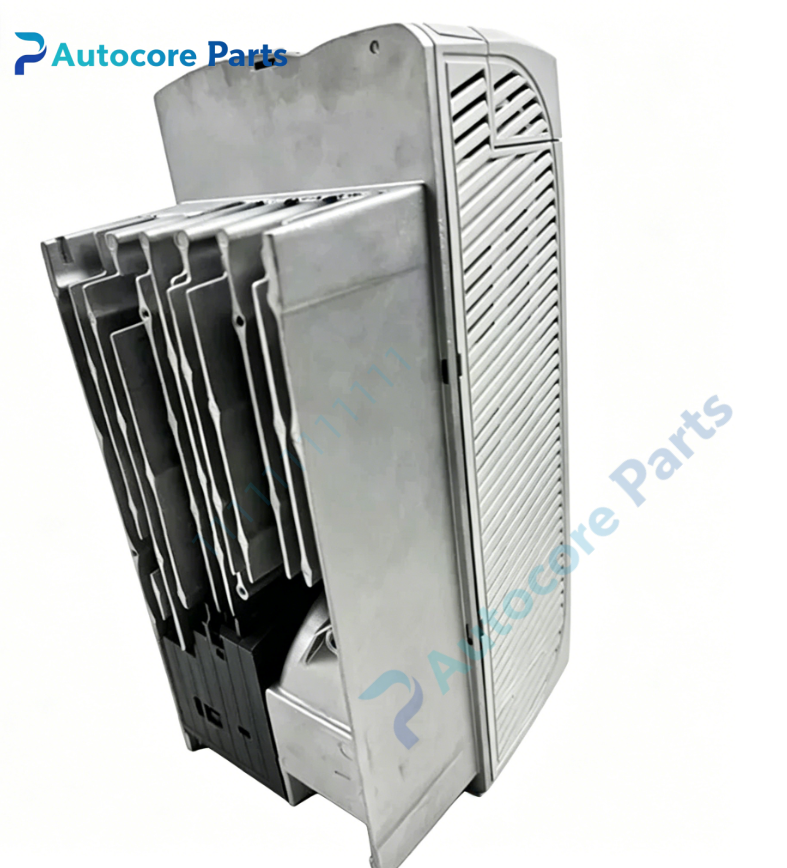

Input rectifier bridge,IGBT power stage,main control PCB,LED status panel,dynamic braking transistor,heat sink,SM expansion option slot,power & control terminal blocks.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,encoder signal loss,phase loss,motor overload detection.

Programming software

CTSoft software,supports motor auto-tune,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:SP2401 Brand:Control Techniques Device type:Unidrive SP Universal AC Drive Heavy duty rating:5.5kW Normal duty rating:7.5kW Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Control mode:V/F,open-loop vector,closed-loop vector,servo control Feedback:Incremental,SinCos,SSI,resolver via SM option card Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal sealed frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive SP universal drive for medium load industrial motor and servo motion control

Installation

Follow ESD safety procedure before handling.Mount vertically and keep enough ventilation gap.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Use shielded cable for encoder and control I/O wiring to reduce EMI interference.Complete motor auto-tune before commissioning.

Interface

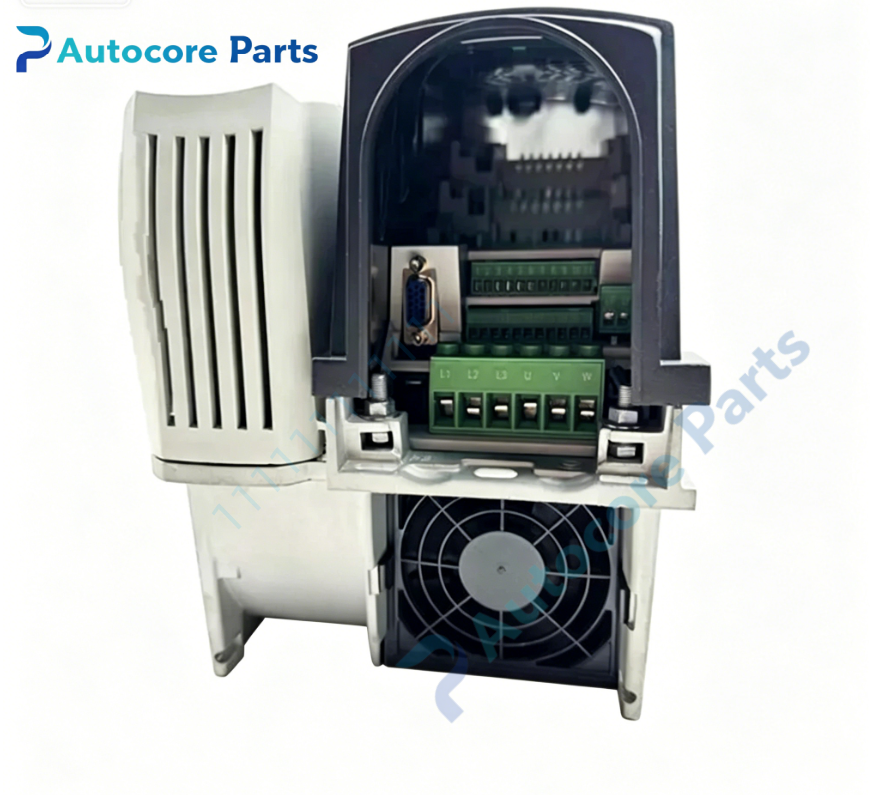

Main power terminal,motor output terminal,digital/analog I/O terminal,SM expansion slot,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input mains fluctuation or phase missing.

Product Brief

Control Techniques Unidrive SP2401 AC variable frequency drive,5.5kW heavy duty /7.5kW normal duty,380-480V three phase input,multi-mode vector and servo control,expandable with SM option modules for medium-load industrial automation applications.
