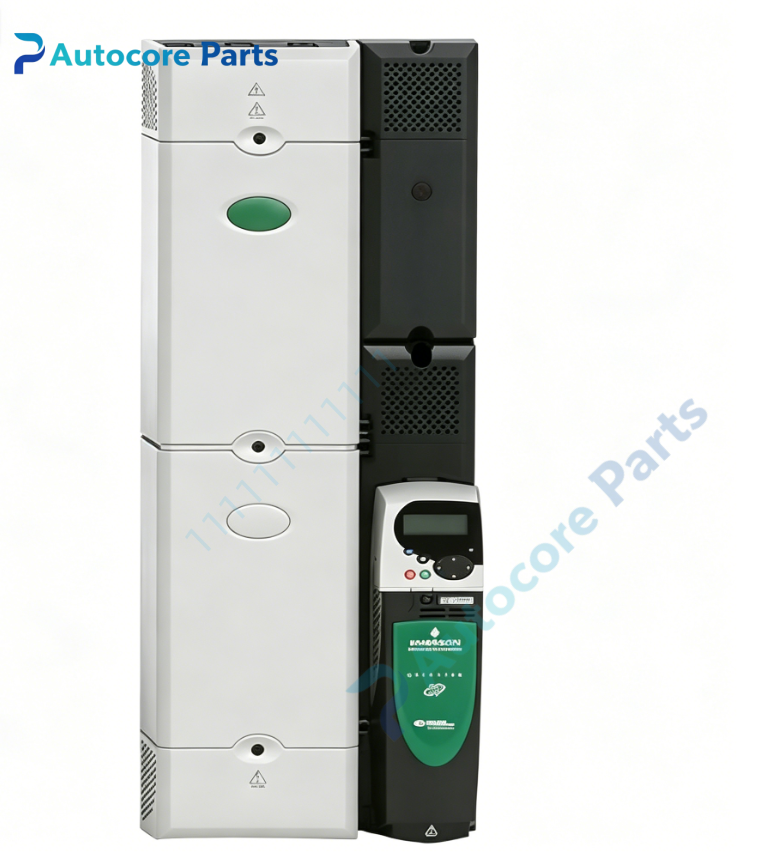

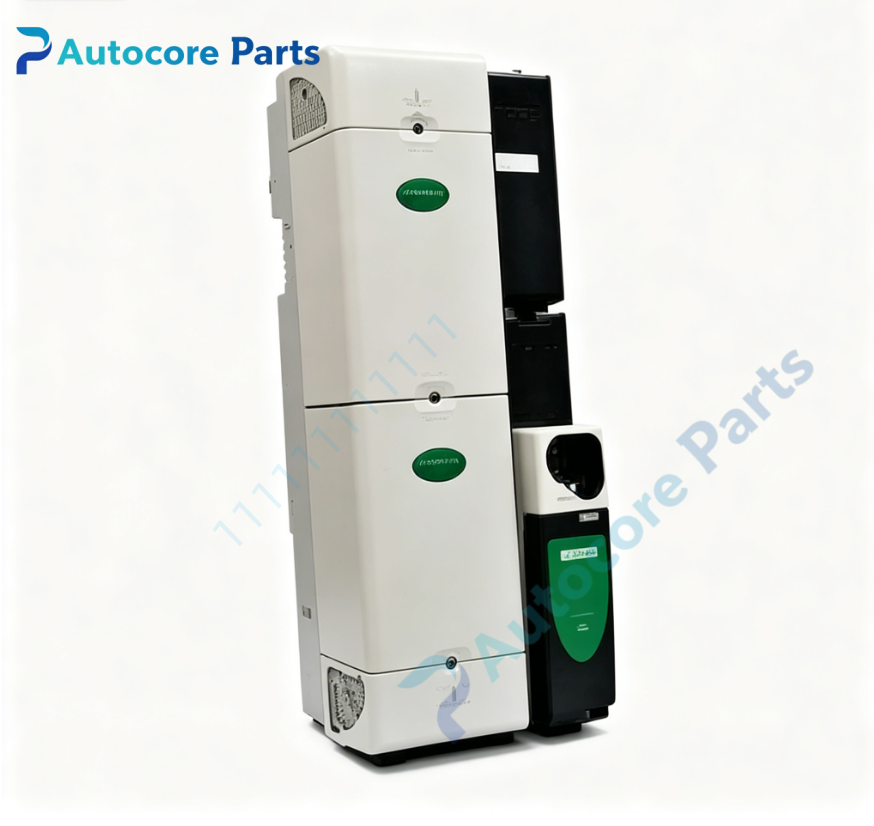

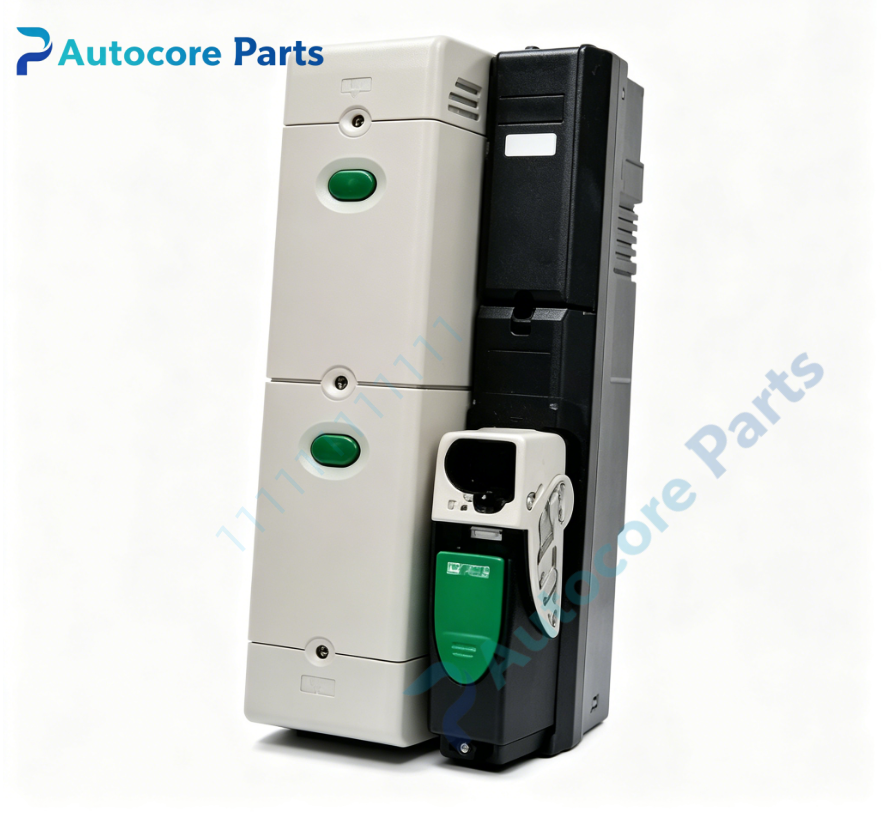

Control Techniques SP5401 Unidrive SP Inverter Unit

Module Feature

SP5401 belongs to Unidrive SP universal high-performance AC inverter series manufactured by Emerson Control Techniques. Rated 55kW heavy duty,75kW normal duty. It supports V/F,open-loop vector,closed-loop flux vector,RFC rotor flux control,servo and four-quadrant regenerative control,compatible with induction motors and Unimotor FM permanent magnet servo motors. Equipped with multi-channel digital and analog I/O terminals,SM expansion slots for incremental encoder,SinCos,SSI,resolver and fieldbus communication modules. Built-in dynamic braking transistor and RS485 Modbus RTU interface. Widely used in winders,extruders,mixers,conveyors and heavy-duty factory automation equipment.

Working principle

Three-phase 50/60Hz AC mains power is rectified to DC bus. IGBT power stage outputs adjustable voltage and frequency AC to regulate motor torque and speed. Accepts analog,digital or fieldbus command; encoder feedback enables high-precision closed-loop speed and position control. Built-in dynamic braking circuit absorbs regenerative energy during rapid deceleration.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,LED status panel,dynamic braking transistor,heat sink,power terminal block,control I/O terminal block,option module connector.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,encoder signal loss detection.

Programming software

CTSoft software,supports motor auto-tune,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:SP5401 Brand:Emerson Control Techniques Device type:Unidrive SP Universal AC Inverter Heavy duty rating:55kW,continuous output current 124A,150% short-time overload Normal duty rating:75kW,continuous output current 138A,110% overload Input voltage:380 ~ 480VAC three phase Input frequency:48~65Hz Control mode:V/F,open-loop vector,closed-loop vector,RFC servo,four-quadrant regeneration Feedback:Incremental,SinCos,SSI,resolver via option modules Communication:RS485 Modbus RTU Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification:CE,UL compliant Status: Emerson Control Techniques Unidrive SP high power inverter for heavy-duty motor and servo motion control

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,option module slots,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input mains fluctuation or phase missing. Unstable motor speed:incorrect motor parameters or poor shielding of signal wires.

Product Brief

Emerson Control Techniques SP5401 Unidrive SP AC inverter,55kW heavy duty /75kW normal duty,380-480V three phase input,supports vector,servo and four-quadrant regenerative control,expandable with SM option modules for heavy-load industrial automation.
