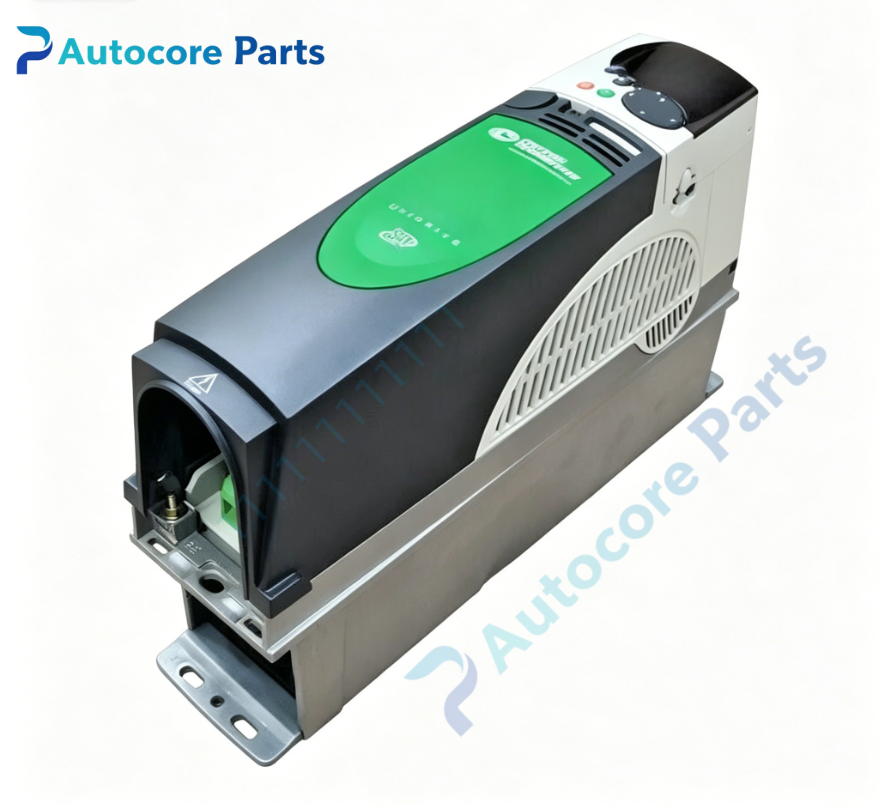

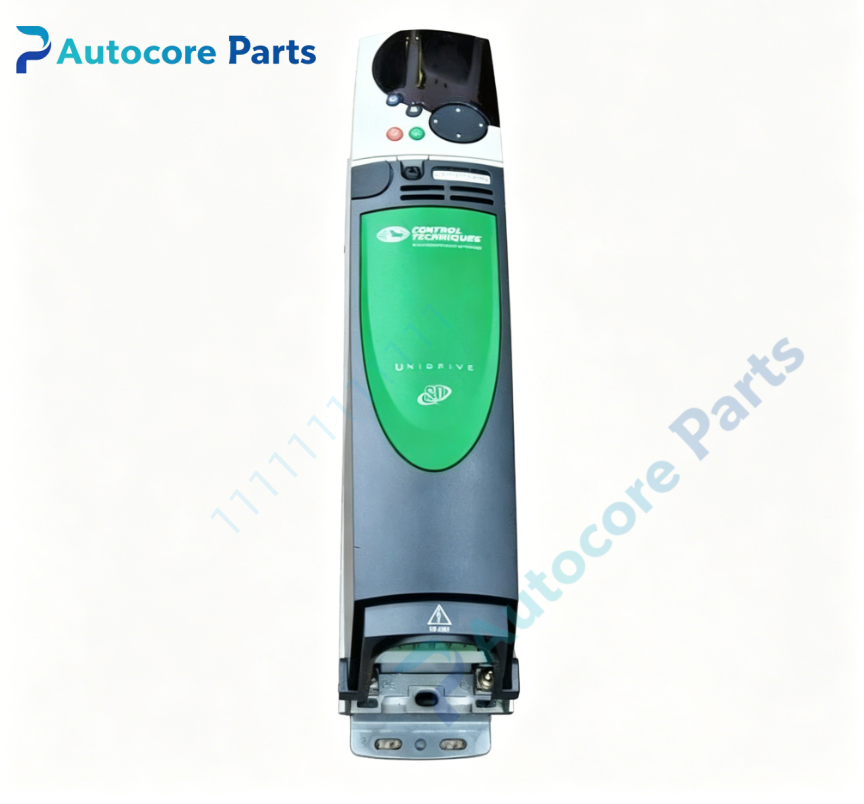

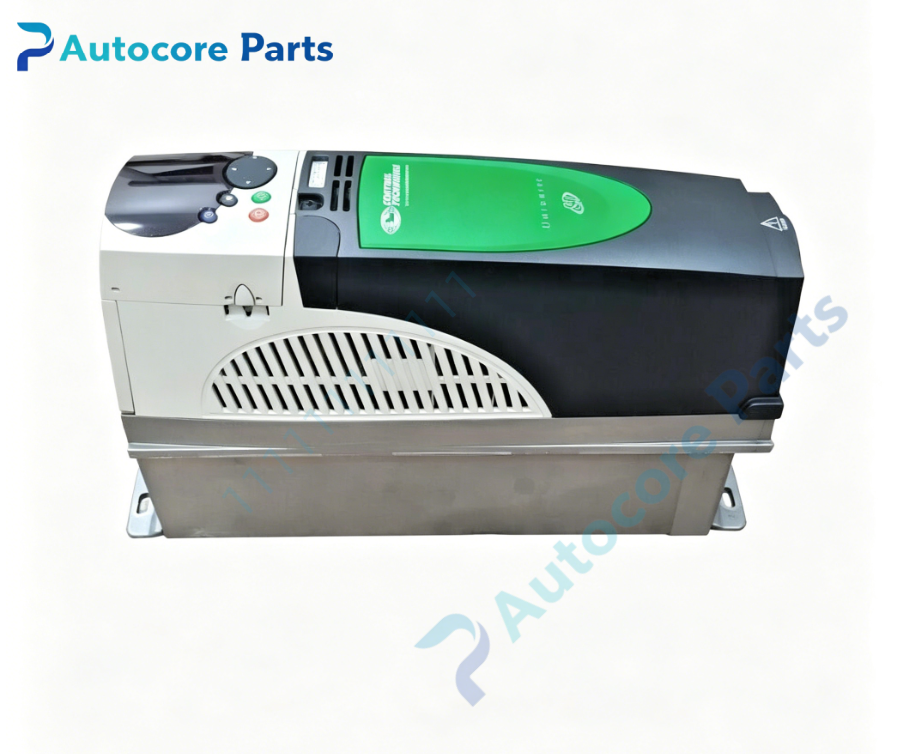

Control Techniques UNI1401 Unidrive Classic AC Drive Unit

Module Feature

UNI1401 belongs to Unidrive Classic universal AC drive series manufactured by Control Techniques. Rated 0.75kW, it supports V/F and open-loop vector control, compatible with standard asynchronous induction motors. Compact panel-mounted design with built-in cooling fan. Optional expansion slots available for encoder feedback and communication modules. Widely applied in conveyors, small pumps, fans and simple automation equipment.

Working principle

Three-phase AC mains is rectified to DC bus. IGBT power stage outputs adjustable voltage and frequency AC to control motor speed and torque. The drive executes speed profile according to analog or digital command signals. Built-in brake circuit handles regenerative energy during motor deceleration.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,LED status panel,dynamic braking transistor,heat sink,control terminal block,keypad interface.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload detection.

Programming software

Unidrive Tools software,supports motor auto-tune,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:UNI1401 Brand:Control Techniques Device type:Unidrive Classic Universal AC Drive Rated power:0.75kW Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Continuous output current:2.1A,overload current 3.2A for 60s Control mode:V/F,open-loop vector Cooling:Forced air cooling Protection:Over current,over voltage,under voltage,overheat,short circuit,earth fault,phase loss

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive Classic compact universal drive for small industrial motor speed regulation

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve ventilation clearance.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Separate power cable and signal wiring to reduce EMI interference.Complete motor auto-tune before commissioning.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,keypad port,option slot.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Under voltage:input mains fluctuation or phase missing. Motor unstable speed:incorrect motor parameters or poor wiring.

Product Brief

Control Techniques UNI1401 Unidrive Classic AC variable frequency drive,0.75kW,380-480V three phase input,supports V/F and open-loop vector control,compact panel mount design for small industrial equipment speed control.
