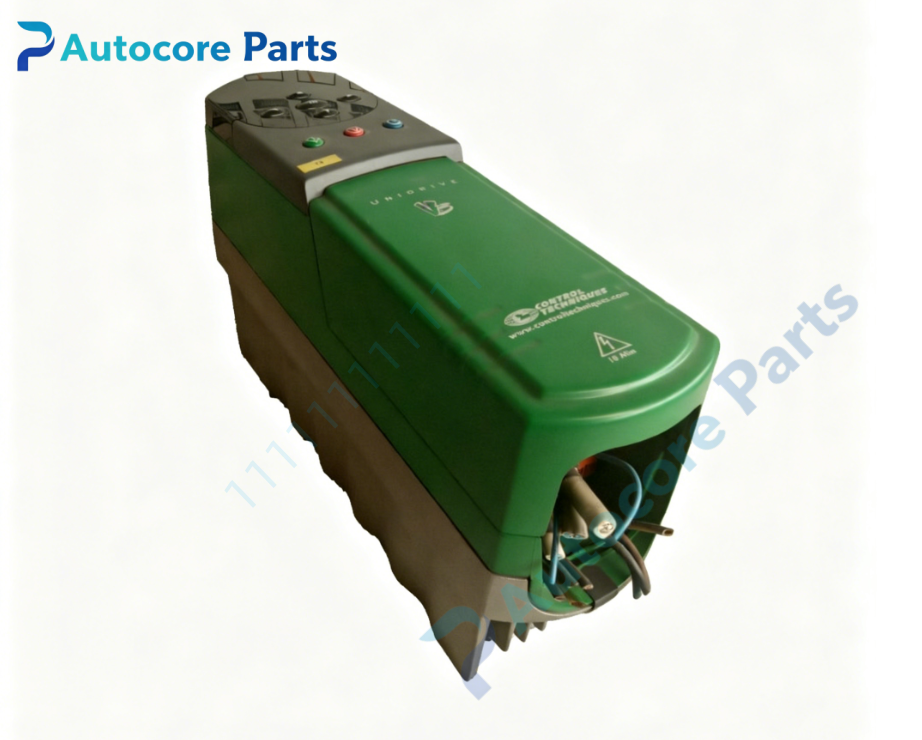

Control Techniques UNI1405 Unidrive Motion Drive Unit

Module Feature

UNI1405 is Unidrive classic series universal AC drive manufactured by Control Techniques,rated 4.0kW. It supports multiple control modes including V/F,open-loop vector,closed-loop flux vector and high performance servo control for Unimotor series brushless servo motors. It has flexible built-in digital and analog I/O and optional expansion slots for communication encoder cards. Widely applied in machine tools,packaging machines,material handling and general automation motion systems.

Working principle

Three-phase AC power passes through rectifier to form DC bus voltage. IGBT power module converts DC into adjustable frequency and voltage AC output. The drive receives command signals from upper controller, compares with encoder feedback signal to form closed-loop regulation,adjust torque,speed and position dynamically. Built-in braking transistor handles regenerative energy during motor deceleration.

Onboard components

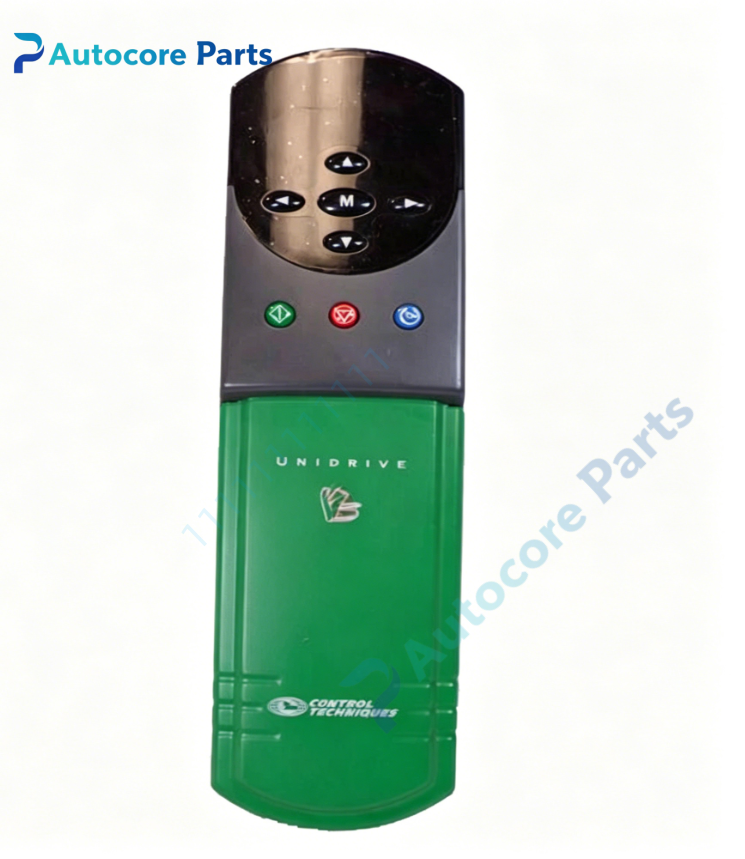

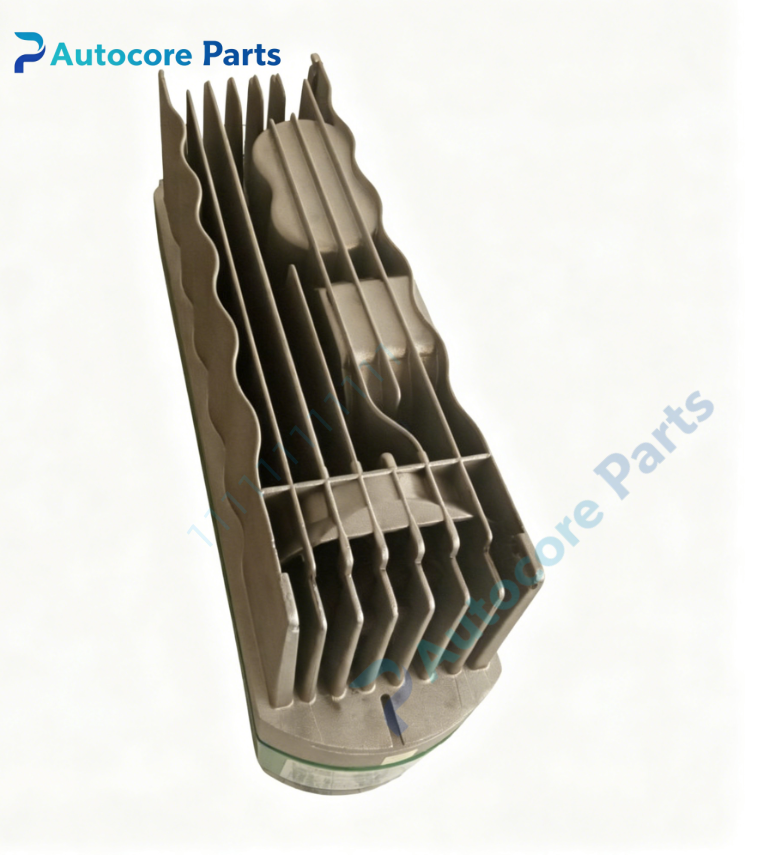

Input rectifier bridge,IGBT power stage,main control PCB,operator keypad & display,terminal block,dynamic braking transistor,heat sink,expansion card slot.

LED indicators

Power indicator,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,encoder signal loss,motor overload detection.

Programming software

CTSoft software,supports motor auto-tune,parameter backup/restore,real-time monitoring and fault log reading.

Electrical & Process Parameters

Model:UNI1405 Brand: Control Techniques Device type: Unidrive Universal AC Drive Rated power:4.0kW / 5HP Three-phase input voltage:380 ~ 480VAC Continuous output current:9.5A Control mode:V/F,open vector,closed vector,servo control Feedback:Incremental encoder input,optional SSI absolute encoder via option card Cooling:Forced air cooling Protection:Over current,over voltage,under voltage,overheat,short circuit,earth fault

Mechanical & Structure

Mounting:Panel mounting Protection class:IP00 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive 4.0kW universal drive for industrial servo and motor control

Installation

Follow ESD safety procedure before handling.Mount vertically in control cabinet,reserve sufficient ventilation space around heat sink.Connect 3-phase mains to L1/L2/L3 terminals,motor cable to U/V/W terminals.Wire control signals with shielded cable to reduce EMI.Connect encoder cable when running servo mode.Power on and complete motor auto-tune before commissioning.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,expansion card slot,keypad port.

Diagnostic

Over current:motor winding short,damaged cable or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input power loss or unstable mains supply.

Product Brief

Control Techniques UNI1405 Unidrive universal AC drive,4.0kW,380-480V three phase,multi-mode control,compatible with Unimotor servo motors and induction motors for industrial automation motion applications.
