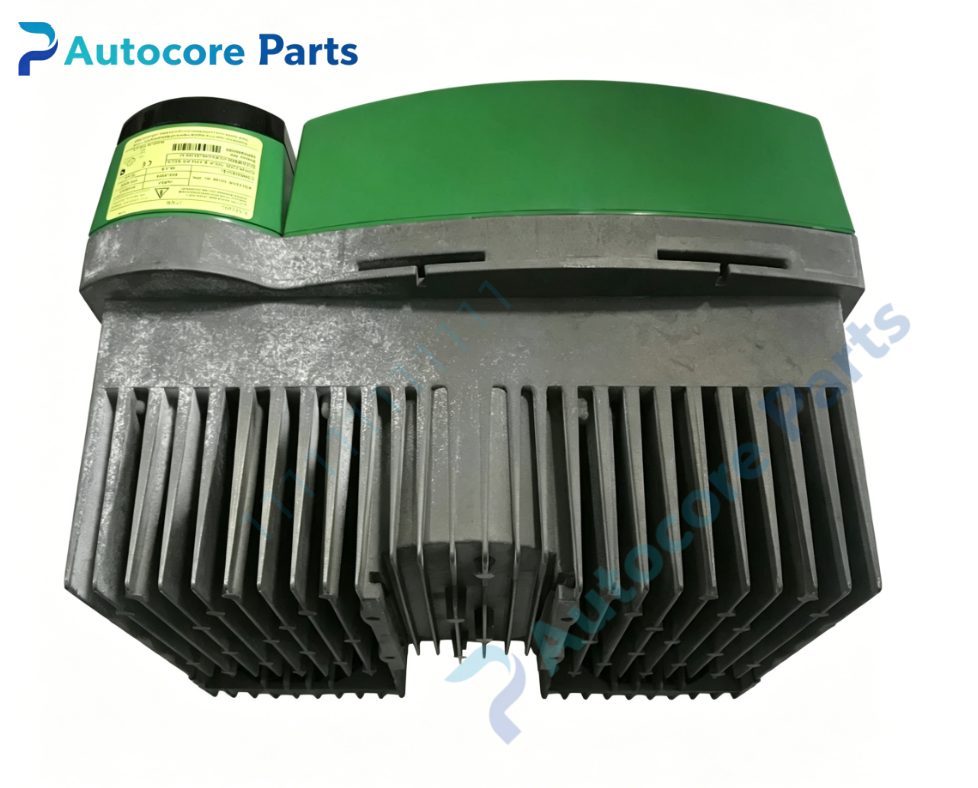

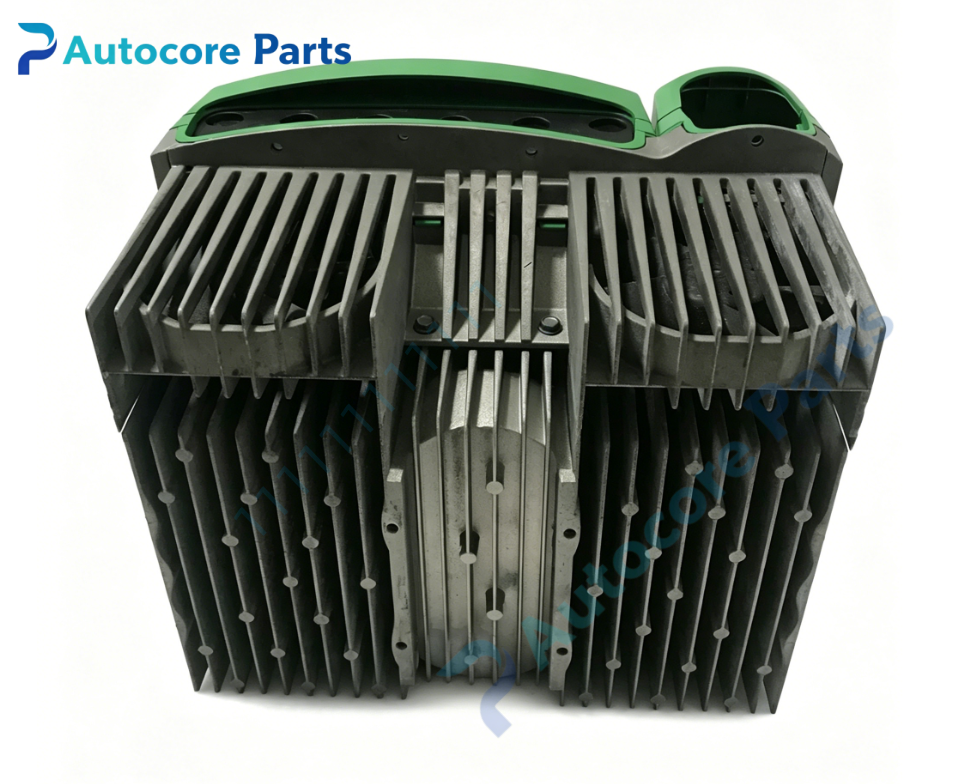

Control Techniques UNI3405 Unidrive Classic AC Drive Unit

Module Feature

UNI3405 belongs to Unidrive Classic high-performance universal AC drive manufactured by Control Techniques,rated 37kW(50HP). It supports open-loop V/F,open-loop vector,closed-loop flux vector and four-quadrant servo/regeneration control,compatible with standard induction motors and Unimotor FM permanent magnet servo motors. Built-in encoder interface and optional expansion slots for fieldbus communication and motion control modules. Widely used in heavy-duty winding machines,extruders,large machine tools and equipment requiring regenerative braking.

Working principle

Three-phase 50/60Hz AC mains is rectified to DC bus. IGBT power stage outputs adjustable voltage and frequency AC. Regeneration version feeds motor braking energy back to power grid for energy saving. The drive receives analog,digital or fieldbus command signal; encoder feedback enables high-precision closed-loop torque,speed and position control.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,LED status panel,dynamic braking transistor,heat sink,power terminal block,control I/O terminal block,encoder interface.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,encoder signal loss detection.

Programming software

Unidrive Tools software,supports motor auto-tune,real-time motion monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:UNI3405 Brand:Control Techniques Device type:Unidrive Classic Universal AC Drive Rated power:37kW Rated output current:70A Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Overload:150% short-time overload capacity Control mode:V/F,open-loop vector,closed-loop vector,servo,regeneration Feedback:Incremental,SinCos,SSI,resolver via option modules Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive Classic high power universal drive for heavy-load four-quadrant industrial motion applications

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve enough ventilation clearance.Separate power cable and signal wiring to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and signal test before commissioning.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,option module slot,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input mains fluctuation or phase missing.

Product Brief

Control Techniques UNI3405 Unidrive Classic universal AC drive,37kW,380-480V three phase input,supports four-quadrant regeneration and high dynamic servo control,designed for heavy-duty industrial automation and energy-saving applications.
