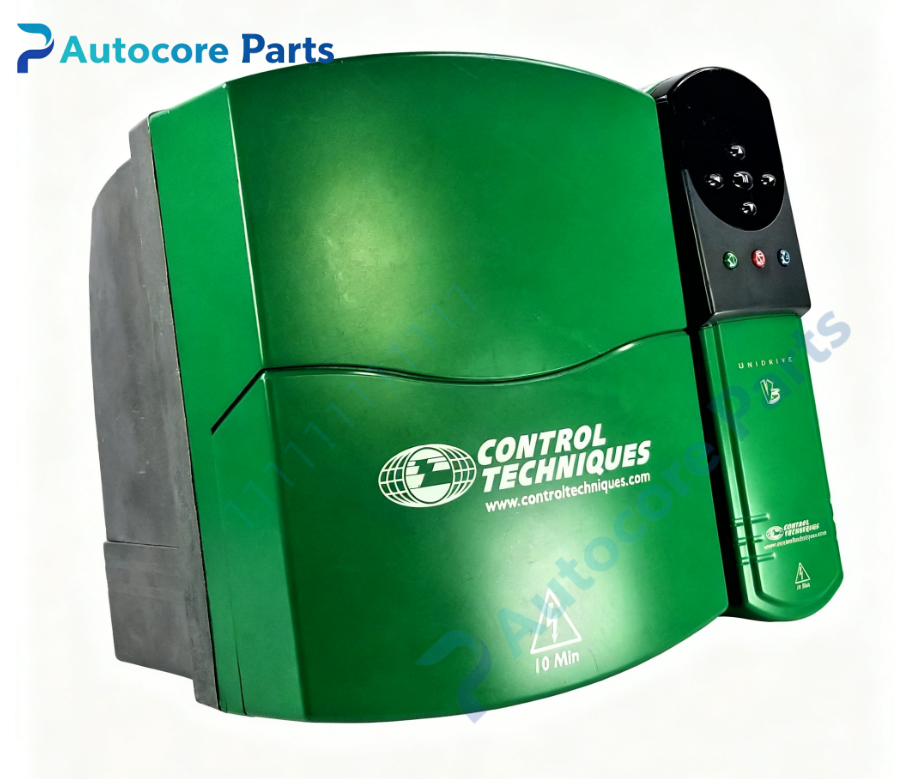

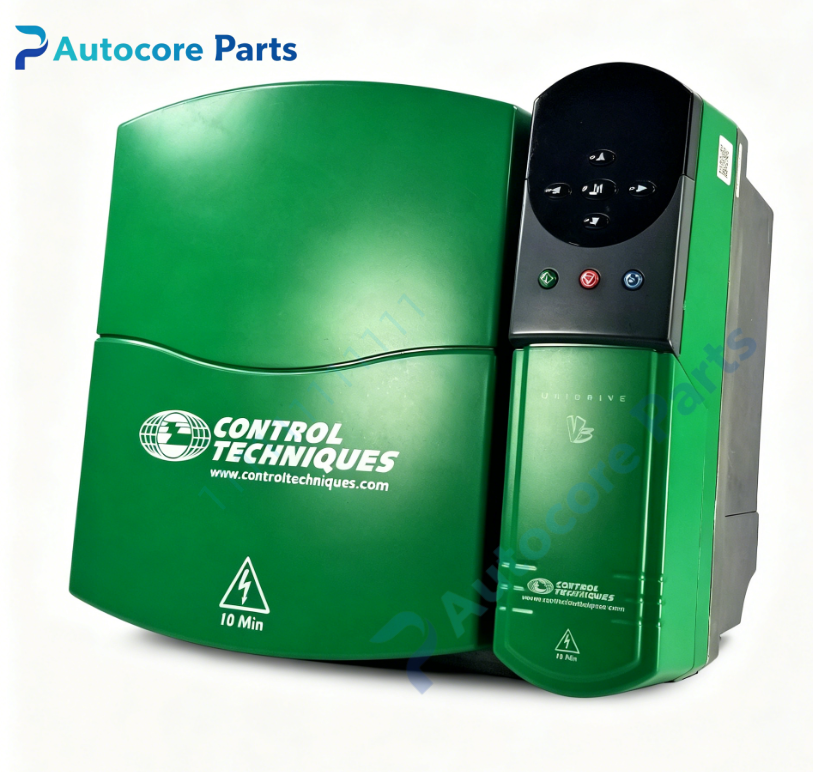

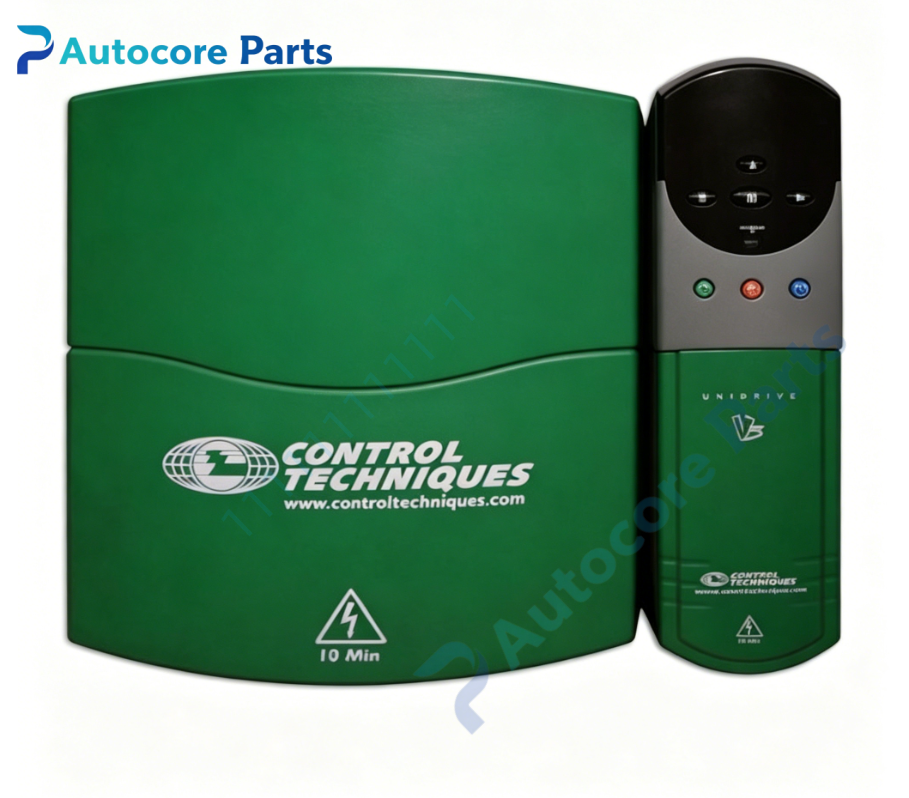

Control Techniques Unidrive 30kW Universal Motion Drive Unit

Module Feature

This 30kW Unidrive universal AC drive is manufactured by Control Techniques, supporting 50Hz / 60Hz grid input frequency. It provides V/F, open-loop vector, closed-loop vector and high-performance servo control modes for induction motors and Unimotor permanent magnet servo motors. Rich digital & analog I/O terminals and optional expansion slots for encoder feedback and fieldbus communication. Widely used in machine tools, winding machines, metal processing and heavy-duty automation equipment.

Working principle

Three-phase AC power at 50/60Hz is rectified to DC bus voltage. IGBT power module converts DC into adjustable frequency and adjustable voltage AC output. The drive receives motion command from upper controller, compares command value with encoder feedback signal to realize closed-loop torque, speed and position regulation. Built-in brake transistor handles regenerative energy during motor deceleration.

Onboard components

Input rectifier bridge,IGBT power stage,main control PCB,status LED panel,dynamic braking transistor,heat sink,control terminal block,expansion card slots.

LED indicators

Power indicator,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,encoder signal loss,motor overload,phase loss detection.

Programming software

Unidrive Tools software,supports motor auto-tune,real-time motion monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:Unidrive 30kW Brand: Control Techniques Device type: Universal AC Drive Rated power:30kW Input voltage:380 ~ 480VAC three phase Input frequency:50 / 60Hz Control mode:V/F,open vector,closed vector,servo control Feedback:Incremental, SinCos, SSI, resolver via option module Cooling:Forced air cooling Protection:Over current,over voltage,under voltage,overheat,short circuit,earth fault

Mechanical & Structure

Mounting:Panel mounting Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive 30kW universal drive for industrial motor and servo motion control

Installation

Follow ESD safety procedure before handling.Mount vertically in control cabinet with sufficient ventilation clearance.Connect three-phase mains power to L1/L2/L3 terminals and motor cable to U/V/W terminals.Use shielded cable for encoder and control I/O wiring to reduce EMI interference.Complete motor auto-tune before commissioning.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,expansion card slot,keypad port.

Diagnostic

Over current:motor winding short circuit,damaged cable or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware failure. Under voltage:input power fluctuation or phase missing.

Product Brief

Control Techniques Unidrive 30kW universal AC drive,50/60Hz three phase input,multi-mode vector and servo control,supports induction and permanent magnet motors for high dynamic industrial automation applications.
