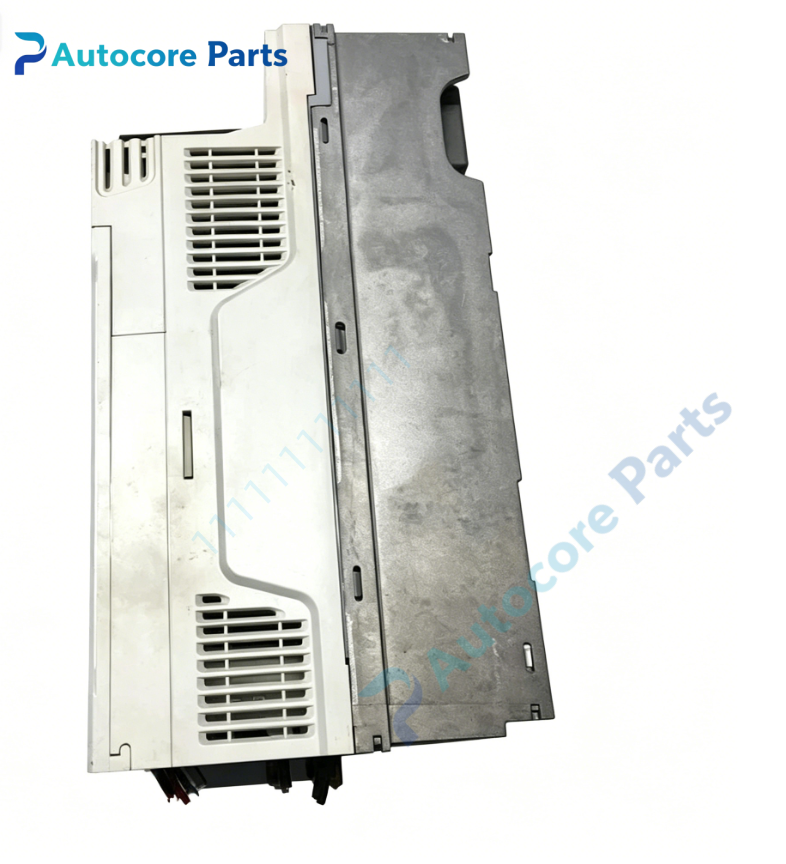

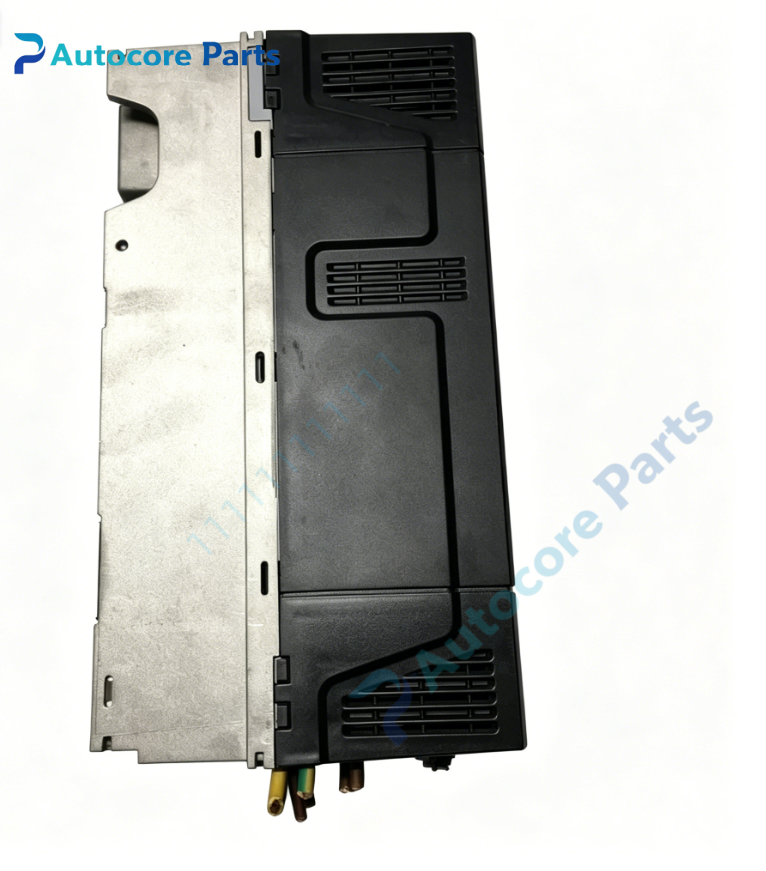

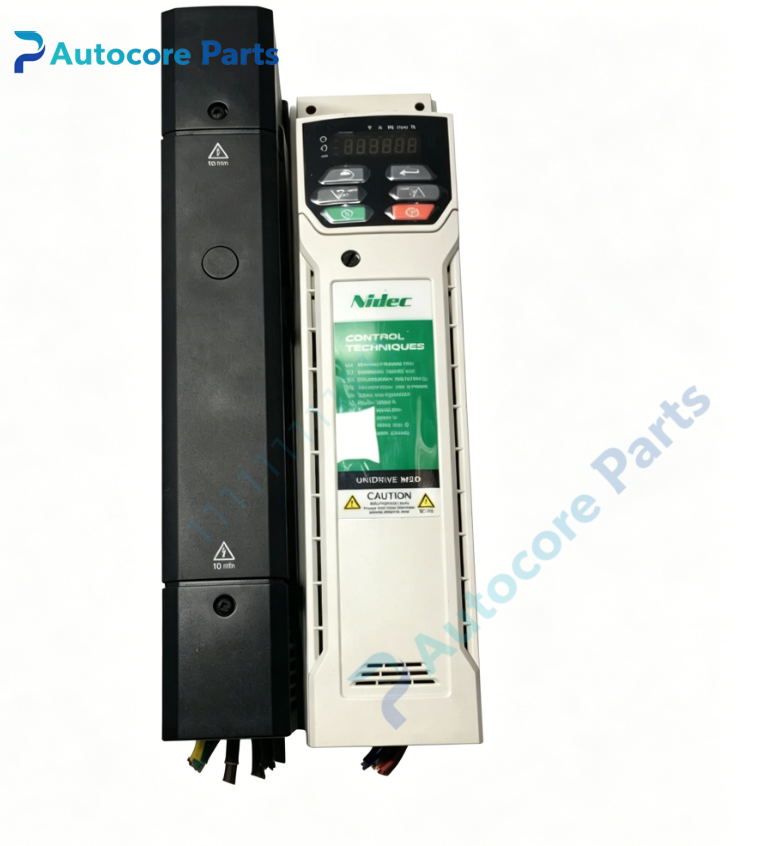

Control Techniques Unidrive M200 AC Drive Unit

Module Feature

Unidrive M200 belongs to Unidrive M series general-purpose AC drive manufactured by Control Techniques. Heavy duty power range from 0.25kW to 110kW, normal duty up to 132kW. It supports V/F,open-loop vector and RFC-A rotor flux control for induction motors. Built-in simple PLC function, flexible digital and analog I/O terminals, one option slot for fieldbus communication modules. It is equipped with fixed LED keypad and supports parameter cloning via SD card. Widely used in fans,water pumps,mixers,conveyors and general factory automation equipment.

Working principle

Three-phase AC mains power is rectified to DC bus. IGBT power stage outputs adjustable voltage and frequency AC to regulate induction motor speed and torque. Accepts analog,digital or fieldbus command signals. RFC-A algorithm provides high stability open-loop motor control. Built-in dynamic braking transistor absorbs regenerative energy during deceleration.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,LED keypad panel,dynamic braking transistor,temperature controlled cooling fan,power terminal block,control I/O terminal block,option module connector.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload detection.

Programming software

Unidrive M Connect software,supports motor auto-tune,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:Unidrive M200 Brand:Control Techniques Device type:Unidrive M General Purpose AC Drive Heavy duty rating:0.25~110kW Normal duty rating:0.25~132kW Input voltage:380 ~ 480VAC three phase Input frequency:45~65Hz Control mode:V/F,open-loop vector,RFC-A rotor flux control Feedback:Encoder feedback available via option module Communication:RS485 Modbus RTU Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification:CE,UL compliant Status: Control Techniques Unidrive M200 general purpose drive for fan, pump and conveyor applications

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,option module slots,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input mains fluctuation or phase missing. Unstable motor speed:incorrect motor parameters or poor shielding of signal wires.

Product Brief

Control Techniques Unidrive M200 general purpose AC variable frequency drive,0.25~110kW heavy duty /0.25~132kW normal duty,380-480V three phase input,open loop RFC-A control,built-in PLC and SD card parameter cloning for fan, pump and conveyor automation.
