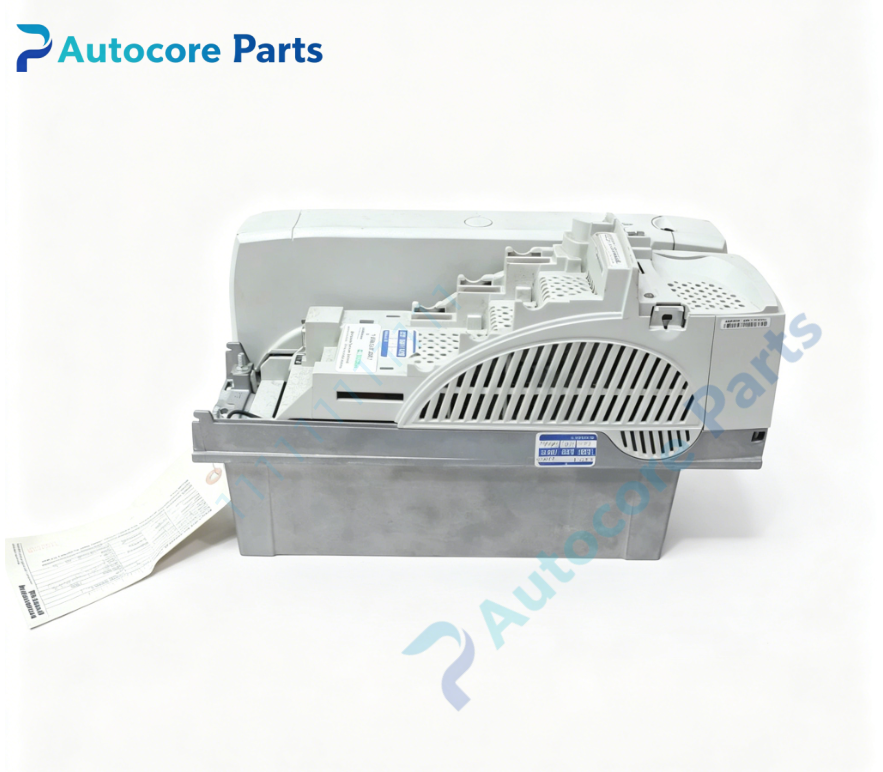

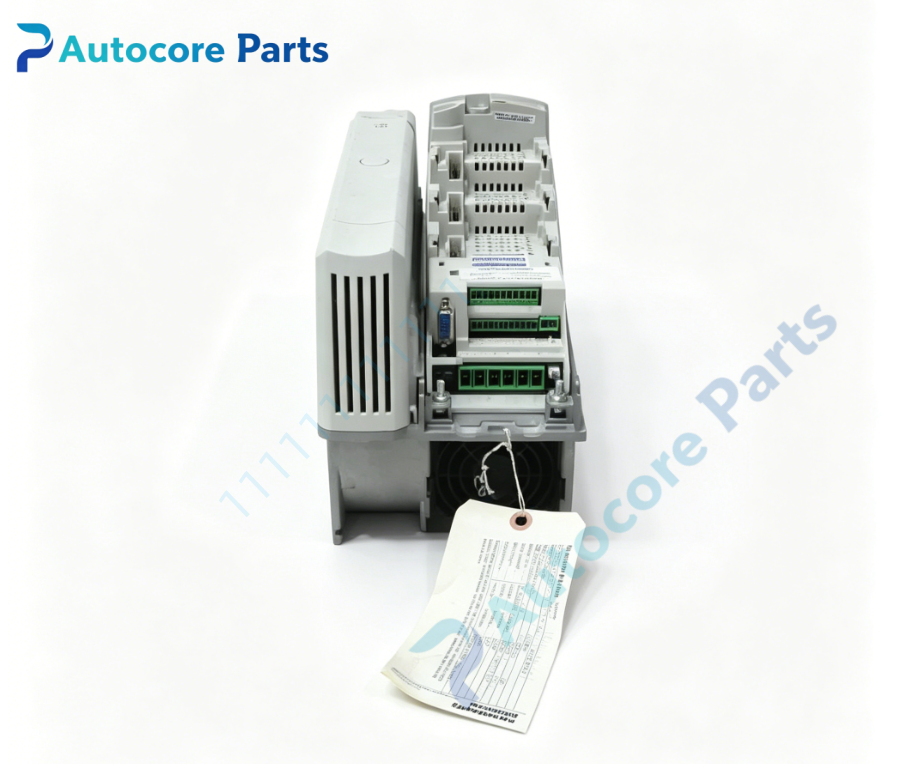

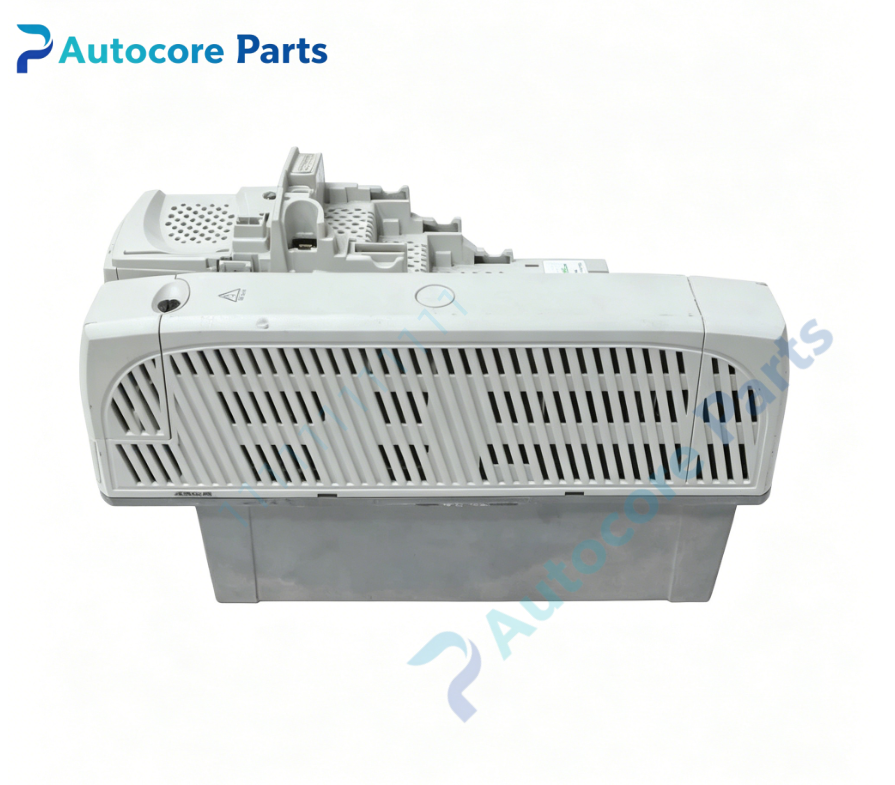

Control Techniques Unidrive SP2401 High Performance AC Drive Unit

Module Feature

SP2401 belongs to Unidrive SP series universal AC drive manufactured by Control Techniques. Rated 5.5kW heavy duty,7.5kW normal duty. It supports V/F, open-loop vector, closed-loop vector and RFC servo control, compatible with asynchronous induction motors and Unimotor FM permanent magnet servo motors. Equipped with SM option slots for encoder feedback, fieldbus communication and motion control modules. Built-in dynamic braking transistor, widely used in conveyors, winding machines, packaging equipment and general factory automation.

Working principle

Three-phase 50/60Hz AC mains is rectified to DC bus voltage. IGBT power module converts DC into adjustable voltage and frequency AC to regulate motor speed and torque. The drive accepts analog, digital or fieldbus command signals; encoder feedback enables high-precision closed-loop speed and position control. Built-in braking circuit absorbs regenerative energy during motor deceleration.

Onboard components

Input rectifier bridge,IGBT power stage,main control PCB,LED status panel,dynamic braking transistor,heat sink,SM option slot,power terminal block,control I/O terminal block.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,encoder signal loss detection.

Programming software

CTSoft software,supports motor auto-tune,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:SP2401 Brand:Control Techniques Device type:Unidrive SP Universal AC Drive Heavy duty rating:5.5kW,continuous output current 13A Normal duty rating:7.5kW,continuous output current 15.3A Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Control mode:V/F,open-loop vector,closed-loop vector,RFC servo control Feedback:Incremental,SinCos,SSI,resolver via SM option module Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive SP universal drive for medium-load industrial motor and servo motion control

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Use shielded cable for encoder and control I/O wiring to reduce EMI interference.Complete motor auto-tune before commissioning.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,SM expansion slot,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input mains fluctuation or phase missing.

Product Brief

Control Techniques Unidrive SP2401 universal AC variable frequency drive,5.5kW heavy duty /7.5kW normal duty,380-480V three phase input,supports vector and servo control,expandable with SM option modules for medium-load industrial automation applications.
