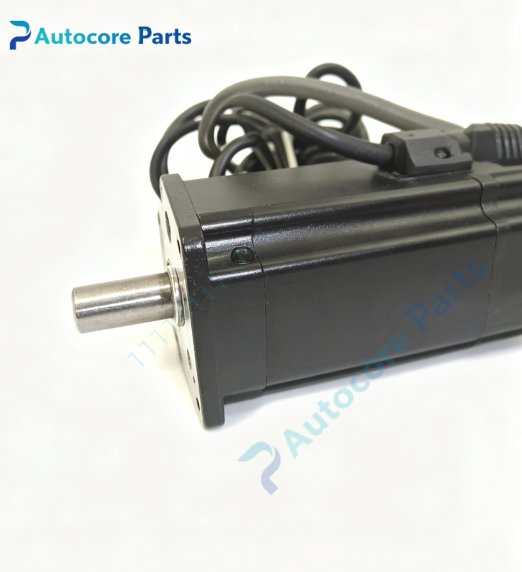

DANAHER MOTION 401-30250-00 Servo Motor

Technical Specifications

Model：401-30250-00 Brand：DANAHER MOTION Product Type: YSM212 series permanent magnet brushless rotary servo motor for industrial CNC motion control

Motor Feature: Motor type: Brushless permanent magnet synchronous motor Feedback device: Built-in resolver Output characteristic: High continuous torque,strong overload capability,low torque ripple Rotation direction: CW / CCW reversible

Electrical Parameters: Rated voltage: 230VAC Rated speed: 2500 rpm Rated torque: 9.6 Nm Rated current: 7.8A

Mechanical & Structure: Shaft: Keyway output shaft Housing: Reinforced cast aluminum alloy housing Mounting: Flange mounting Protection class: IP65

Environmental: Operating temperature: -20℃ ~ +40℃ Ambient humidity:0~85% non-condensing Certification: UL, CE approved Weight: Approx 6.3kg

System compatibility

401-30250-00 (YSM212) belongs to DANAHER MOTION Giddings & Lewis servo motor family. Compatible with G&L / DANAHER M series servo drives and Giddings & Lewis CNC controllers. Widely applied in heavy-duty CNC machine tools,lathes and milling equipment.

Function

401-30250-00 is brushless permanent magnet servo motor manufactured by DANAHER MOTION. It converts electrical energy into precise rotary mechanical power under servo amplifier control. Integrated resolver feeds real-time position and speed signals back to realize closed-loop control, providing stable high torque output for heavy-load CNC axis.

Installation

Follow lockout/tagout safety procedure before installation. Mount the motor flange on machine base. Connect power cable and resolver feedback cable strictly follow G&L hardware wiring manual. Complete mechanical alignment, home position calibration and running test during commissioning.

Interface

Power connector,resolver feedback connector,keyway shaft,flange mounting holes,aluminum alloy housing for DANAHER MOTION 401-30250-00.

Feature

Original DANAHER MOTION 401-30250-00 YSM212 servo motor,high overload resistance,resolver feedback,IP65 protection grade,rugged industrial design,UL & CE certified. This spare unit is used for heavy-load CNC machine axis drive,motion system maintenance and hardware replacement.

Diagnostic

Motor no rotation: Inspect servo drive enable signal,power wiring and resolver connection. Abnormal noise: Check coupling alignment,bearing wear and mechanical jamming. Overheat alarm: Evaluate load level,ambient temperature and ventilation condition. Position drift: Inspect resolver wiring,shield grounding and mechanical backlash.

Product Brief

401-30250-00 (YSM212) is DANAHER MOTION heavy-duty permanent magnet brushless servo motor,matched with Giddings & Lewis servo drive system,classic spare component for heavy CNC machine tools and industrial motion control.
