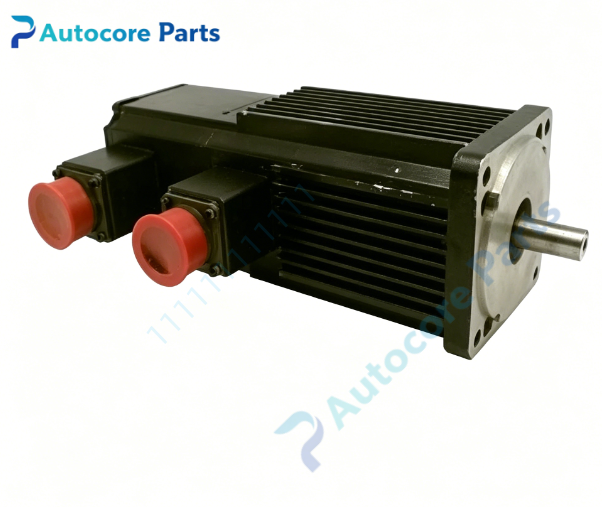

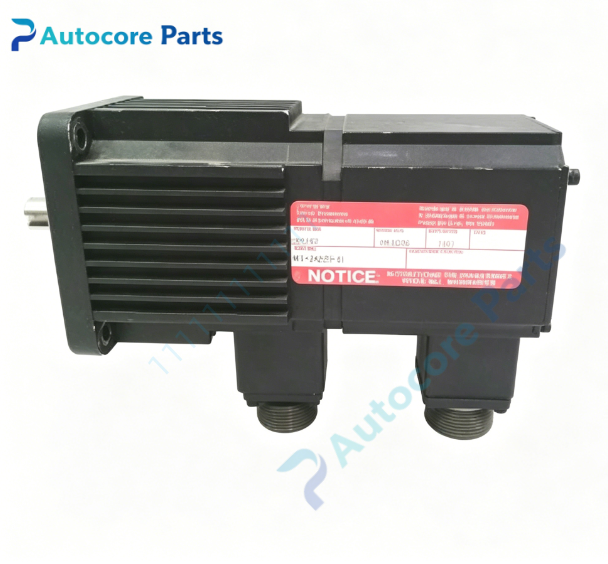

DANAHER MOTION 401-34438-00 Servo Motor

Technical Specifications

Model：401-34438-00 Brand：DANAHER MOTION Product Type: Permanent magnet brushless rotary servo motor for industrial motion control

Motor Feature: Motor type: Brushless permanent magnet synchronous motor Feedback device: Built-in incremental encoder Output characteristic: Low cogging torque,strong overload capacity Rotation direction: CW / CCW reversible

Electrical Parameters: Rated voltage: 230VAC Rated speed: 3000 rpm Rated torque: 4.8 Nm Rated current: 6.2A

Mechanical & Structure: Shaft: Keyway output shaft Housing: Aluminum alloy housing Mounting: Flange mounting Protection class: IP65

Environmental: Operating temperature: -20℃ ~ +40℃ Ambient humidity:0~85% non-condensing Certification: UL, CE approved Weight: Approx 4.7kg

System compatibility

401-34438-00 belongs to DANAHER MOTION servo motor family. Compatible with matching DANAHER MOTION servo drives and mainstream PLC motion controllers. Widely applied in CNC machine tools, heavy packaging machinery and medium-heavy load material handling automation equipment.

Function

401-34438-00 is brushless permanent magnet servo motor manufactured by DANAHER MOTION. It converts electrical energy into precise rotary mechanical power controlled by servo amplifier. Integrated encoder feeds real-time position and speed signals back to realize closed-loop control, providing stable high torque output for medium-heavy load automation motion axis

Installation

Follow lockout/tagout safety procedure before installation. Mount the motor flange on machine base. Connect power cable and encoder cable strictly follow DANAHER MOTION official wiring manual. Complete mechanical alignment, home position calibration and running test during commissioning.

Interface

Power connector,encoder connector,keyway shaft,flange mounting holes,aluminum alloy housing for DANAHER MOTION 401-34438-00.

Feature

Original DANAHER MOTION 401-34438-00 brushless servo motor,high torque density,strong overload resistance,smooth rotation,IP65 protection grade,UL & CE certified. This spare unit is used for medium-heavy load automation equipment axis drive,motion system maintenance and hardware replacement.

Diagnostic

Motor no rotation: Inspect servo drive enable signal,power wiring and encoder connection. Abnormal noise: Check coupling alignment,bearing wear and mechanical jamming. Overheat alarm: Evaluate load level,ambient temperature and ventilation condition. Position drift: Inspect encoder wiring,shield grounding and mechanical backlash.

Product Brief

401-34438-00 is DANAHER MOTION permanent magnet brushless servo motor with high torque density,matched with Danaher servo drives,classic spare component for CNC and medium-heavy load automation machinery motion axis.
