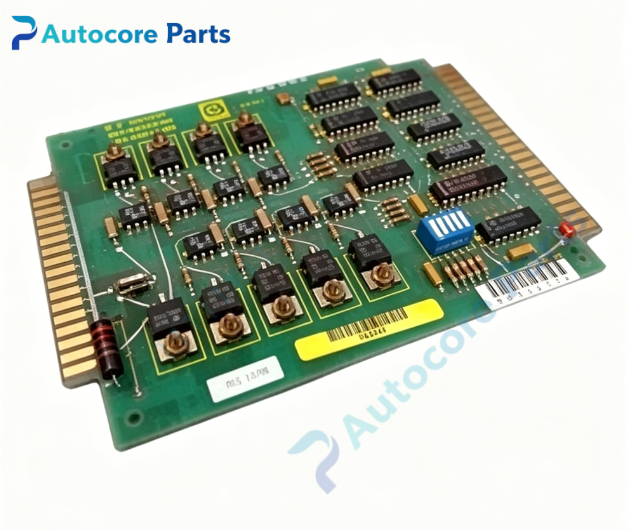

DANAHER MOTION 501-03203-01 Servo Control Board

Technical SpecificationsModel：501-03203-01 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: 4-axis servo control gold finger printed circuit board assembly for legacy CNC motion control rack

Board Feature:Channel:4 independent analog servo command channels Function:Receive digital position commands from CNC CPU,convert digital data into differential analog velocity reference signals for 4 separate servo amplifiers High-precision DAC signal conditioning circuit Surge protection and op-amp signal buffering On-board LED indicators for channel hardware diagnostic Gold finger edge connector for rack backplane connection

Electrical Parameters:Backplane supply:+5VDC, ±15VDC from CNC rack Output signal:Differential analog velocity command High noise immunity differential analog output

Mechanical & Structure:Housing:PCB assembly with metal retention bracket Mounting:Plug-in installation for Giddings & Lewis CNC rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-03203-01 belongs to DANAHER MOTION Giddings & Lewis legacy CNC rack family. Compatible with older Giddings & Lewis CPU board,encoder feedback cards and I/O interface boards. Widely used on heavy boring mills,vertical turning centers and large horizontal machining centers.

Function

501-03203-01 is four-axis analog servo control PCB board manufactured by DANAHER MOTION Giddings & Lewis. It receives digital position instructions from CNC main CPU,converts digital position data to analog velocity commands via high resolution DAC chip. The analog signals are sent to servo amplifiers to drive 4 independent machine axes. It also receives encoder feedback data to complete closed-loop positioning calculation. On-board LEDs help maintenance staff quickly verify each servo channel working state.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off CNC rack power supply. Insert 501-03203-01 gold finger card into empty rack slot and lock retention bracket. Wire analog command and encoder feedback cables following Giddings & Lewis hardware manual. Power on,perform axis calibration and multi-axis motion test after wiring.

Interface

Gold-edge backplane connector,analog servo signal terminal block,on-board status LED indicator for DANAHER MOTION 501-03203-01.

Feature

Original DANAHER MOTION 501-03203-01 4-axis analog servo control board,precision DAC analog command generation,built-in signal surge protection,gold finger rack plug-in design,LED channel diagnostic indicators,UL & CE certified. This spare unit is used for legacy heavy CNC machine multi-axis servo control system maintenance and hardware replacement.

Diagnostic

Single axis no motion:Check DAC channel output,analog command wiring and encoder feedback. Axis drift or jitter:Inspect ±15V rack power supply,signal shielding and grounding condition. Board communication error:Check gold finger contact integrity and backplane power.

Product Brief

501-03203-01 is DANAHER MOTION Giddings & Lewis legacy rack mount 4-axis analog servo control PCB board,converts CNC digital commands to analog velocity reference for multi-axis closed-loop machine control,discontinued rack spare card.
