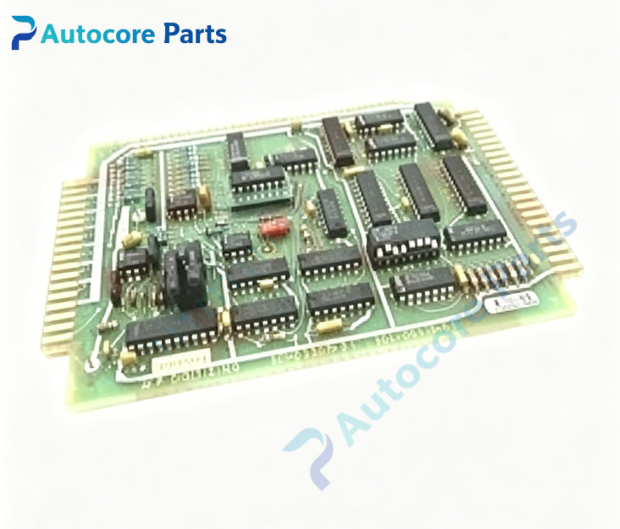

DANAHER MOTION 501-03207-01 Encoder Feedback Board

Technical SpecificationsModel：501-03207-01 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Rack plug-in encoder feedback printed circuit board assembly for CNC motion control system

Board Feature:Function: Receive, buffer and condition differential A/B/Z quadrature encoder signals from machine axis encoders High-speed pulse counting and position data latching for closed-loop positioning Built-in ESD and surge protection for encoder signal lines On-board diagnostic LEDs for real-time signal integrity monitoring Gold finger edge connector for rack backplane communication Support differential line driver incremental encoder signals

Electrical Parameters:Supply voltage:+5VDC, ±15VDC from CNC rack backplane Encoder input:5V differential quadrature A/B/Z signals Galvanic surge protection between encoder field wiring and rack logic

Mechanical & Structure:Housing:PCB assembly with metal retention bracket Mounting:Plug-in installation into Giddings & Lewis CNC rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-03207-01 belongs to DANAHER MOTION Giddings & Lewis legacy CNC rack family. Compatible with older Giddings & Lewis CPU board, analog servo axis control boards. Widely installed on heavy-duty boring mills, vertical turning centers and large horizontal machining centers.

Function

501-03207-01 is encoder feedback processing PCB board manufactured by DANAHER MOTION Giddings & Lewis. It collects differential quadrature encoder signals from axis rotary or linear encoders. The board counts encoder pulses and transmits real-time axis position information to CNC CPU for closed-loop motion control. On-board LED indicators allow maintenance staff quickly verify encoder signal health.

Installation

Follow lockout/tagout safety procedure before installation. Fully power off CNC rack. Insert 501-03207-01 gold finger card into vacant rack slot and lock the retainer. Connect encoder cable assembly to terminal block following Giddings & Lewis hardware manual. After wiring, test encoder signal and axis homing routine.

Interface

Gold-edge backplane connector, encoder signal terminal block, on-board status LED indicator for DANAHER MOTION 501-03207-01.

Feature

Original DANAHER MOTION 501-03207-01 encoder feedback PCB board,differential quadrature signal reception,ESD & surge protection,LED diagnostic indicators,gold finger rack plug-in design,anti-EMI circuit,UL & CE certified. This spare unit is used for legacy heavy CNC machine axis closed-loop feedback system maintenance and hardware replacement.

Diagnostic

No position reading: Check encoder cable wiring, 5V supply and A/B/Z differential signals. Position count skipping: Inspect cable shielding, grounding and coupling mechanical backlash. Board communication failure: Verify gold finger contact condition and rack backplane power.

Product Brief

501-03207-01 is DANAHER MOTION Giddings & Lewis legacy rack mount encoder feedback PCB board,for quadrature encoder signal acquisition and axis position feedback of heavy-duty CNC machine tools,discontinued spare card.
