DANAHER MOTION 501-043-00 Interface Board

Technical SpecificationsModel：501-043-00 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Rack plug-in printed circuit board assembly for CNC motion control system

Board Feature:Function: Digital and analog signal buffering, level conversion and surge filtering between CNC rack and machine field devices Integrated ESD and transient surge protection circuits On-board LED diagnostic indicators for real-time signal status monitoring Gold finger edge connector for backplane rack communication Signal isolation circuit to reduce electromagnetic interference

Electrical Parameters:Backplane supply:+5VDC, ±15VDC supplied from CNC rack power Signal: TTL / differential analog signal processing Isolation rating: Surge isolation between control side and machine field side

Mechanical & Structure:Housing:PCB assembly with metal retention bracket Mounting:Plug-in installation into Giddings & Lewis CNC rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-043-00 belongs to DANAHER MOTION Giddings & Lewis legacy CNC rack family. Compatible with older Giddings & Lewis CPU, servo axis boards and I/O modules. Widely deployed on heavy-duty boring mills, vertical turning centers and horizontal machining centers.

Function

501-043-00 is interface PCB board manufactured by DANAHER MOTION Giddings & Lewis. It serves as signal conditioning bridge between CNC rack control logic and machine field peripherals. It buffers digital and analog signals, suppresses electrical noise and transient surges to protect main control cards. The onboard LEDs help maintenance technicians quickly check signal state for fault troubleshooting.

Installation

Follow lockout/tagout safety procedure before installation. Power off the entire CNC rack. Insert 501-043-00 gold finger card into empty rack slot and lock retention bracket. Wire field signal cables following Giddings & Lewis hardware manual. After wiring, power on and run signal communication test.

Interface

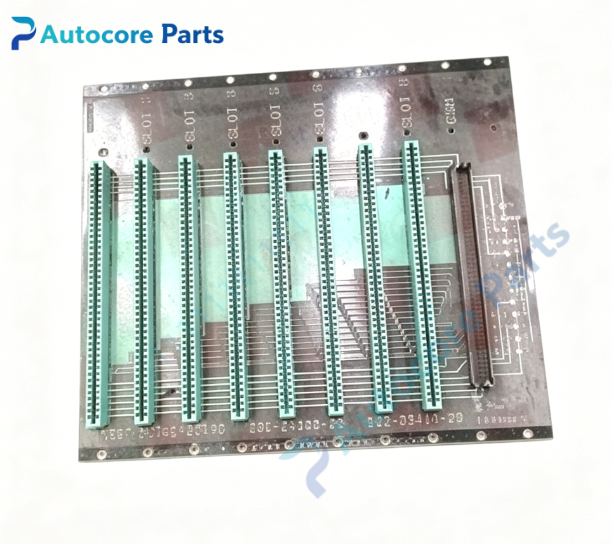

Gold-edge backplane connector, field signal terminal block, on-board status LED indicator for DANAHER MOTION 501-043-00.

Feature

Original DANAHER MOTION 501-043-00 CNC interface PCB board,rack gold finger plug-in design,signal surge filtering & ESD protection,LED diagnostic indicators,anti-EMI circuit,UL & CE certified. This spare unit is used for legacy heavy CNC machine control system maintenance and hardware replacement.

Diagnostic

No signal transmission: Check rack backplane power and gold finger contact tightness. Intermittent signal drop: Inspect cable shielding, grounding and surrounding electromagnetic interference. LED fault alarm: Troubleshoot overvoltage or short circuit on field signal lines.

Product Brief

501-043-00 is DANAHER MOTION Giddings & Lewis legacy rack mount CNC interface PCB board,for signal conditioning and peripheral connection of heavy-duty CNC machine control system,discontinued spare card.
