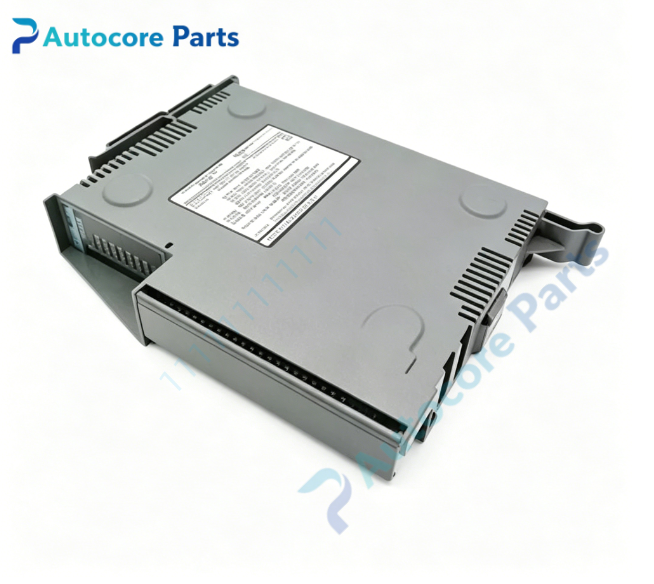

DANAHER MOTION M.1016.9070 Output Module

Technical SpecificationsModel：M.1016.9070 (Revision R1) Brand：DANAHER MOTION (Giddings & Lewis) Product Type: PIC900 series isolated digital output module for CNC motion control system

Module Feature:Channel:32 isolated digital output points Per channel rating:0.4A max per point Output voltage range:5VDC ~32VDC Built-in channel isolation, short-circuit protection for each point Diagnostic LED for each channel status indication Hot swap capable under qualified cabinet configuration

Electrical Parameters:Module supply:24VDC backplane power from PIC900 rack Output load:5~32VDC external field power Max total output current:Sum of all 32 channels limited by load supply

Mechanical & Structure:Housing:Metal rack mount module Mounting:Plug-in rack installation for PIC900 backplane Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued spare part

System compatibility

M.1016.9070 belongs to DANAHER MOTION Giddings & Lewis PIC900 I/O family. Works with PIC900 controller rack, matched with DSM series servo drives. Widely used on heavy-duty CNC boring, milling and turning machine tools.

Function

M.1016.9070 is 32-channel isolated digital output module manufactured by DANAHER MOTION Giddings & Lewis. It receives logic commands from PIC900 controller via backplane bus, drives external field devices such as relays, solenoid valves and indicator lights. Galvanic isolation separates CNC control logic and field side circuits to suppress electrical noise and protect main controller. Each channel has individual short-circuit protection.

Installation

Follow lockout/tagout safety procedure before installation. Power off the PIC900 rack, insert M.1016.9070 into available rack slot and lock the module handle. Wire field output cables to terminal connector strictly follow PIC900 hardware manual. After wiring, power up and perform I/O point test during commissioning.

Interface

Backplane connector for PIC900 rack, field output terminal block, channel status LED indicator for DANAHER MOTION M.1016.9070.

Feature

Original DANAHER MOTION M.1016.9070 32-point isolated output module,0.4A per channel,individual short-circuit protection,LED channel diagnostics,rack plug-in design,UL & CE certified. This spare unit is used for CNC machine I/O expansion and system maintenance replacement.

Diagnostic

Channel no output: Check 5~32VDC field power, wiring and point status in controller software. LED alarm: Inspect short circuit or overload on corresponding output channel. Module offline: Verify backplane connection, rack power supply and module slot address.

Product Brief

M.1016.9070 is DANAHER MOTION Giddings & Lewis PIC900 32-channel isolated digital output module,0.4A per point,for heavy-duty CNC machine digital I/O control,classic rack mount spare part.
