DANAHER MOTION NSM2302 B24 Servo Motor

Technical SpecificationsModel：NSM2302 B24 Brand：DANAHER MOTION Product Type: NSM series permanent magnet brushless rotary servo motor for industrial motion control

Motor Feature: Motor type: Brushless permanent magnet synchronous motor Feedback device: Built-in incremental encoder Output characteristic: Low torque ripple,stable continuous torque,B24 integrated holding brake Rotation direction: CW / CCW reversible

Electrical Parameters: Rated voltage: 230VAC Rated speed: 3000 rpm Rated torque: 3.4 Nm Rated current:3.4A

Mechanical & Structure: Shaft: Keyway output shaft Housing: Cast aluminum alloy housing Mounting: Flange mounting Protection class: IP65

Environmental: Operating temperature: -20℃ ~ +40℃ Ambient humidity:0~85% non-condensing Certification: UL, CE approved Weight: Approx 3.2kg

System compatibility

NSM2302 B24 belongs to DANAHER MOTION NSM servo motor family. Compatible with DANAHER MMC-SD / M series servo drives and Giddings & Lewis motion controllers. Widely used for packaging equipment,material handling and light-load CNC single-axis motion applications.

Function

NSM2302 B24 is permanent magnet brushless servo motor manufactured by DANAHER MOTION. It converts electrical energy into precise rotary mechanical power controlled by servo amplifier. Integrated incremental encoder feeds back real-time position and speed signals for closed-loop control. The built-in B24 holding brake can lock motor shaft when power off to prevent axis slipping.

Installation

Follow lockout/tagout safety procedure before installation. Mount the motor flange on machine base. Connect power cable and encoder feedback cable strictly follow DANAHER MOTION official wiring manual. Complete mechanical alignment, homing calibration and running test during commissioning.

Interface

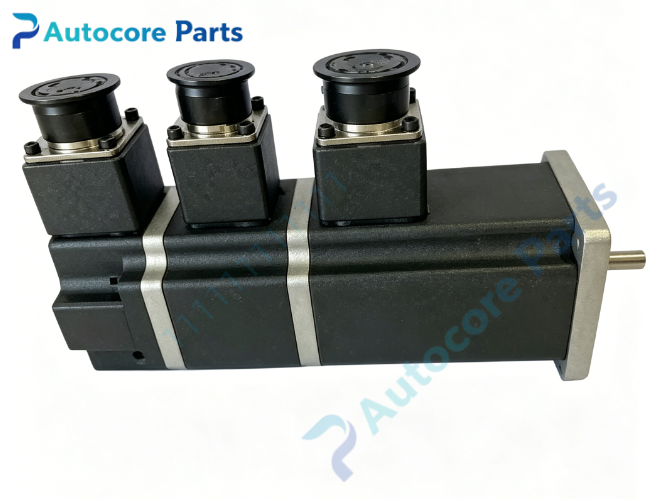

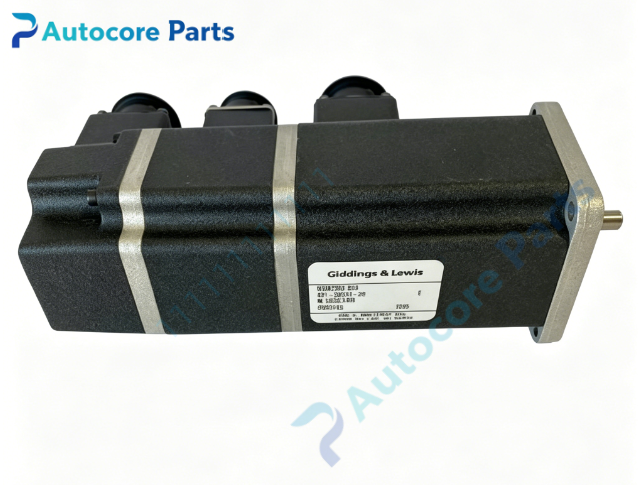

Power connector,encoder feedback connector,brake connector,keyway shaft,flange mounting holes,aluminum alloy housing for DANAHER MOTION NSM2302 B24.

Feature

Original DANAHER MOTION NSM2302 B24 brushless servo motor,with power-off holding brake,low torque ripple,IP65 protection,compact size,UL & CE certified. This spare unit is used for light-load automation equipment axis drive,motion system maintenance and hardware replacement.

Diagnostic

Motor no rotation: Inspect servo drive enable signal,power wiring and encoder connection. Abnormal noise: Check coupling alignment,bearing wear and mechanical binding. Overheat alarm: Evaluate load level,ambient temperature and ventilation condition. Brake failure: Check brake power supply and wiring. Position drift: Inspect encoder wiring,shield grounding and mechanical backlash.

Product Brief

NSM2302 B24 is DANAHER MOTION NSM series brushless servo motor with B24 holding brake,matched with MMC-SD / M series servo drives,classic spare component for light-load CNC and industrial automation machinery.
