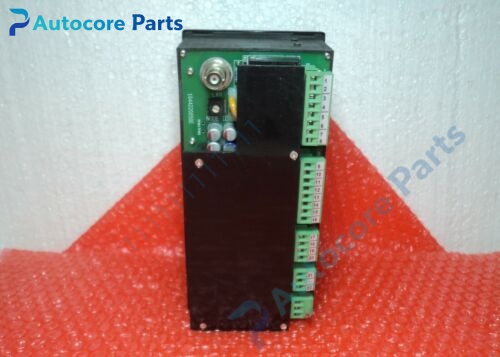

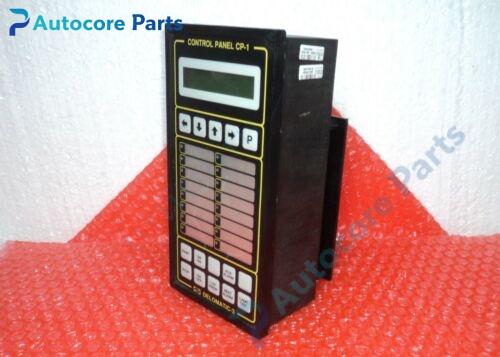

DEIF CP‑1 Delomatic‑3 Control Panel

Technical Specifications

Model:CP‑1

Brand:DEIF

System compatibility:HMI operator panel for DEIF Delomatic‑3 DGU rack system,communicates with CM‑2 main control module via ARC‑net bus,one DGU supports up to 3 CP‑1 panels;CP‑1 failure will not affect DGU control and protection logic

Function:Human‑machine‑interface for Delomatic‑3 generator control system,monitors generator voltage,frequency,power,alarm status;supports manual synchronisation,parameter configuration,alarm acknowledge and fault history query;LED status indicators for pre‑defined alarm and operating states

Installation:Front panel cut‑out mounting,installed on switchboard cabinet,connected via ARC‑net terminal connection

Interface:ARC‑net bus terminal block

Display:LCD segment display

Operation element:Navigation keys,function push‑buttons,multi‑function status LED indicators

Circuit feature:ARC‑net galvanic isolation,alarm latch function,fault event memory storage

Feature:Panel‑mount compact structure,marine classification approved,multiple panels can be installed on different operation positions,slave HMI unit,core control logic runs on DGU rack CM‑2 module

Diagnostic:Front‑panel LED indicates power supply and ARC‑net communication status,alarm LED reflects generator fault events

Power supply:24VDC external power supply

Protection class:Front panel IP40

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with DNV / GL marine environmental requirement

Weight:0.52kg

Dimensions:140mm ×240mm ×45mm

Certification:DNV,GL,LR,ABS,CE

Built‑in function

CP‑1 is the local remote HMI panel for DEIF Delomatic‑3 generator control system. It provides real‑time genset data viewing,manual synchronisation operation,parameter modification and alarm handling. Multiple CP‑1 can be deployed on different cabinet locations. HMI fault will not interrupt generator control and protection functions. Widely used for ship and offshore generator power‑station operation and monitoring.

Product Brief

CP‑1 belongs to DEIF Delomatic‑3 series marine power‑control‑system spare‑part family,ARC‑net HMI operator panel matched with DGU rack CM‑2 module. Max three CP‑1 panels per single DGU unit. Widely applied for marine generator control cabinet maintenance and renovation. ESD anti‑static protection shall be followed during installation.
