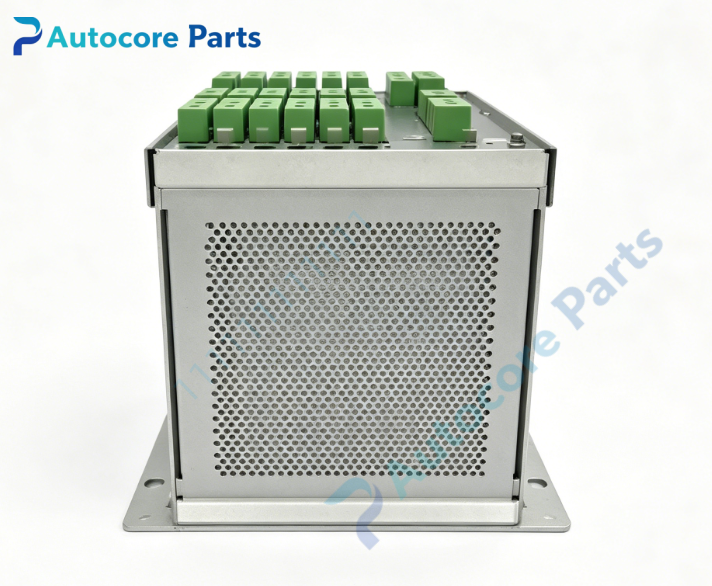

DEIF IOM4.2 Multifunctional I/O Control Module

Technical Specifications

Model:IOM4.2

Brand:DEIF

System compatibility:Special‑purpose plug‑in I/O module for DEIF DM‑4(Delomatic‑4) DGU rack,communicates via back‑plane DM‑4‑LAN bus with PCM4‑1 / PCM4‑5 main controller. Optimized for governor and AVR analogue regulation signals,complementary to general‑purpose IOM4.1 module.

Function:Multifunctional combined input‑output module. 4 multi‑configurable analogue inputs;4 analogue outputs including 2 PWM dedicated outputs for governor and AVR drive;4 digital dry‑contact inputs;4 potential‑free relay outputs. Analogue channels support current / voltage signal configuration,executes speed and voltage regulating output for genset control. Module address set by front‑panel rotary switch.

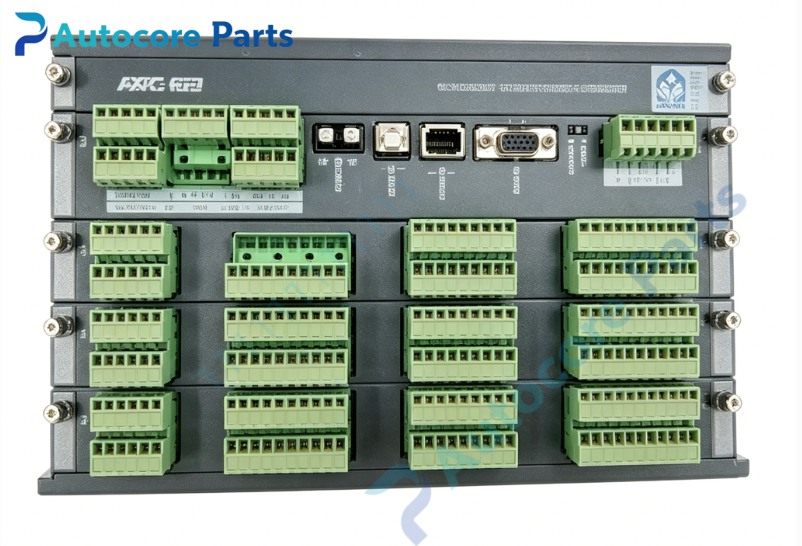

Installation:Plug‑in slot mounting inside DM‑4 DGU rack,6TE width back‑plane connection,screw terminal block for field wiring.

Interface:

‑Back‑plane DM‑4‑LAN internal bus

‑4 multi‑configurable analogue input terminals

‑4 analogue output terminals(2 PWM outputs included)

‑4 digital input terminals

‑4 potential‑free relay output terminals

‑Rotary switch for module address setting

Circuit feature:Galvanic isolation for analogue channels,PWM signal drive circuit,surge suppression for field terminals,hardware communication watchdog,parameter non‑volatile storage.

Feature:Marine classification approved,hot‑swap capable;specialized for governor‑AVR analogue regulating control,relay contact rating 250VAC / 24VDC 8A resistive load;analogue output max load 500Ω. Distinguished from general‑signal acquisition IOM4.1.

Diagnostic:Front‑panel LED indicates module power and back‑plane bus communication status;channel fault status transmitted to PCM main controller.

Power supply:Logic power supplied by PCM module via rack back‑plane,typical power consumption 4.2W

Protection class:IP20 when installed inside DGU rack

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with DNV marine environmental requirement

Weight:0.48kg

Dimensions:30.5mm ×234mm ×160mm

Certification:DNV,ABS,LR,CE,marine type approval

Built‑in function

IOM4.2 multifunctional I/O module provides analogue measuring and regulating drive signals for DEIF DM‑4 marine power management system. It is mainly used for governor speed control and AVR voltage adjustment,meanwhile collects field analogue and discrete signals. Widely used for ship and offshore generator power‑station automation cabinets.

Product Brief

IOM4.2 belongs to DEIF DM‑4 series marine power‑control‑system spare‑part family,rack‑mount multifunctional I/O module specialized for regulating outputs. Different from general‑purpose IOM4.1,focuses on governor‑AVR control. Module address rotary switch must be correctly set before commissioning. Widely applied for marine power‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
