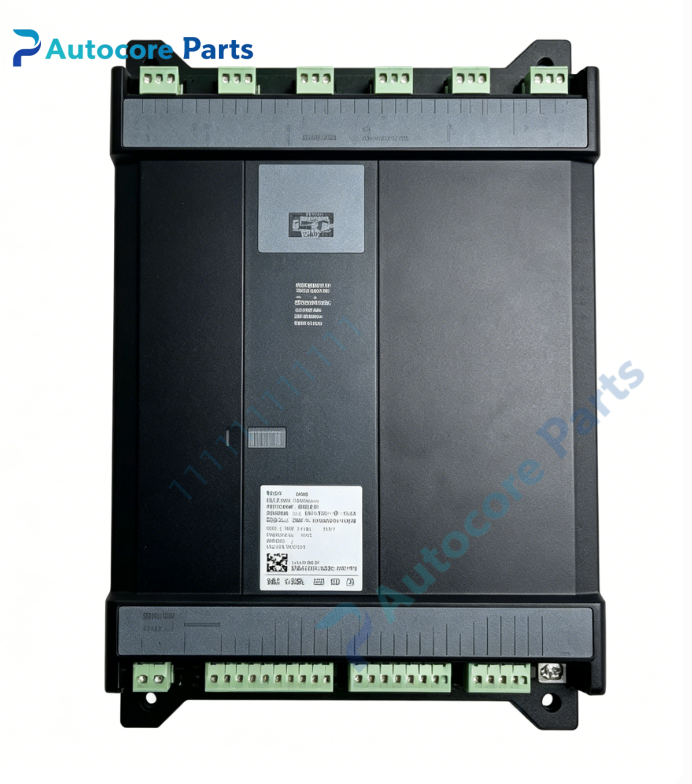

DEIF TCM‑2 Thyristor Control Module

Technical Specifications

Model:TCM‑2

Brand:DEIF

System compatibility:Thyristor‑based soft cut‑in controller for asynchronous generators. Realises soft grid connection via thyristor phase‑angle control. Supports CAN bus communication for upper‑system interaction. Applied for marine and industrial power‑station,works together with DEIF genset protection and control units.

Function:Complete asynchronous generator soft cut‑in control. Directly measures 3‑phase grid voltage up to 690V AC and CT 1A/5A secondary current. Controls thyristor firing angle to implement smooth voltage ramp‑up for asynchronous generator connection. Built‑in RPM pickup input monitors generator rotating speed. 9‑36V DC configurable PNP/NPN digital inputs;analogue 0‑10V input;thyristor gate firing outputs. Supports parameter configuration via PC service tool,records fault event logs.

Installation:35 mm DIN‑rail mounting or base screw mounting inside switchgear cabinet

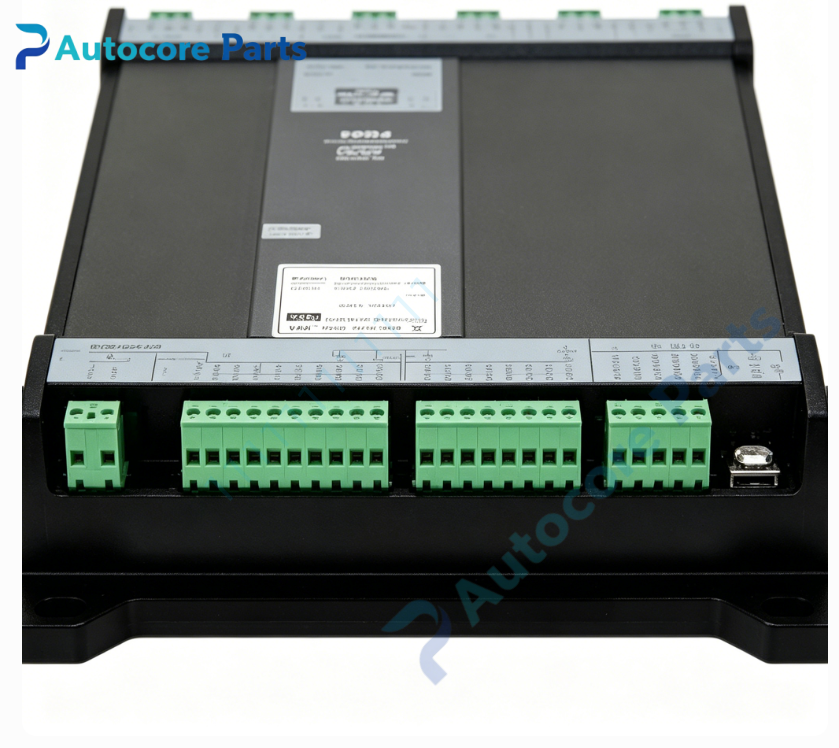

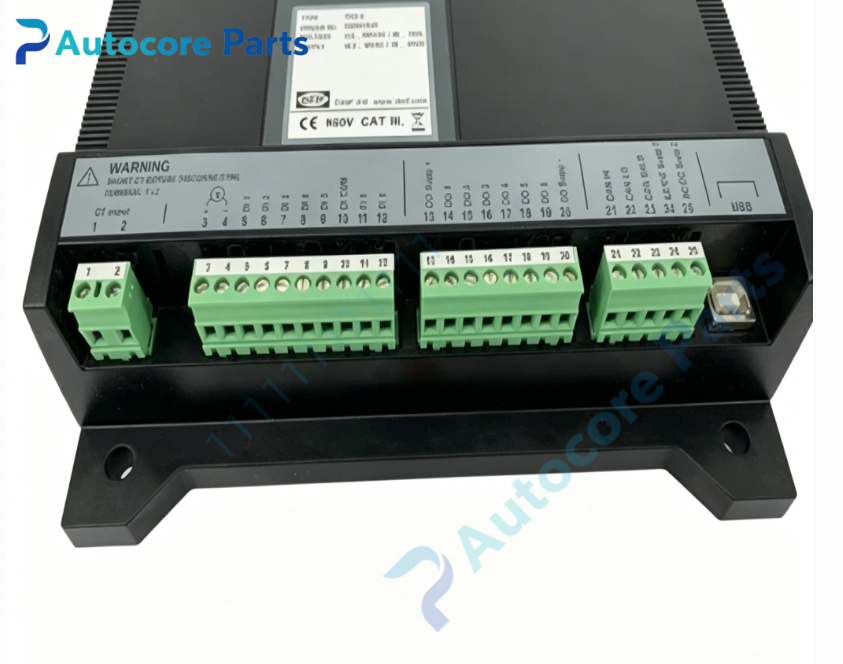

Interface:

‑Screw terminal:3‑phase grid voltage input(max 690V AC)

‑Screw terminal:CT current input(1A/5A secondary)

‑RPM sensor frequency input terminals

‑Multi‑channel optically‑isolated digital input terminals

‑0‑10V analogue differential input terminals

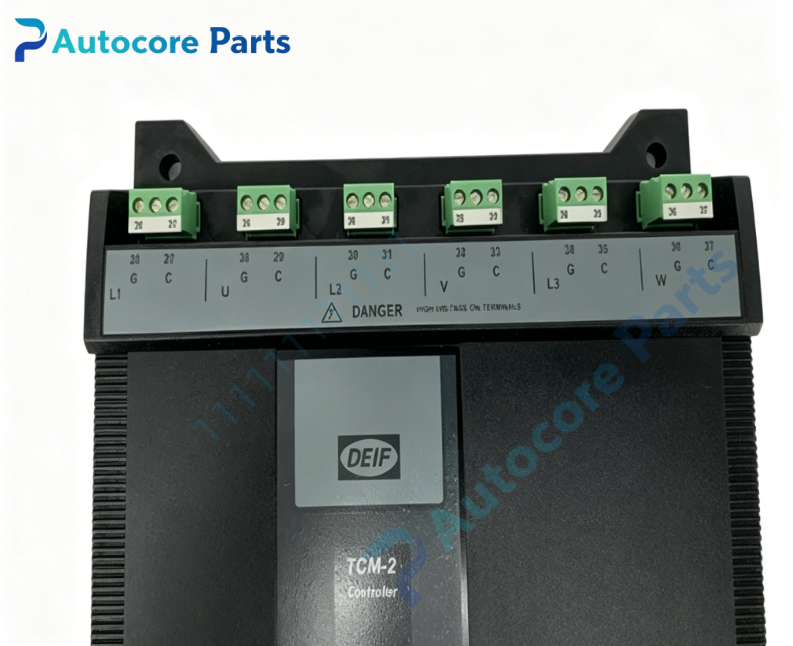

‑Thyristor gate‑cathode firing output terminals

‑CAN bus communication terminals

‑Service port for PC configuration

‑Front‑panel LED status indicators

Circuit feature:Phase‑angle firing algorithm,surge suppression for high‑voltage measuring terminals,galvanic isolation for digital inputs,non‑volatile memory for parameter and fault‑event storage,hardware watchdog supervision.

Feature:Marine classification approved;thyristor gate pulse:100 kHz limited‑current pulse output. Measuring accuracy class 1.0. PNP/NPN input group configurable.

Diagnostic:Front‑panel multi‑colour LED indicates power supply,communication status and internal fault;fault data can be uploaded via CAN bus.

Power supply:18‑36 VDC or 19.2‑30 VAC auxiliary power,max 2A consumption

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +70℃

Relative humidity:5%‑97% non‑condensing

Shock & vibration:Complies with DNV marine environmental requirement

Weight:1.0kg

Dimensions:225mm ×120mm ×115mm

Certification:DNV,CE,marine type approval

Built‑in function

TCM‑2 thyristor control module executes soft cut‑in for DEIF asynchronous generator. It controls thyristor firing angle to limit inrush current during generator grid connection,avoids grid disturbance caused by direct switching. Widely used for marine and industrial asynchronous generator cabinet spare‑part replacement.

Product Brief

TCM‑2 belongs to DEIF power‑control‑system spare‑part family,thyristor soft cut‑in controller for asynchronous generator. Thyristor power circuit wiring and input signal polarity must be verified before commissioning. Widely applied for power‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
