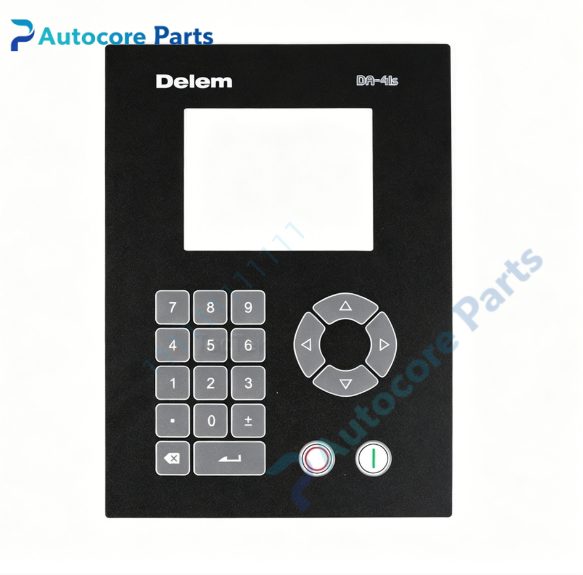

DELEM DA-41S CNC Press Brake Controller

Technical Specifications

Model: DA-41S Brand: DELEM (Netherlands) Product Type: CNC Press Brake Controller Mounting: Panel mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 3.7 kg

System compatibility

DA-41S is a 2-axis CNC controller designed for conventional hydraulic press brake. It supports servo, inverter and AC drive types, matches encoders and I/O modules, widely used in metal fabrication workshops for controller replacement during bending machine overhaul.

Function

DA-41S serves as the core operation control unit of hydraulic press brake. It supports angle programming, stores up to 100 product programs and 15 tool sets, maximum 25 bends per program. It realizes Y ram axis and X backgauge axis closed-loop positioning control, automatically calculates sheet metal unfolded length. It monitors machine running status and triggers alarm signals once over-travel or signal faults are detected. It is used to replace damaged controllers when the press brake cannot complete normal bending programming.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-41S and lock fixing fasteners. Connect 24V DC power, encoder cables and digital I/O terminals. Check wiring definition, upload machine parameters, perform trial bending test before formal production.

Interface

Encoder input ports, digital I/O terminals, RS232 communication port, status LED indicators for DELEM DA-41S controller.

Feature

Original DELEM controller, 4.7 inch monochrome LCD 320×240 display, physical keyboard operation, simple angle programming, built-in material parameter library, flexible I/O configuration, stable operation. This legacy spare part supports field repair of conventional hydraulic press brake systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DA-41S. Backgauge positioning error: verify encoder wiring polarity and machine parameter setting. Intermittent signal loss: inspect cable shielding and cabinet grounding condition.

Product Brief

DA-41S is Dutch DELEM CNC controller for conventional hydraulic press brake. It executes angle programming and 2-axis closed-loop control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
