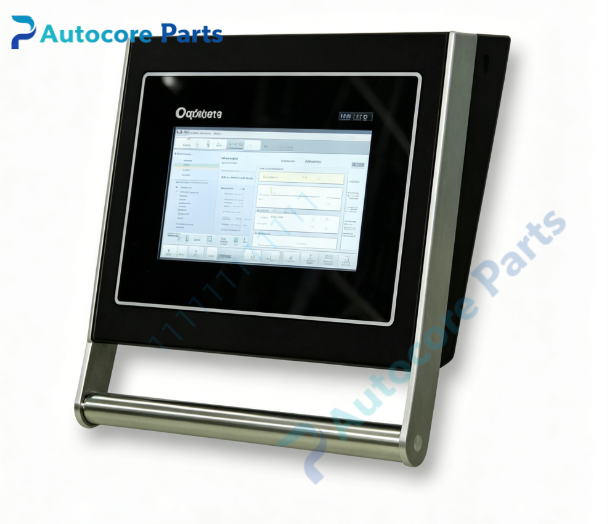

DELEM DA-53T CNC Press Brake Touchscreen Controller

Technical Specifications

Model: DA-53T Brand: DELEM (Netherlands) Product Type: CNC Press Brake Touchscreen Controller Mounting: Panel mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 4.5 kg

System compatibility

DA-53T is a touchscreen CNC controller for DELEM hydraulic press brake systems. It works with DELEM DM series axis modules, linear encoders and hydraulic proportional valve units, widely used in metal fabrication workshops for controller replacement during bending machine overhaul.

Function

DA-53T serves as the core operation control unit of hydraulic press brake. It supports 2D graphical touch programming, stores bending programs, tool libraries and material parameters, and controls up to 4 axes including Y1,Y2 and two auxiliary axes. It realizes crowning compensation calculation, monitors ram position, tonnage and machine running state, and triggers alarm signals once over-travel or hydraulic faults are detected. It is used to replace damaged controllers when the press brake cannot perform touch screen bending programming.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-53T and lock fixing fasteners. Connect 24V DC power, fieldbus, encoder cables and hydraulic valve signal terminals. Check wiring definition, upload machine parameters, perform trial bending test before formal production.

Interface

USB port, RS232 communication port, fieldbus interface, encoder input ports, digital I/O terminals, status LED indicators for DELEM DA-53T controller.

Feature

Original DELEM touch controller, 10.1 inch TFT color touch screen, hotkey touch navigation, built-in crowning control, support Profile-T offline programming software, stable multi-axis position control. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DA-53T. Axis positioning deviation: verify encoder wiring polarity and machine parameter setting. Intermittent communication alarm: inspect bus cable shielding and cabinet grounding condition.

Product Brief

DA-53T is Dutch DELEM touchscreen CNC controller for hydraulic press brake. It executes 2D graphic programming and up to 4 axes closed-loop control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
