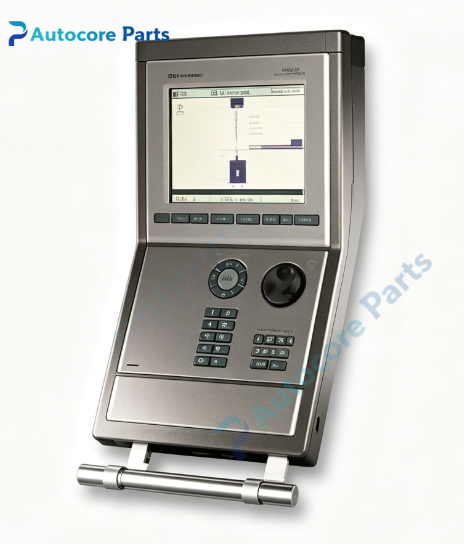

DELEM DA-65P CNC Press Brake Controller

Technical SpecificationsModel: DA-65P Brand: DELEM (Netherlands) Product Type: Graphical CNC Press Brake Controller Mounting: Panel / swing arm mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 5.2 kg

System compatibilityDA-65P is a high-performance graphical CNC controller of DELEM Modusys system. It communicates with DM series axis modules via HSB high-speed bus, compatible with DM01,DM04,DM102,DM104,DM102,DM602. It works with electro-hydraulic synchronous press brakes and tandem bending machines, widely used for sheet metal workshop machine renovation and spare replacement.

FunctionDA-65P serves as core graphical operation control unit of hydraulic press brake. It supports 2D graphical part programming, automatic bend sequence calculation and bend simulation with collision detection function. It automatically calculates sheet metal unfolded length and bending tonnage, stores large number of part programs, tool libraries and material parameters. It supports multi-axis closed-loop control including Y1,Y2,X,R,Z axes, automatic crowning compensation and angle sensor correction. It monitors ram position, bending tonnage and machine safety signals, triggers alarm once over-travel or hydraulic faults occur. It is used to replace defective controllers when press brake cannot run graphical bending programming.

InstallationCut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-65P and lock fasteners. Connect 24V DC power, HSB bus cable, encoder feedback cables, digital I/O and USB terminals. Verify wiring definition, upload machine parameters, complete axis homing and trial bending test before formal production.

InterfaceEthernet port, USB ports, RS232 service port, HSB bus interface, encoder input ports, digital I/O terminals, analog hydraulic valve output, LED status indicators for DELEM DA-65P controller.

FeatureOriginal DELEM DA-65P graphic controller, 15 inch TFT color display, physical shortcut keyboard, multi-language menu, DXF import, Profile-T offline programming compatible, USB program backup and restore, built-in self-diagnostic function. This legacy spare part supports field repair and upgrade of DELEM electro-hydraulic synchronous press brake systems.

DiagnosticNo display after power on: check 24V DC power supply and power fuse for DA-65P. Bending sequence calculation error: verify machine parameter configuration and tool library data. Intermittent HSB bus alarm: inspect HSB bus cable, connector pin oxidation, shielding and cabinet grounding condition.

Product BriefDA-65P is Dutch DELEM graphical CNC controller for electro-hydraulic synchronous press brake. It executes 2D graphical programming and multi-axis closed-loop control with bend simulation for sheet metal bending jobs, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
