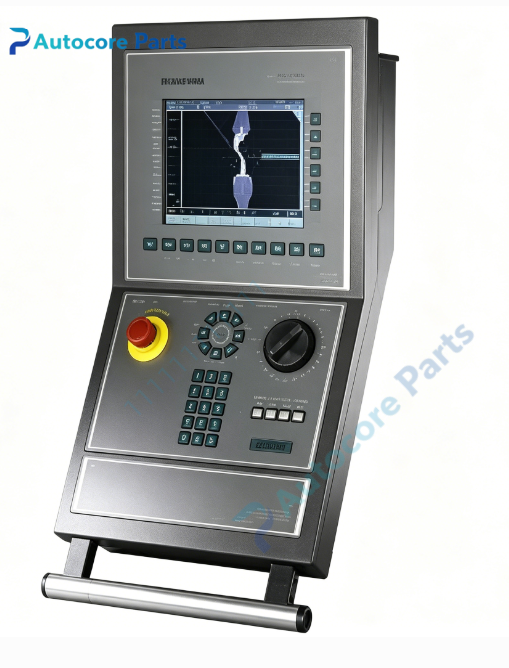

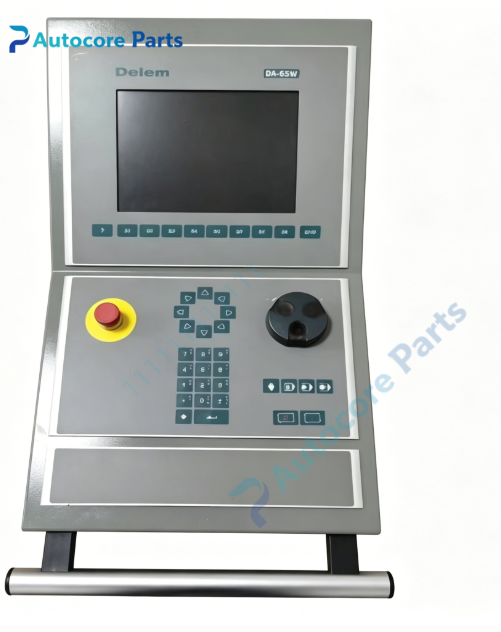

DELEM DA-65W CNC Press Brake Controller

Technical Specifications

Model: DA-65W Brand: DELEM (Netherlands) Product Type: CNC Press Brake Controller Mounting: Panel mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 4.8 kg

System compatibility

DA-65W is a Windows embedded CNC controller for DELEM press brake systems. It cooperates with DELEM DM series axis modules, encoders and hydraulic proportional valve units, widely used in metal fabrication workshops for controller replacement and machine retrofit.

Function

DA-65W acts as the core operation control unit of hydraulic press brake. It supports 2D graphical bending programming, stores abundant bending part programs and tool libraries, executes multi-axis closed-loop positioning calculation for ram and backgauge. It monitors tonnage, travel and machine status, and triggers alarm signals when over-travel, pressure or communication faults are detected. It is used to replace damaged controllers when the press brake fails to run graphical bending programs.

Installation

Cut off main power supply before installation. Prepare panel cutout on machine cabinet, mount DA-65W and lock fixing fasteners. Connect 24V DC power, fieldbus, encoder cables and hydraulic valve signal terminals. Check wiring definition, upload machine parameters, perform trial bending test before formal production.

Interface

Dual USB ports, Ethernet communication port, fieldbus interface, digital I/O terminals, encoder ports, status LED indicators for DELEM DA-65W controller.

Feature

Original DELEM DAonWindows controller, 12 inch TFT color display, embedded real-time Windows system, 2D graphic programming, USB program backup, network data transmission, stable multi-axis motion control. This legacy spare part supports field repair and upgrade of old DELEM hydraulic press brake systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DA-65W. Graphical program calculation error: verify machine parameter configuration and tool library data. Intermittent communication alarm: inspect bus cable shielding and cabinet grounding condition.

Product Brief

DA-65W is Dutch DELEM Windows-based CNC controller for hydraulic press brake. It provides 2D graphic programming and multi-axis closed-loop control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
