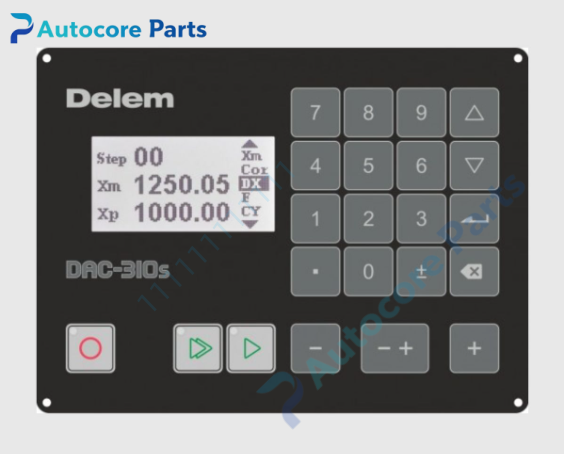

DELEM DAC-310S CNC Shearing Machine Controller

Technical SpecificationsModel: DAC-310S Brand: DELEM (Netherlands) Product Type: CNC Controller for Hydraulic Guillotine Shear Mounting: Panel mounting on shear machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 0.85 kg

System compatibilityDAC-310S is dedicated NC controller for DELEM guillotine shear system. It matches encoder and servo / inverter drive for backgauge axis, widely fitted on QC12K series hydraulic shearing machines, used for sheet metal workshop shear machine maintenance and spare replacement.

FunctionDAC-310S acts as core operation control unit for hydraulic shearing machine. It controls backgauge X-axis positioning, supports 100 program storage steps, cutting quantity counting, manual axis jog and retract function. It reads encoder position feedback and realizes closed-loop positioning of backgauge stopper to guarantee cutting size precision. It monitors travel limit and signal state, triggers alarm when over-travel or signal failure occurs. It is used to replace defective controllers when the guillotine shear backgauge cannot position normally.

InstallationCut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DAC-310S and lock fasteners. Connect 24V DC power, encoder cable, digital I/O terminals and drive control wires. Verify wiring definition, set machine parameters, run axis homing and test cutting before formal production.

InterfaceRS232 service port, single encoder input, digital input/output terminals, analog control output, LED status indicators for DELEM DAC-310S controller.

FeatureOriginal DELEM shear NC controller, 128×64 STN monochrome LCD display, membrane keypad, simple programming, power-off program memory, built-in self-diagnostic function, compact size, stable for repetitive sheet metal cutting jobs. This legacy spare part supports field repair of DELEM hydraulic guillotine shear systems.

DiagnosticNo display after power on: check 24V DC power supply and fuse for DAC-310S. Backgauge positioning error: verify encoder wiring, shielding and machine parameter setting. Axis intermittent dropout: inspect I/O wiring, limit switch and grounding condition.

Product BriefDAC-310S is Dutch DELEM compact NC controller for hydraulic guillotine shear. It executes backgauge axis positioning control and program management for sheet metal cutting, classic spare part for legacy shearing machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
