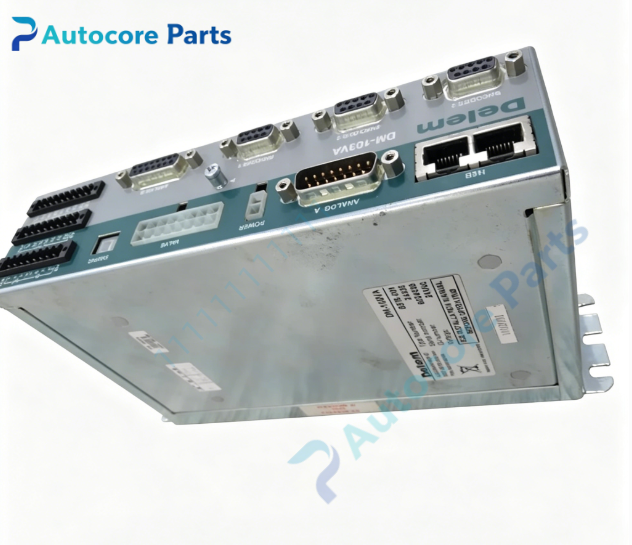

DELEM DM-103VA CNC Press Brake 3-Axis Control Module

Technical Specifications

Model: DM-103VA Brand: DELEM (Netherlands) Product Type: CNC Press Brake 3-Axis Motion Control Module Mounting: Install inside electric cabinet of press brake Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.62 kg

System compatibility

DM-103VA is a dedicated three-axis motion control module for DELEM press brake CNC systems. It communicates with DELEM DA series controllers, matches linear encoders and hydraulic proportional valve units, widely used in metal fabrication workshops for module replacement during bending machine overhaul.

Function

DM-103VA serves as three-axis motion control unit of DELEM bending machine control system. It collects position feedback signals from Y1,Y2 and X axis linear encoders, executes 3-axis closed-loop calculation, outputs analog control signals to hydraulic valves. It continuously monitors axis running status and triggers fault alarm signals once over-travel or pressure abnormalities are detected. It is used to replace damaged modules when the press brake loses Y1,Y2,X synchronous bending control.

Installation

Cut off main power supply before installation. Open the electrical cabinet and discharge residual voltage. Remove the old module, install DELEM DM-103VA and fasten mounting screws. Connect bus port, encoder cables and hydraulic valve signal terminals. Check wiring definition, download matching machine parameters, carry out three axis synchronization test before formal production.

Interface

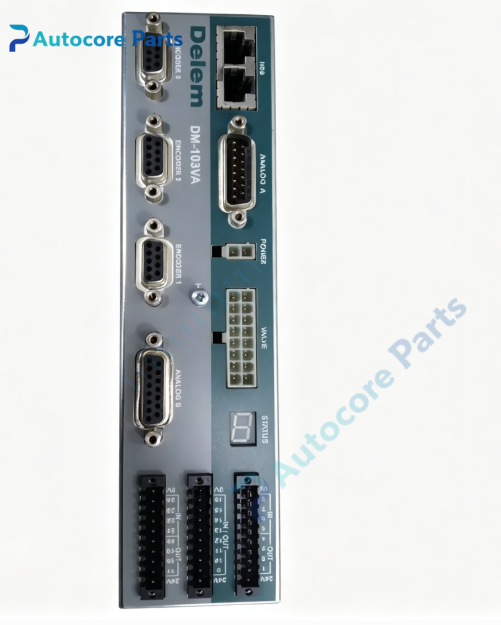

Fieldbus communication port, triple analog output terminals, three channels encoder input ports, digital I/O terminals, 7-segment diagnostic LED indicators for DELEM DM-103VA module.

Feature

Original DELEM 3-axis control module, anti-interference circuit design, high-precision multi-channel position sampling, stable bus communication, metal housing with rugged connectors. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

Module no response after power on: check 24V DC power supply and fuse for DM-103VA. Three axis synchronization deviation: verify encoder wiring polarity and machine parameter matching. Intermittent alarm popping: inspect cable shielding and cabinet grounding condition.

Product Brief

DM-103VA is Dutch DELEM three-axis motion control module for hydraulic press brake. It executes 3-channel encoder signal acquisition and closed-loop axis control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
