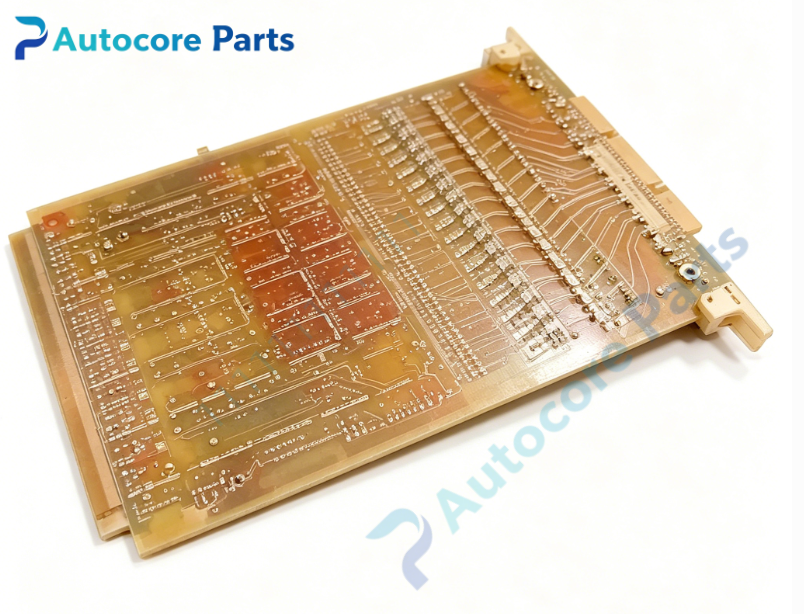

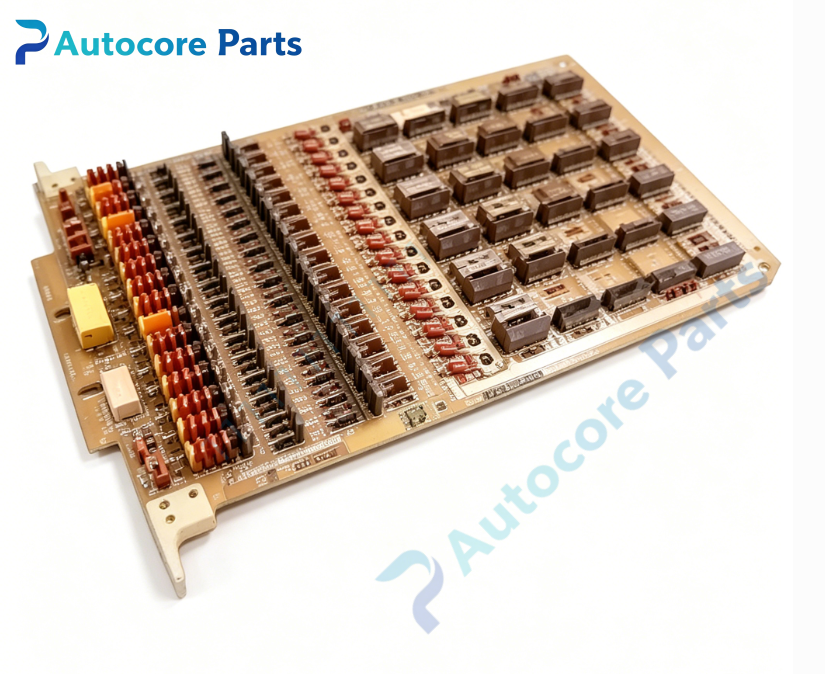

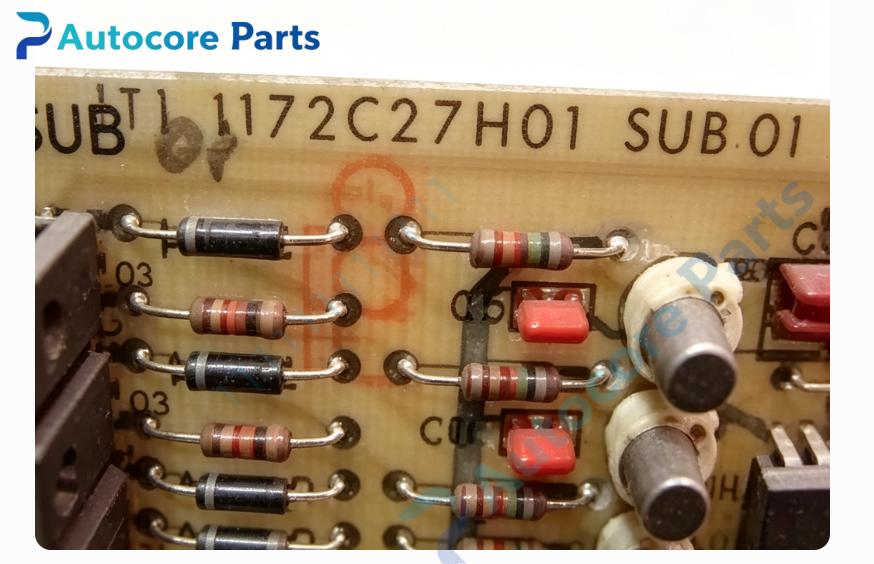

Emerson 1172C27H01 Power Supply Board

Technical Specifications

Model：1172C27H01

Brand：Emerson

Product Type：Rack‑mount Power Supply Board

Applicable System：Emerson industrial distributed control system card‑cage, power plant thermal control cabinet

Input Voltage：100‑240VAC

Output Voltage：24VDC

Interface：Backplane power connector, AC power input terminal

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power input, output status and fault diagnostic status

Built‑in Function：AC‑DC power conversion, stable DC power output for backplane and I/O modules, over‑voltage, over‑current and short‑circuit protection, fault alarm signal feedback

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Card‑cage slot‑in installation

Weight：0.64kg

Product Brief:

1172C27H01 is legacy rack‑mount power supply board manufactured by Emerson. It is an important power spare component for industrial distributed control system card‑cage. It converts alternating‑current input into stable 24VDC power to supply for system backplane bus and each I/O module. Built‑in multiple protection mechanisms improve equipment operation safety. On‑board LED provides visual diagnosis for power input, output and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of legacy Emerson control equipment. Please confirm hardware revision, power parameter and cabinet compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation, follow wiring specification strictly。
