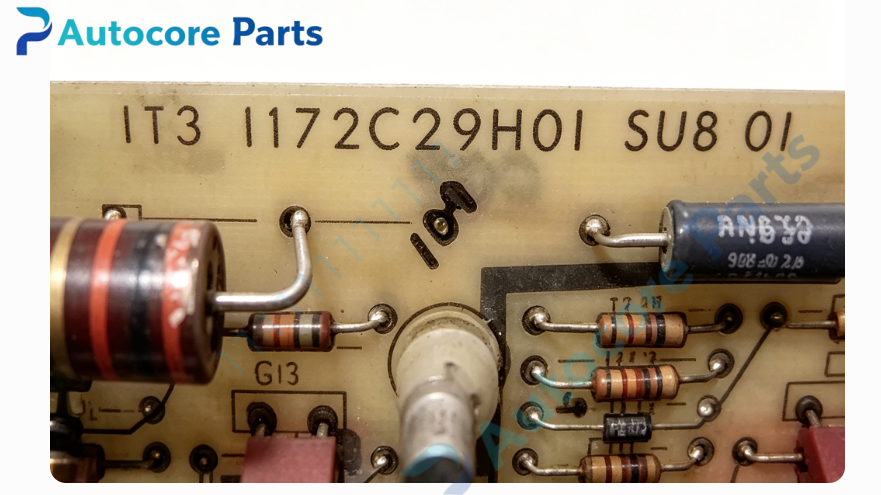

Emerson 1172C29H01 Analog Output Module

Technical Specifications

Model：1172C29H01

Brand：Emerson

Product Type：Analog Output Module

Applicable System：Emerson industrial distributed control system, power plant thermal control cabinet

Supply Voltage：24VDC auxiliary DC power input

Interface：Backplane bus connector, multi‑channel analog output field terminal interface

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power supply, channel status and fault diagnostic status

Built‑in Function：Receives control data from main controller, D/A conversion, 4‑20mA analog signal output, signal isolation protection, channel status feedback, fault self‑diagnosis, partial channels support hot‑swap

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Card‑cage slot‑in installation

Weight：0.62kg

Product Brief:

1172C29H01 is legacy analog output module manufactured by Emerson. It is key AO I/O card for distributed control system. It receives process control data issued by main controller, completes D/A conversion and outputs standard 4‑20mA analog signals to drive field regulating instruments and actuators. Built‑in signal isolation improves anti‑interference performance of field loop. On‑board LED provides visual diagnosis for power, channel working and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of legacy power plant DCS equipment. Please confirm hardware revision, backplane matching and firmware version before purchase. Strict ESD anti‑static protection shall be performed during installation.
