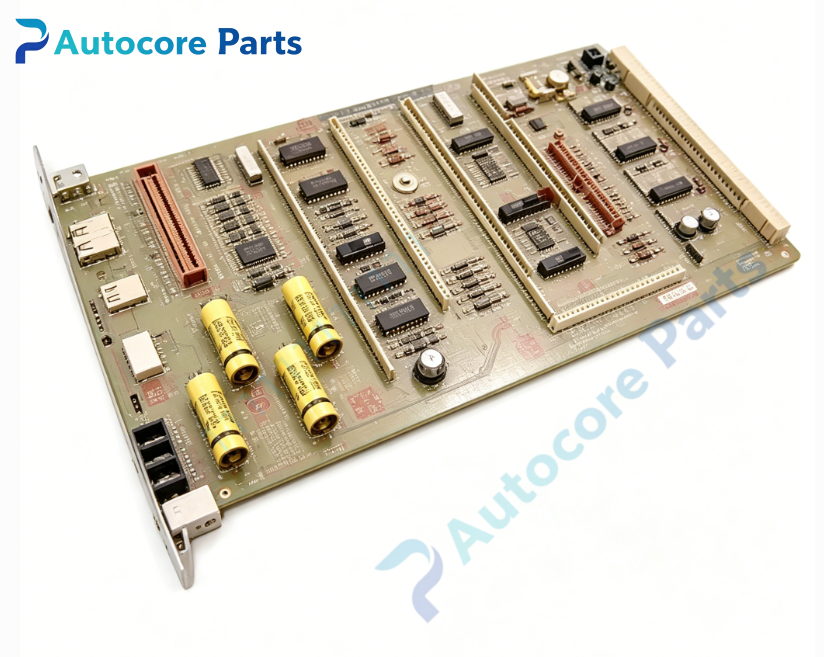

Emerson 1172C53H01 Main Control Board

Technical Specifications

Model：1172C53H01

Brand：Emerson

Product Type：Main Control Logic Processor Board

Applicable System：Emerson MD Plus series control rack, power plant thermal control cabinet

Supply Voltage：5V / ±12VDC, powered by rack backplane bus

Interface：Backplane edge connector, multi‑pin signal terminal, internal flat‑cable interconnection port

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power supply, run status, fault diagnostic status

Built‑in Function：Real‑time control logic calculation, rack‑internal data scheduling, I/O module data interaction, fault self‑diagnosis, alarm signal feedback, system status monitoring

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Card‑cage slot‑in installation

Weight：0.64kg

Product Brief:

1172C53H01 is legacy main control logic processor board of Emerson MD Plus rack system. As the core processing unit inside the rack, it completes real‑time logic calculation of control strategies, schedules data transmission between each I/O card and realizes signal interaction of whole rack modules. On‑board LED gives clear visual feedback of power, running and fault conditions. This is EOL discontinued spare part, mainly applied for replacement and maintenance of old‑generation power plant thermal control DCS devices. Please confirm hardware revision, backplane matching and firmware version before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
