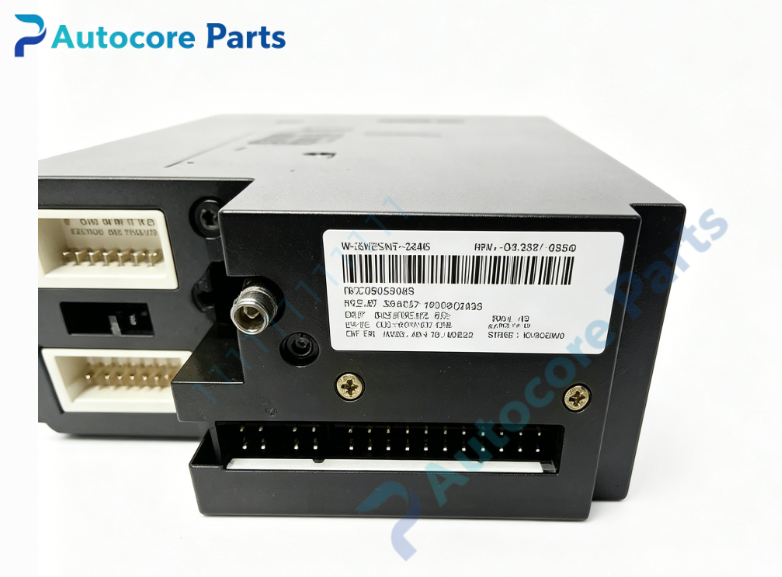

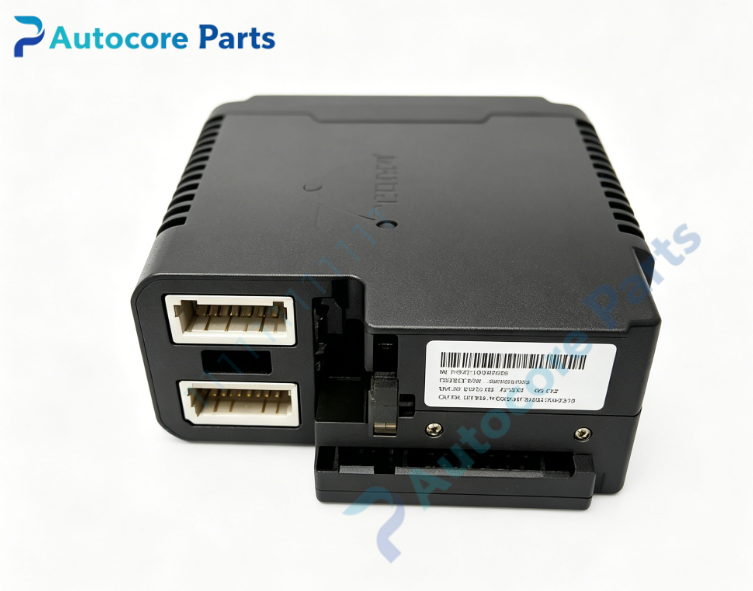

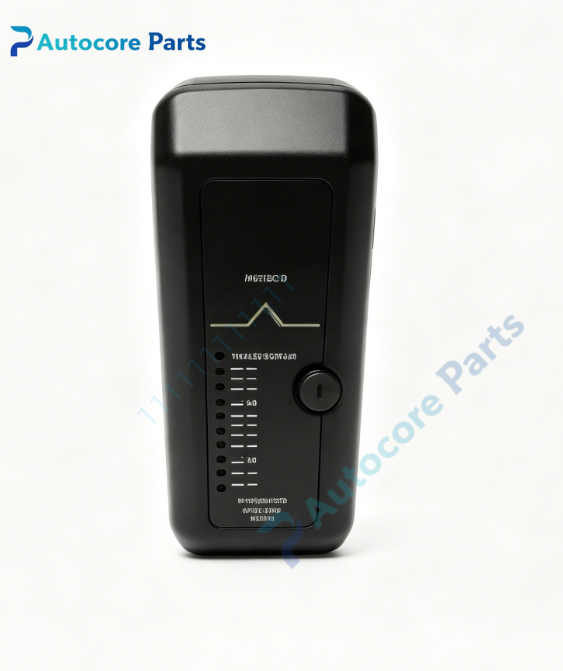

Emerson 12P2531X122 HART Analog Output Module

Technical Specifications

Model：12P2531X122（Alias:KJ3221X1‑BA1, VE4005S2B1）

Brand：Emerson

Product Type：HART Analog Output Module

Applicable System：Emerson DeltaV DCS system, petrochemical and thermal power plant control cabinet

Supply Voltage：12VDC LocalBus 150mA，24VDC field bus 300mA

Interface：DeltaV rack backplane connector, field analog signal terminal block, built‑in HART modem

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power supply, channel status and fault diagnostic status

Built‑in Function：4‑20mA analog control output, HART bi‑directional communication, D/A conversion, smart valve positioner parameter configuration, data interaction with DeltaV main controller, channel short‑circuit protection, loop fault self‑diagnosis

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：DeltaV rack slot‑in hot‑swappable installation

Weight：0.20kg

Product Brief:

12P2531X122, alias KJ3221X1‑BA1 and VE4005S2B1, is legacy HART analog output module for Emerson DeltaV DCS system. It outputs standard 4‑20mA control signals to regulate field control valves, meanwhile integrates HART modem to realize bidirectional digital communication with HART smart field devices. Users can remotely configure, calibrate and diagnose smart valve positioners through DCS system. Module exchanges control commands and device status data with DeltaV main controller via rack backplane bus. Each channel is equipped with short‑circuit protection function. On‑board LED gives visual feedback of power, channel running and fault conditions. This is EOL discontinued spare part,widely used for maintenance and renovation of petrochemical and thermal power plant DeltaV DCS equipment. Please confirm hardware revision and rack compatibility before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
