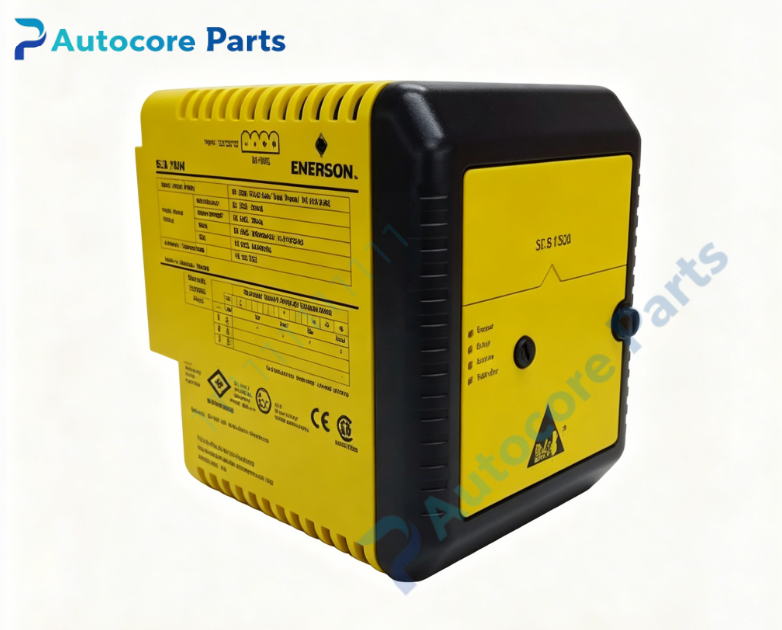

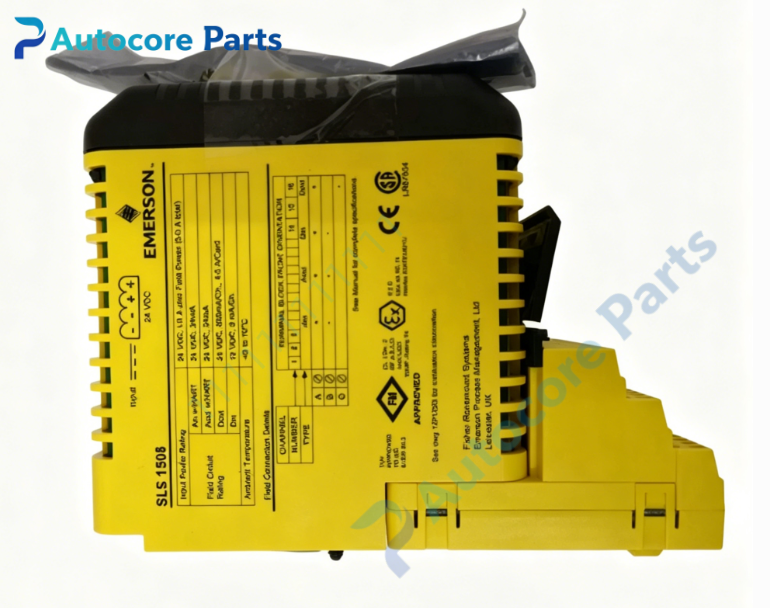

Emerson 12P3162X162 SLS1508 Smart Logic Solver

Technical Specifications

Model：12P3162X162（Alias:KJ2201X1‑BA1, SLS1508）

Brand：Emerson

Product Type：SIS Smart Logic Solver

Applicable System：Emerson DeltaV SIS safety instrumented system, petrochemical and thermal power plant safety control cabinet

Supply Voltage：24VDC，1.0A

Interface：DeltaV SIS carrier base multi‑port backplane connector, SISnet peer bus communication interface, supports mixed analog/digital I/O termination modules

Common Revision：Multiple hardware revisions available

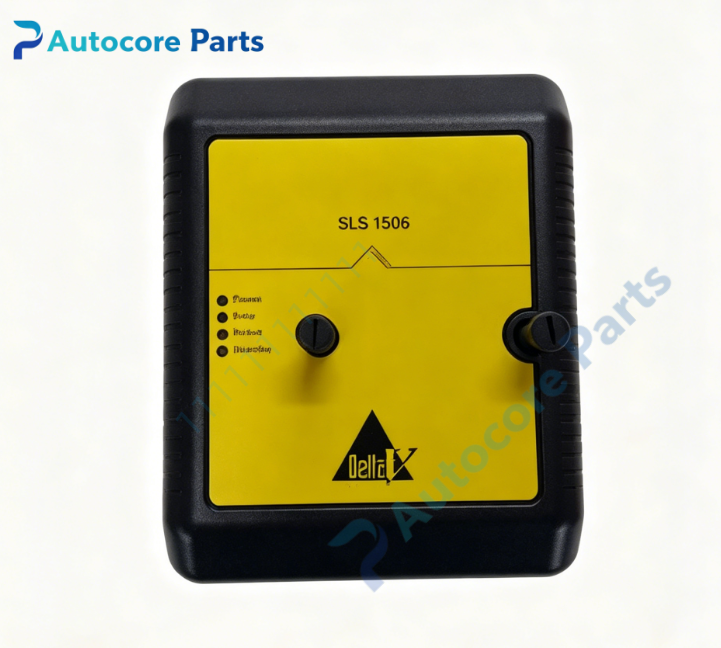

Status Indicator：On‑board LED for power, error, active, standby status and fault diagnostic status

Built‑in Function：Safety logic operation processing, ESD emergency shutdown interlock logic execution, mixed DI/DO/AI/HART‑AO channel configuration, SISnet bus peer‑to‑peer communication, safety fault self‑diagnosis, fault reporting, hot‑swap support, safety‑related data interaction with DeltaV main controller

Working Temperature：0℃ ~ +55℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Install on DeltaV SIS 8‑slot carrier base, plug‑in modular installation

Weight：1.20kg

Product Brief:

12P3162X162, alias KJ2201X1‑BA1 and SLS1508, is legacy SIS smart logic solver for Emerson DeltaV safety instrumented system. It is the core safety processing unit of DeltaV‑SIS system, responsible for executing safety interlock, emergency shutdown ESD and safety protection logic. It supports flexible mixed‑configuration of digital input, digital output, analog input and HART analog output channels, adapting to different safety loop requirements. It communicates with peer logic solvers through SISnet bus, realizing safety data synchronization. Comprehensive built‑in self‑diagnosis function can timely capture hardware faults and field‑loop abnormal conditions. On‑board LED gives visual feedback of power, running status and fault conditions. This is EOL discontinued spare part,widely used for maintenance and renovation of petrochemical and thermal power plant DeltaV‑SIS safety‑related equipment. Please confirm hardware revision and SIS carrier base compatibility before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
