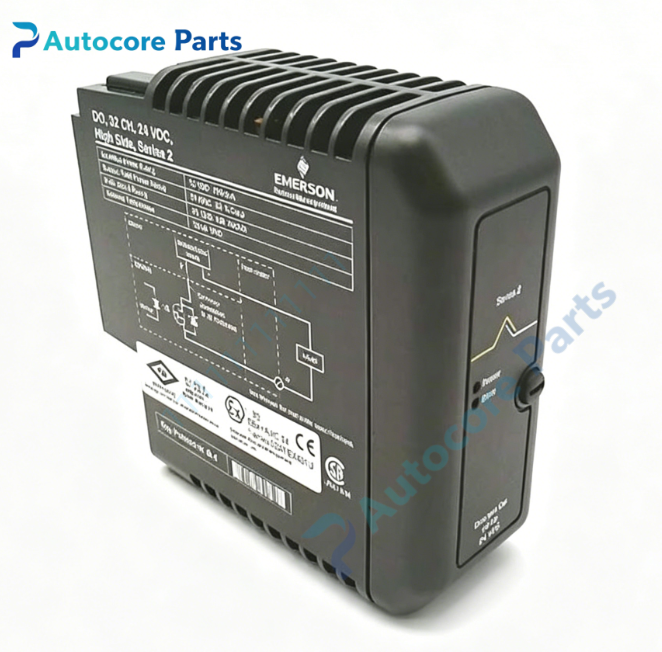

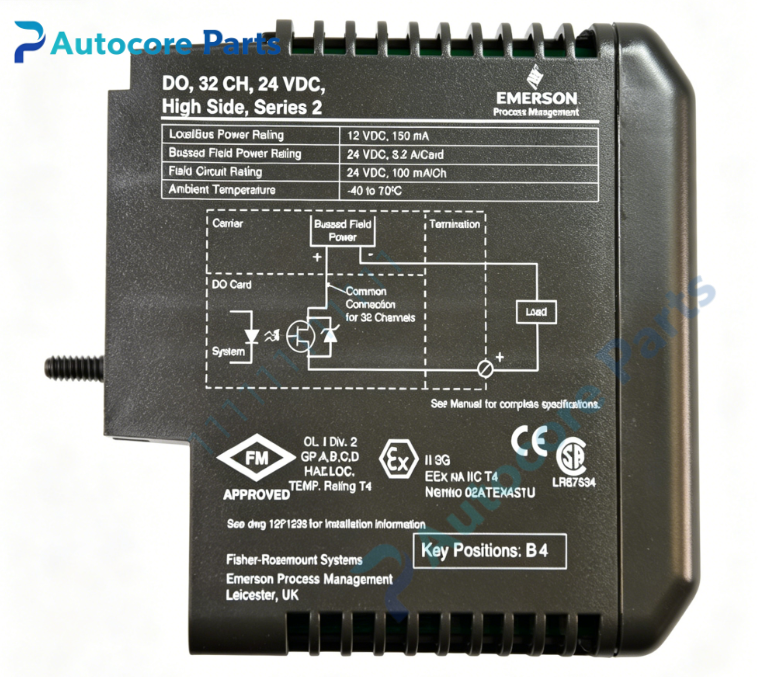

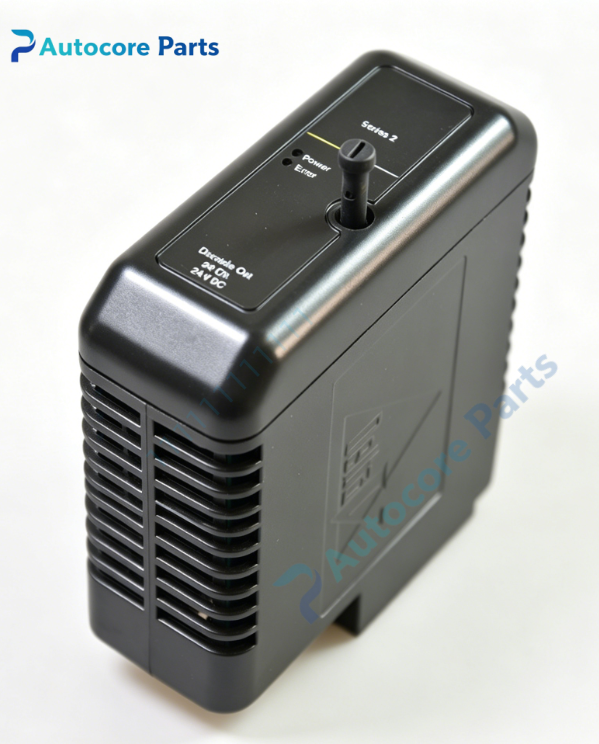

Emerson 12P3275X022 32‑Channel 24VDC High‑Side Discrete Output Module

Technical Specifications

Model：12P3275X022（Alias:KJ3204X1‑BA1, VE4002S1T2B5）

Brand：Emerson

Product Type：Series2 High‑Density High‑Side Discrete Output Module

Applicable System：Emerson DeltaV M‑series I/O subsystem, petrochemical and thermal power plant control cabinet

Supply Voltage：LocalBus 12VDC 150mA；Bussed field 24VDC 3.2A,100mA per channel

Interface：DeltaV rack backplane connector, matched signal terminal base, key position B4

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power supply, channel group status and fault diagnostic status

Built‑in Function：32‑channel 24VDC high‑side switching output, per‑channel short‑circuit & over‑current protection, drive solenoid valves and relays, opto‑isolation protection, data interaction with DeltaV main controller, module self‑diagnosis, hot‑swap support

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：DeltaV rack slot‑in hot‑swappable installation

Weight：0.20kg

Product Brief:

12P3275X022, alias KJ3204X1‑BA1 and VE4002S1T2B5, is legacy Series2 high‑density high‑side discrete output module for Emerson DeltaV M‑series I/O subsystem. It provides 32‑channel 24VDC high‑side switching outputs for large‑scale discrete control applications. Each channel is equipped with independent short‑circuit and over‑current protection to prevent field faults from spreading to the system side. Opto‑isolation design improves anti‑interference performance against industrial site surge noise. It receives control commands from DeltaV main controller to drive field solenoid valves, relays and indicator lamps. Hot‑swap function supports online replacement without rack shutdown. On‑board LED gives visual feedback of power, channel group running and fault conditions. This is EOL discontinued spare part,widely used for maintenance and renovation of petrochemical and thermal power plant DeltaV DCS equipment. Please confirm hardware revision and terminal base compatibility before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
