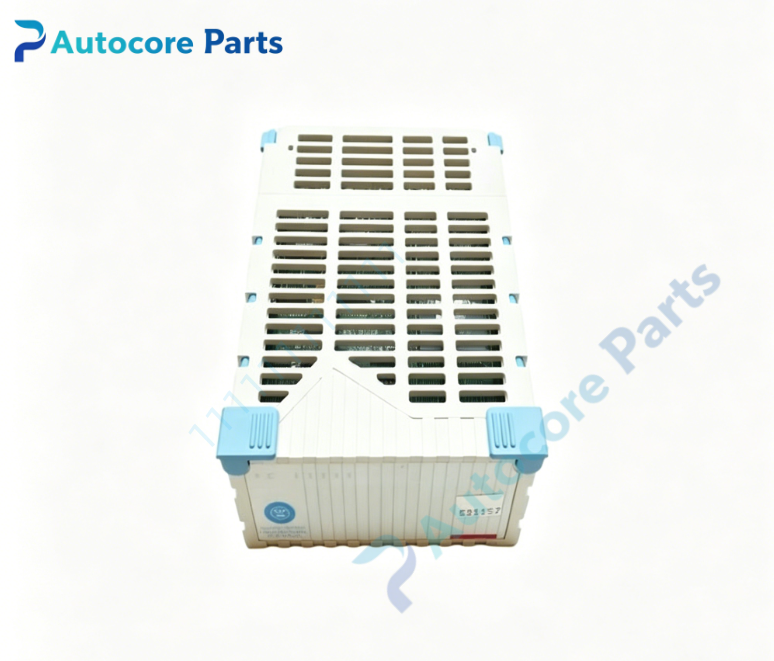

Emerson 14‑193‑100‑562 Ovation Signal Termination Assembly

Technical Specifications

Model：14‑193‑100‑562

Brand：Emerson

Product Type：Signal Termination Assembly

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant control cabinet

Supply Voltage：Pass‑through signal assembly, no independent power supply

Interface：Matching I/O card plug‑in connector, field screw wiring terminals, internal signal wiring harness

Common Revision：Multiple hardware revisions available

Status Indicator：Without on‑board indicator lamp

Built‑in Function：Field‑side signal wiring transfer, signal line transition, surge‑suppression protection, convenient for on‑site wiring debugging and I/O card replacement, isolating field wiring and system I/O card

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Cabinet internal fixed‑installation

Weight：0.31kg

Product Brief:

14‑193‑100‑562 is Emerson Ovation series signal termination assembly. It serves as wiring transition component between Ovation I/O card and field process signals. It transfers analog and discrete field signals to corresponding I/O module through internal harness and connector. Integrated surge‑suppression circuit can restrain impulse interference from field equipment. When replacing I/O cards, field cables do not need to be re‑terminated, greatly improving on‑site maintenance efficiency. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and matching I/O card model before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
