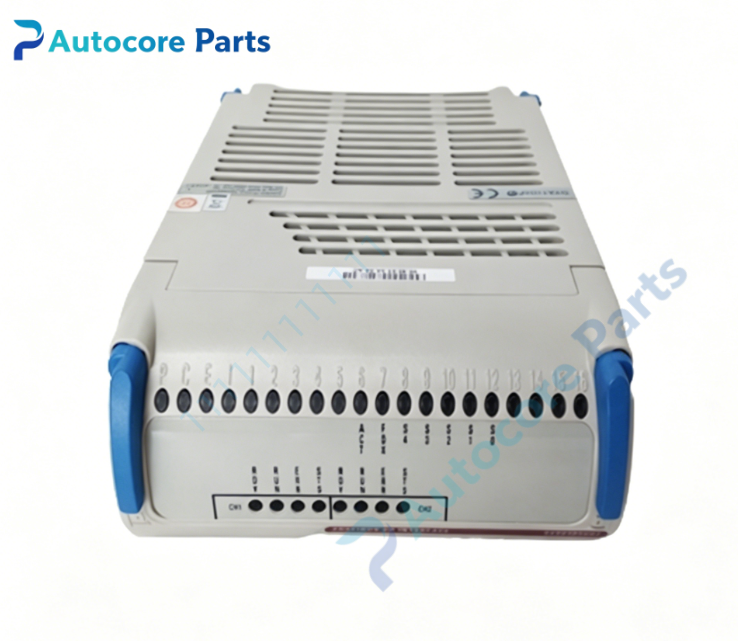

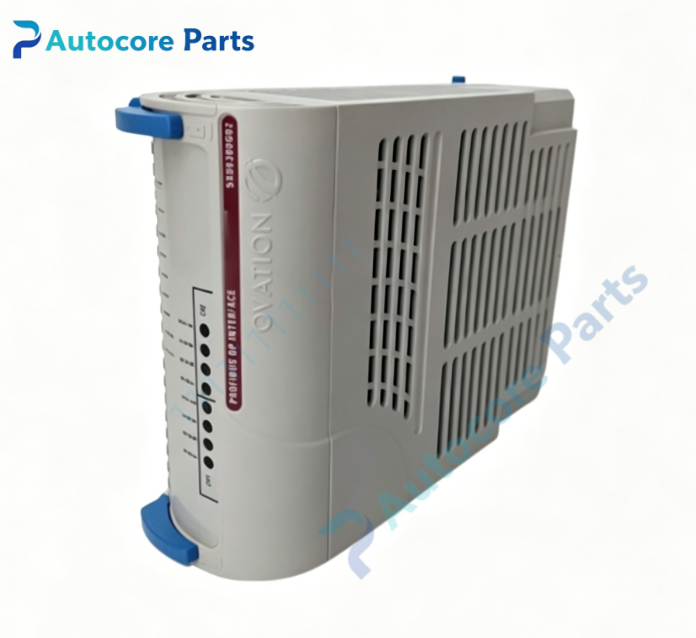

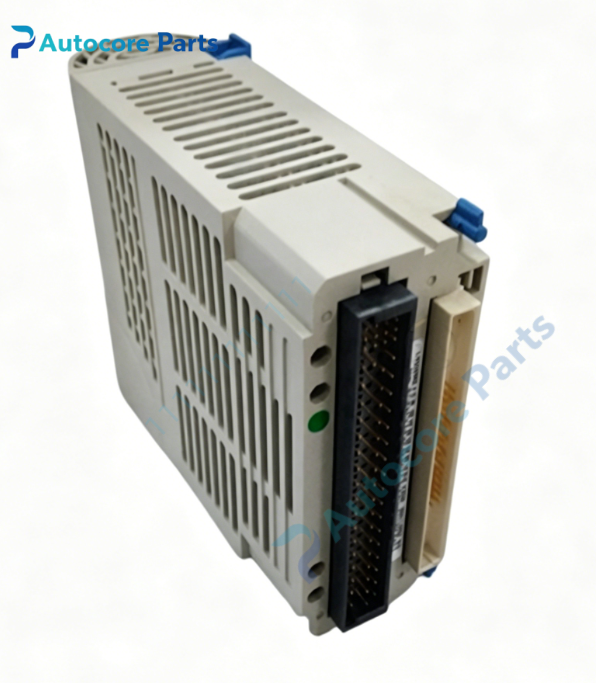

Emerson 14A0009G08 Ovation Local I/O Interface Module

Technical Specifications

Model：14A0009G08

Brand：Emerson

Product Type：Local I/O Interface Module

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant boiler and turbine control cabinet

Supply Voltage：24VDC

Interface：Ovation rack backplane connector, local I/O high‑speed bus port, maintenance debugging interface

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, run status, bus communication, fault and link diagnostic indication

Built‑in Function：High‑speed bus data transmission, controller‑local I/O rack real‑time data interaction, enhanced bus fault diagnosis, link error statistics, hot‑swap support, data synchronization processing, bus overload alarm

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.40kg

Product Brief:

14A0009G08 is the later‑revision local I/O interface module of Emerson Ovation DCS system. It acts as high‑speed bus bridge between main processor module and local I/O racks. Compared with earlier versions such as G03 and G05, it optimizes bus anti‑interference performance and fault diagnosis logic, strengthens error statistics and overload alarm function. It completes real‑time transmission of process variables, alarm messages and control instructions between controller and each I/O card. It supports hot‑swap, online replacement without cutting off system power supply. Multi‑group LED indicators clearly display power‑on, operation, bus link and fault status for convenient on‑site inspection and rapid fault location. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and controller firmware version before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
