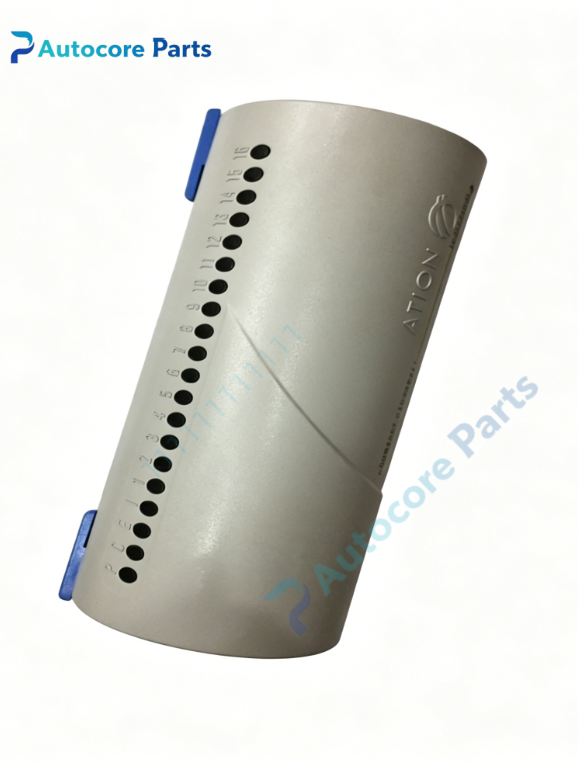

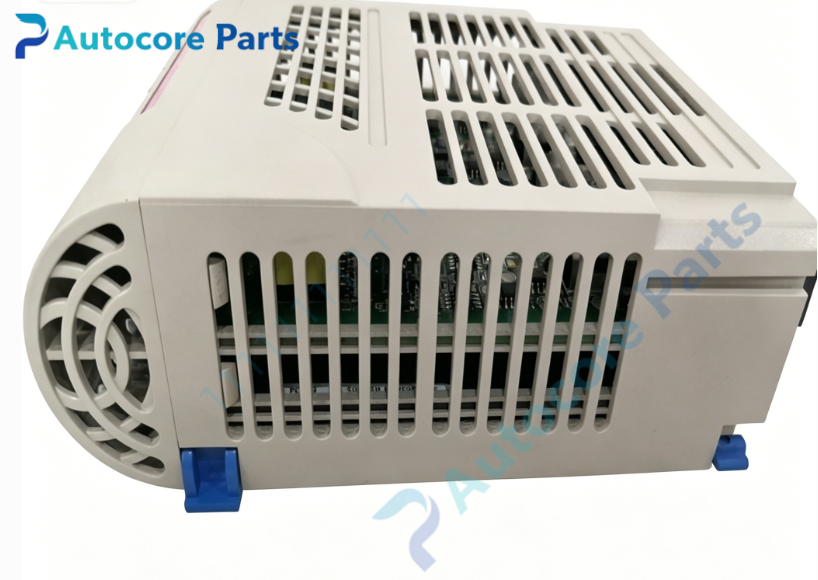

Emerson 14A0043G02 Ovation Remote I/O Interface Module

Technical Specifications

Model：14A0043G02

Brand：Emerson

Product Type：Remote I/O Interface Module

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant boiler and turbine control cabinet

Supply Voltage：24VDC

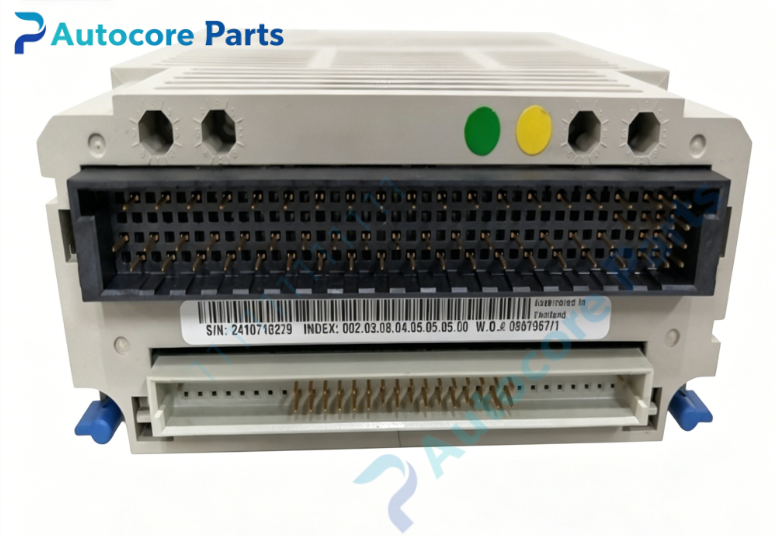

Interface：Ovation rack backplane connector, remote I/O high‑speed bus port, status debugging interface

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, running status, remote bus link, communication error and fault diagnostic indication

Built‑in Function：Long‑distance remote bus high‑speed data transmission, controller‑remote I/O rack real‑time data interaction, enhanced anti‑interference processing, communication error statistics, link fault alarm, hot‑swap support, data synchronization processing, bus signal quality evaluation

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.40kg

Product Brief:

14A0043G02 is the later‑revision remote I/O interface module of Emerson Ovation DCS system. It serves as communication bridge between main processor and distributed remote I/O racks. Compared with early‑generation remote interface boards, it optimizes long‑distance bus signal processing, strengthens anti‑interference performance under complex electromagnetic environment of thermal power plants, improves communication error statistics and signal quality evaluation function. It realizes real‑time transmission of process variables, alarm events and control instructions between controller and remote I/O stations. It supports hot‑swap, online module replacement without cutting off system power supply. Multiple LED indicators display power‑on, operation, bus link and fault status for convenient on‑site inspection and rapid fault location. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and controller firmware version before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
