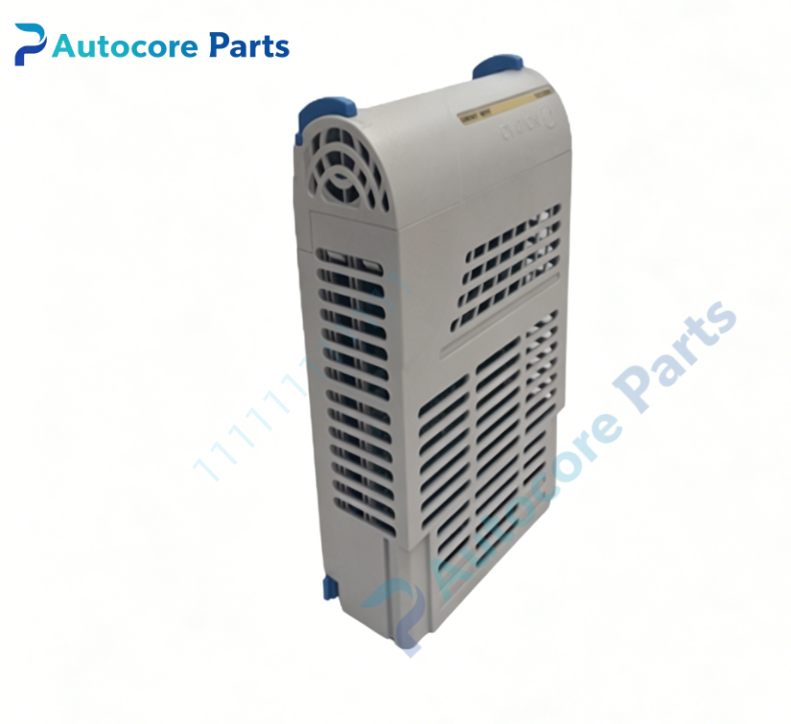

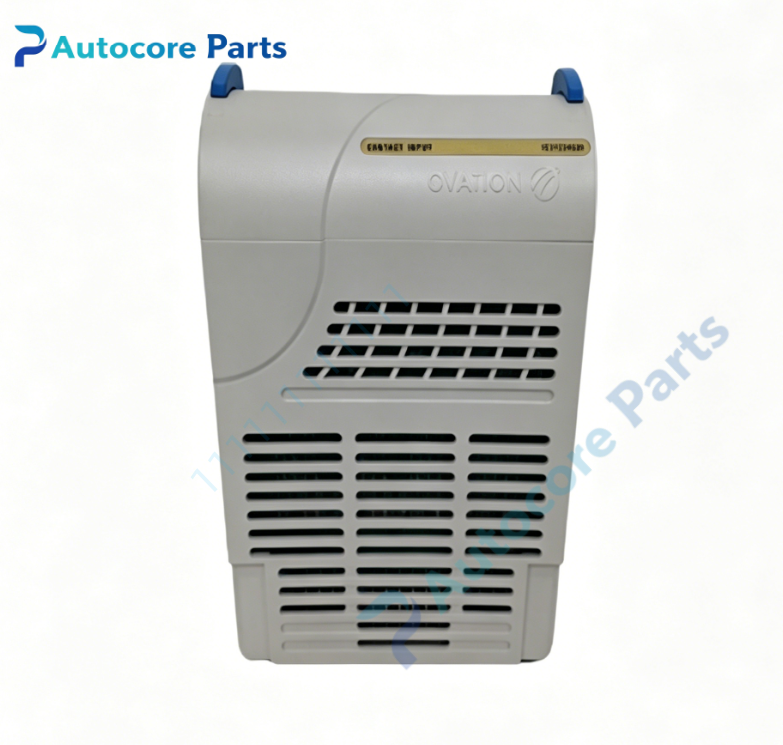

Emerson 15A0026H13 Ovation Safety Function Module

Technical Specifications

Model：15A0026H13

Brand：Emerson

Product Type：Safety Function Module

Applicable System：Emerson Ovation distributed control system, thermal power plant boiler and turbine SIS safety interlock control cabinet

Supply Voltage：24VDC

Interface：Ovation rack backplane connector, safety signal input‑output terminal port, maintenance debugging interface

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, run status, safety‑channel status, channel error, fault and system diagnostic indication

Built‑in Function：Safety‑interlock logic processing, safety‑signal acquisition and output, multi‑layer channel fault self‑diagnosis, optimized safety‑signal voting algorithm, hot‑swap support, safety‑loop real‑time monitoring, fault‑event storage, signal anti‑interference filtering, multi‑grade safety‑abnormality alarm, hardware watchdog monitoring, surge suppression processing

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.44kg

Product Brief:

15A0026H13 is the upgraded safety function module of Emerson Ovation SIS safety I/O series, iterated based on 15A0026H11. It completes safety‑signal collection, logic voting and interlock output for critical equipment such as boilers and turbines in thermal power plants. It optimizes hardware surge‑suppression circuit, strengthens anti‑interference capability under harsh electromagnetic field environment, improves fault‑diagnosis accuracy and fault‑event recording stability. The module monitors safety‑loop operating status in real‑time and triggers fast protective interlock under abnormal working conditions. It supports hot‑swap for online module replacement without cutting off system power supply. Multi‑group LED indicators intuitively display power‑on, operation, safety‑channel and fault information for convenient on‑site inspection and rapid fault location. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and controller firmware version before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
