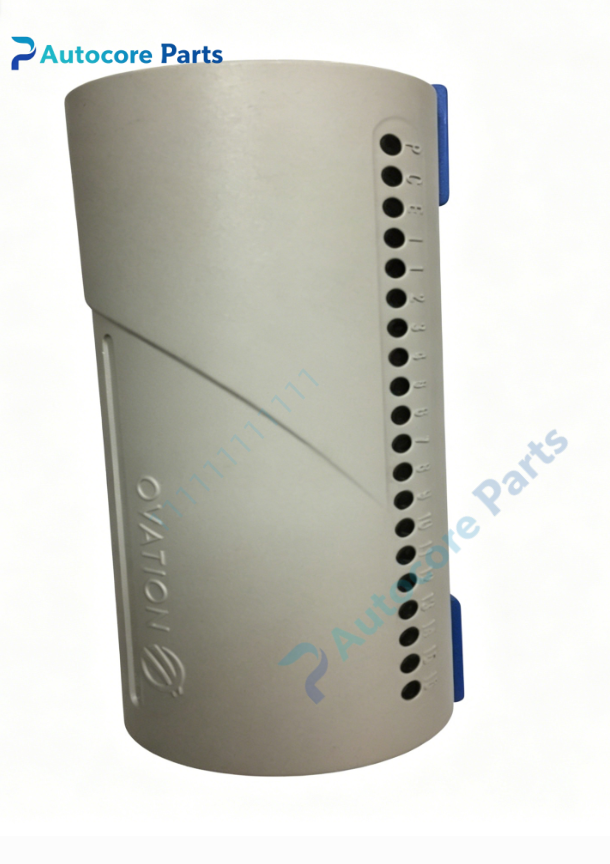

Emerson 16A0001H02 Ovation I/O Bus Terminator Module

Technical Specifications

Model:16A0001H02

Brand:Emerson

Product Type:I/O Bus Terminator Module

Applicable System:Emerson Ovation distributed control system, thermal power plant DCS I/O control cabinet

Installation:Ovation standard rack slot‑in installation

Common Revision:Multiple hardware revisions available

Status Indicator:On‑board LED for bus communication status indication

Built‑in Function:Backplane bus impedance matching, signal reflection suppression, bus noise filtering, communication anti‑interference processing, bus terminal status feedback

Working Temperature:0℃ ~ +60℃

Storage Temperature:-20℃ ~ +70℃

Protection Class:IP20

Weight:0.22kg

Product Brief:

16A0001H02 is Emerson Ovation dedicated I/O bus terminator module. It is installed at the tail end of Ovation I/O rack backplane bus, completes bus impedance matching, effectively suppresses signal reflection and crosstalk interference on the backplane bus, ensures reliable data transmission between controller and each I/O module. It supports real‑time bus terminal status feedback, LED indicator shows bus running condition for convenient on‑site inspection. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm rack bus structure and slot position before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
