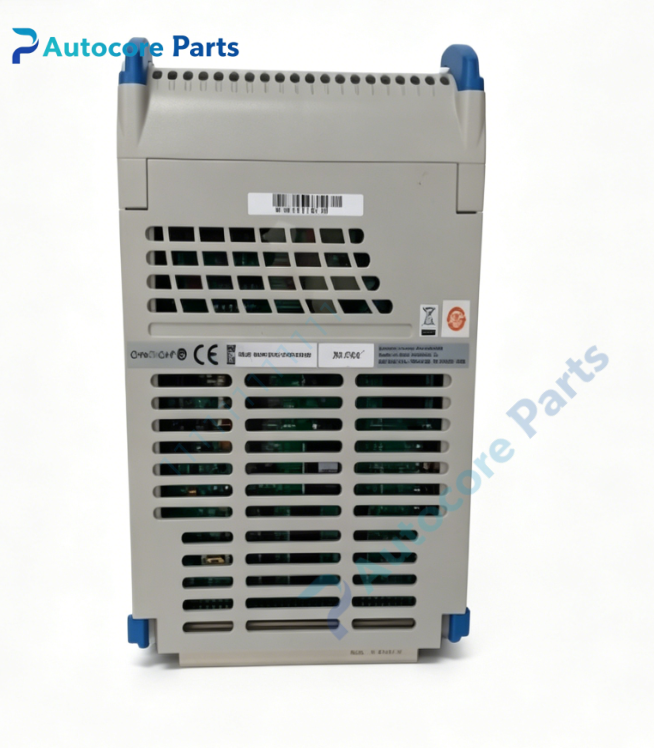

Emerson 1B30016H06 Ovation I/O Bus Terminator Module

Technical Specifications

Model:1B30016H06

Brand:Emerson

Product Type:I/O Bus Terminator Module

Applicable System:Emerson Ovation distributed control system, thermal power plant DCS control cabinet

Installation:Ovation standard rack slot‑in installation

Common Revision:Multiple hardware revisions available

Status Indicator:On‑board LED for power status, bus active,fault indication

Built‑in Function:I/O bus terminal impedance matching, restrain bus signal reflection, filter bus surge interference, bus communication status monitoring, fault detection, improve bus communication stability

Working Temperature:0℃ ~ +60℃

Storage Temperature:-20℃ ~ +70℃

Protection Class:IP20

Weight:0.45kg

Product Brief:

1B30016H06 is Emerson Ovation dedicated I/O bus terminator module. It is installed at the end of Ovation I/O branch bus, providing accurate terminal impedance matching for the I/O communication bus. It effectively suppresses signal reflection and oscillation generated on long‑distance bus lines, filters surge interference on the bus, and ensures reliable data transmission between controller and each I/O module. On‑board LED indicators display power, bus running and fault status for convenient on‑site inspection. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm bus branch layout before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
