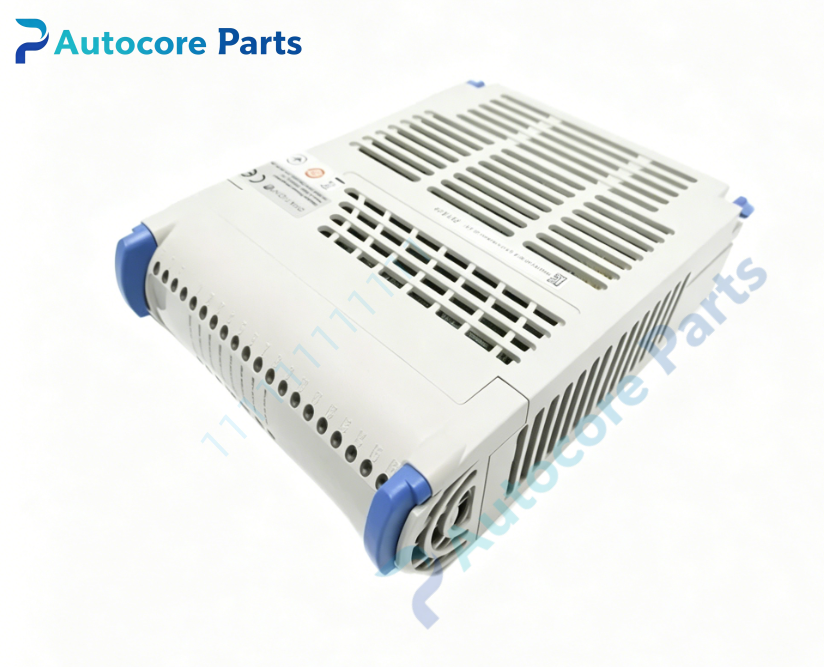

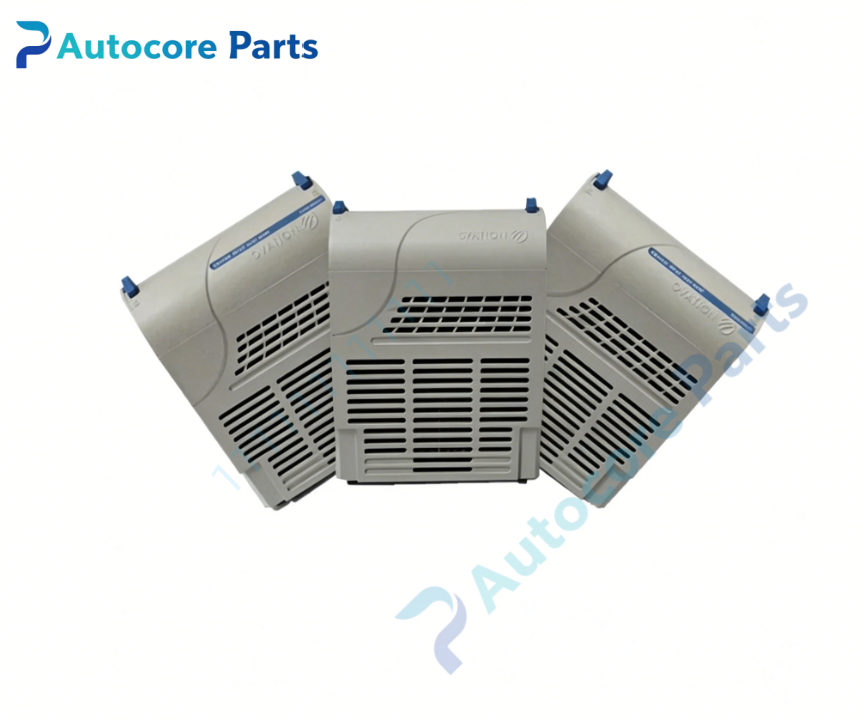

Emerson 1C31025G03 Ovation 8‑Channel Analog Input Module

Technical Specifications

Model:1C31025G03

Brand:Emerson

Product Type:8‑Channel Analog Input Module

Applicable System:Emerson Ovation distributed control system, thermal power plant DCS control cabinet

Channel quantity:8 analog input channels

Signal type:0‑5V voltage signal

Resolution:16‑bit high‑precision A/D conversion

Installation:Plug‑in installation for matched Ovation I/O base

Common Revision:Multiple hardware revisions available

Status Indicator:On‑board LED for power status, channel active, channel fault indication

Built‑in Function:Field analog voltage signal acquisition, analog‑to‑digital conversion, signal filtering processing, channel fault diagnosis, over‑voltage protection, support module hot‑swap, data upload to Ovation controller

Working Temperature:0℃ ~ +60℃

Storage Temperature:-20℃ ~ +70℃

Protection Class:IP20

Weight:0.68kg

Product Brief:

1C31025G03 is Emerson Ovation 8‑channel analog input electronic module. It is plugged onto the matched I/O base unit, mainly used for collecting 0‑5V analog voltage signals from field transmitters and instruments. It adopts 16‑bit high‑precision A/D chip to complete analog‑digital conversion, transmits processed digital data to Ovation controller via I/O bus. Each input channel is equipped with over‑voltage protection and signal filtering function, with independent channel fault diagnosis, convenient for locating abnormal field signals. The module supports hot‑swap operation, can be replaced online without system shutdown, which is convenient for site maintenance. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm matched I/O base unit before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
