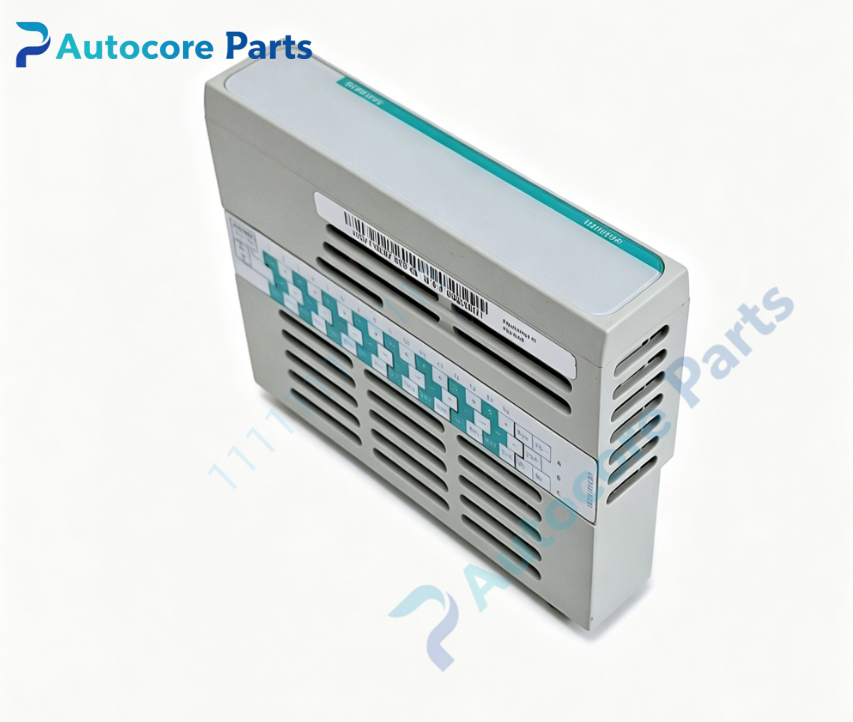

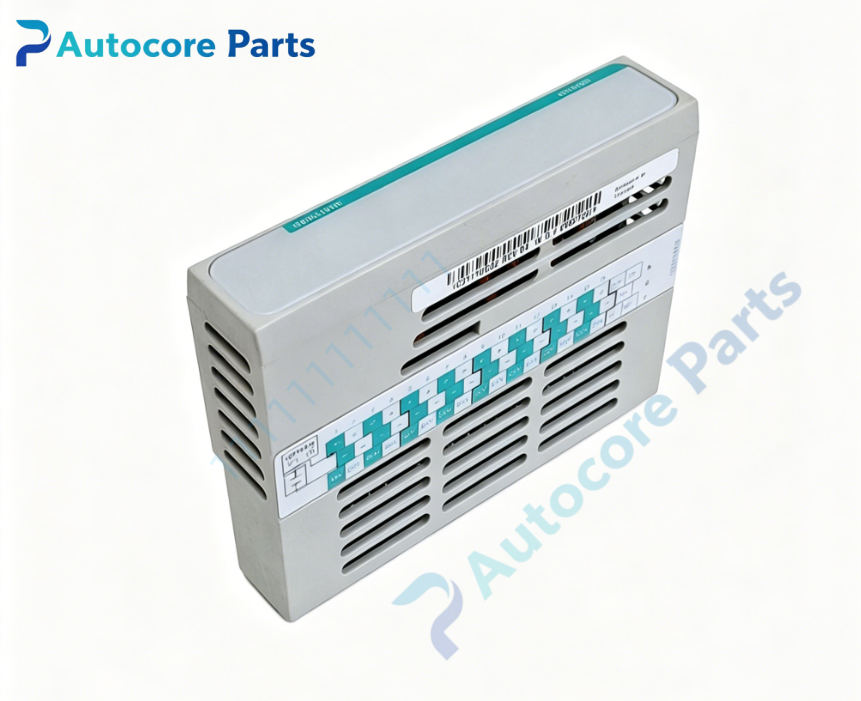

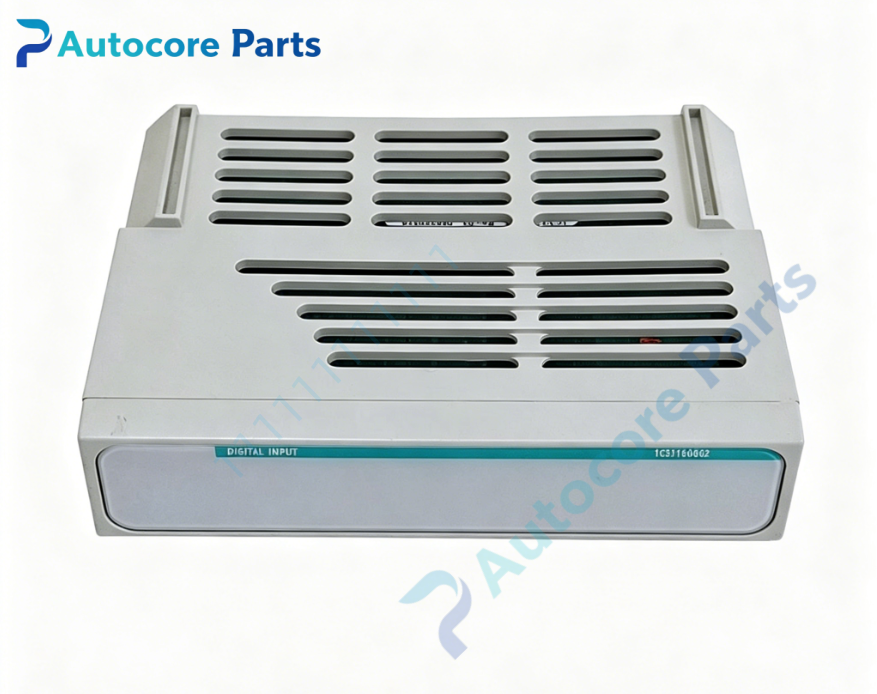

Emerson 1C31110G01 Ovation 16‑Channel SOE Digital Input Module

Technical Specifications

Model：1C31110G01

Brand：Emerson

Product Type：16‑Channel SOE Digital Input Module

Applicable System：Emerson Ovation distributed control system, thermal power plant DCS control cabinet

Channel quantity：16 digital input channels

Signal type：24VDC field switch‑contact signal

SOE Time‑stamp accuracy：1ms event time‑stamp resolution

Isolation：1500V RMS galvanic isolation between field side and system side

Response time：＜1ms fast signal response

Installation：Plug‑in installation for matched Ovation I/O base

Common Revision：G01 hardware revised version

Status Indicator：On‑board LED for power status, channel active, channel fault indication

Built‑in Function：Field 24VDC switch‑contact signal acquisition, high‑precision SOE event time‑stamp recording, signal‑conditioning processing, channel open‑circuit/short‑circuit fault diagnosis, surge‑voltage suppression, electrical isolation protection, support module hot‑swap, upload status & event data to Ovation controller

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Weight：0.70kg

Product Brief:

1C31110G01 is Emerson Ovation 16‑channel SOE digital input electronic module, specially designed for sequence‑of‑event recording function. It is plugged onto matched I/O base unit, mainly used for collecting 24VDC switch‑contact status signals from field relays, circuit‑breaker auxiliary contacts and limit switches. The module provides 1ms high‑precision event time‑stamp function, which can accurately record the occurrence time of field equipment state changes for post‑fault analysis. It adopts high‑speed signal‑conditioning circuit, realizes rapid signal response within 1ms, and transmits field‑device on‑off status and SOE event data to Ovation controller via I/O bus. 1500V RMS isolation is arranged between field‑side loop and system side, effectively restraining common‑mode interference and surge impact from field equipment. Each channel supports independent fault diagnosis for open‑circuit and short‑circuit, convenient for quickly locating wiring and field‑device faults. The module supports hot‑swap operation, can be replaced online without system shutdown for convenient site maintenance. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm matched I/O base unit before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
