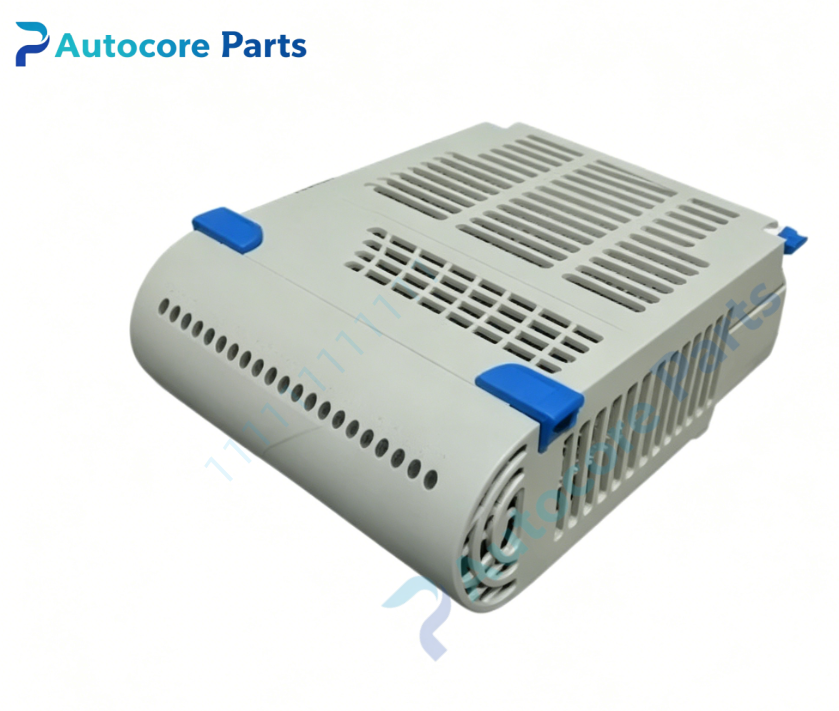

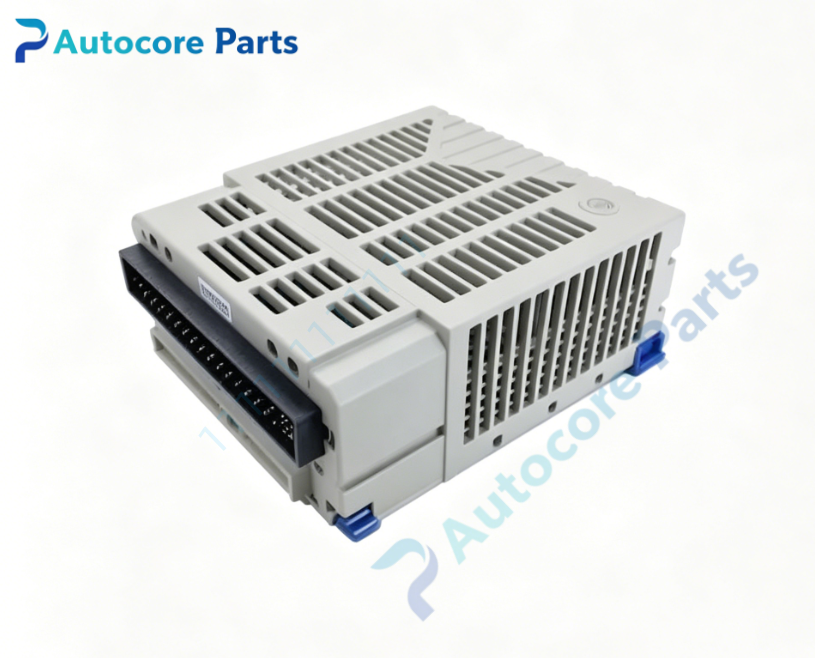

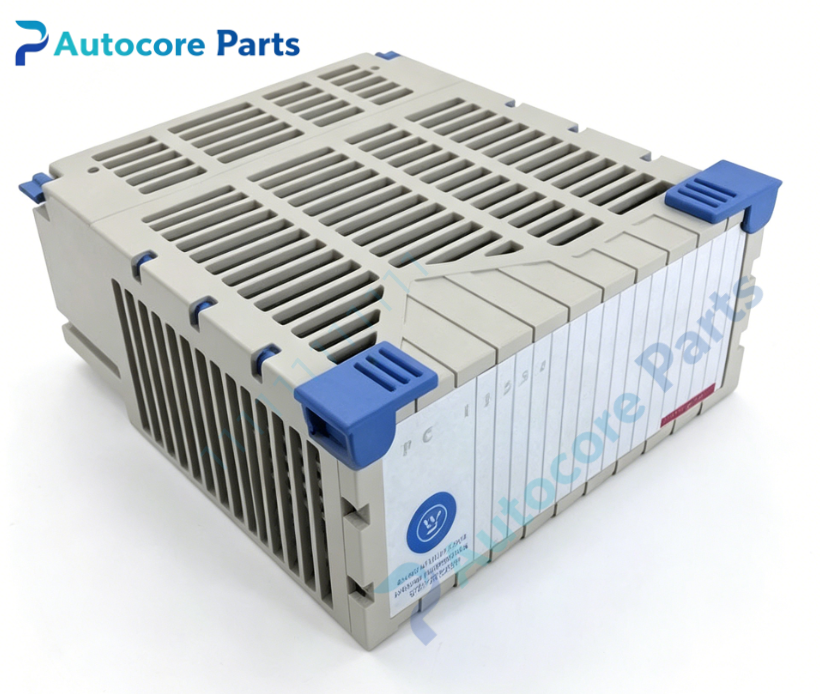

Emerson 1C31113G03 Ovation 8‑Channel ±100mV Low‑Voltage Analog Input Module

Technical Specifications

Model：1C31113G03

Brand：Emerson

Product Type：8‑Channel ±100mV Low‑Voltage Analog Input Module

Applicable System：Emerson Ovation distributed control system, thermal power plant DCS control cabinet

Channel quantity：8 analog differential input channels

Signal type：±100 mV millivolt weak voltage signal

Resolution：13‑bit A/D conversion

Accuracy：±0.12%FS typical measurement accuracy

Isolation：1000VAC galvanic isolation between field side and system side

Installation：Plug‑in installation for matched Ovation I/O base

Common Revision：G03 hardware revised version

Status Indicator：On‑board LED for power status, channel active, channel fault indication

Built‑in Function：Field millivolt sensor signal acquisition, analog‑to‑digital conversion, digital signal filtering processing, channel fault diagnosis, over‑voltage protection, surge interference suppression, support module hot‑swap, upload process data to Ovation controller

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.68kg

Product Brief:

1C31113G03 is Emerson Ovation 8‑channel low‑voltage analog input electronic module, G03 hardware revision of 1C31113 series, optimized for ±100 mV millivolt sensor signal acquisition. It is plugged onto matched I/O base unit, mainly used for collecting ±100 mV signals from field thermocouples, strain‑gauges and low‑level transducers. It adopts 13‑bit A/D chip to complete analog‑digital conversion, transmits processed digital data to Ovation controller via I/O bus. Built‑in digital filtering algorithm stabilizes acquired data under complex electromagnetic environment. Each input channel is equipped with over‑voltage protection and signal filtering function, with independent channel fault diagnosis, convenient for locating abnormal field signals. 1000VAC isolation is arranged between field‑side loop and system side, effectively restraining common‑mode interference and surge impact. The module supports hot‑swap operation, can be replaced online without system shutdown for convenient site maintenance. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm matched I/O base unit before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
